9 amp Mechanical Interlock AC Contactor

9 amp 3 pole or 4 pole mechanical interlocking AC contactor for sale at factory price, with coil rated voltage from 24V AC to 380V AC 50Hz or 60Hz, 3NO/4NO + auxiliary contact 2NC, has simple structure and easy mounting to control an electrical power circuit.

SKU: CCHN-ACCON-09N

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Magnetic AC reversing contactor with a mechanical interlock can save electric energy and eliminate power frequency noise. This magnetic contactor drives the moving contact and the static contact to realize the purpose of connecting or breaking the circuit.

Specification

Model			CCHN-CJX2-09N
Rated Operational Current	380V	AC-3	9A
		AC-4	3.5A
	660V	AC-3	7A
		AC-4	1.5A
Conventional Heating Current			20A
Rated Insulation Voltage			690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V		2.2kW
	380V		4kW
	660V		5.5kW
Operational Frequency	Electric Life	AC-3	1200 times/h
		AC-4	300 times/h
	Mechanical Life		3600 times/h
Service Life	Electric Life (10⁴ Operations)	AC-3	100
		AC-4	20
	Mechanical Life (10⁴Operations)		1000
Matching Fusing Model			RT16-16
Average Power Consumption (20℃) @ 50Hz	Pick-up		76VA
	Holding		9.4VA
Contact Form (Optional)			3P (Additional 1NO Auxiliary Contact) or 4P
Rail Size			35mm
Ambient Temperature			-5℃~+40℃
Altittude			≤2000m
Class of Pollution			Class 3
Installation Category			Ⅲ

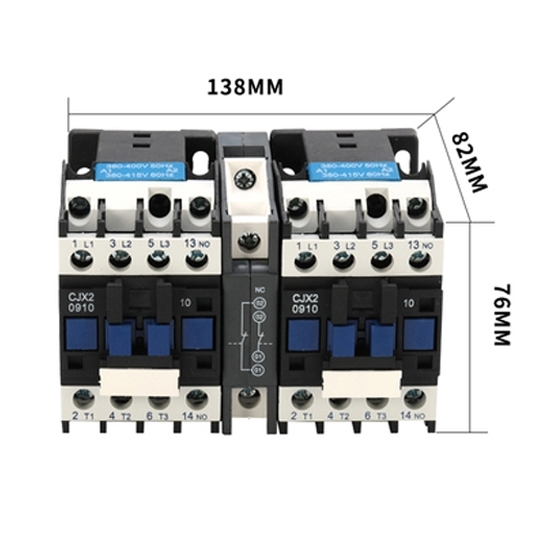

Dimensions			138 x 76 x 82mm
Weight			1kg

Tips: Installation conditions of mechanical interlock AC contactors

The altitude of the installation site does not exceed 2000m.
The upper limit of ambient air temperature should not exceed +40℃, and the lower limit should not be lower than -5℃.
The relative humidity of the air at the installation site does not exceed 50% when the maximum temperature is +40°C.
The installation incline to the vertical surface does not exceed ±5°.
The mechanical interlock AC contactor should be installed in a place where there is no significant shaking, impact and vibration.
