3/4" Automatic Water Level Control Valve

Note: This control valve cannot be used for drinking water.

The provided 3/4 inch control valve is a water-level float valve that can automatically drain and shut off water. Reliable stainless steel material, food-grade PP float, threaded connection, water inlet direction and bracket installation are optional.

Specifications

• Model: CCHN-y6-3/4
• Connection Method: 3/4" Thread G
• Nominal Diameter: DN20
• Connector Size: 25mm
• Valve Body Material: 304 Stainless Steel

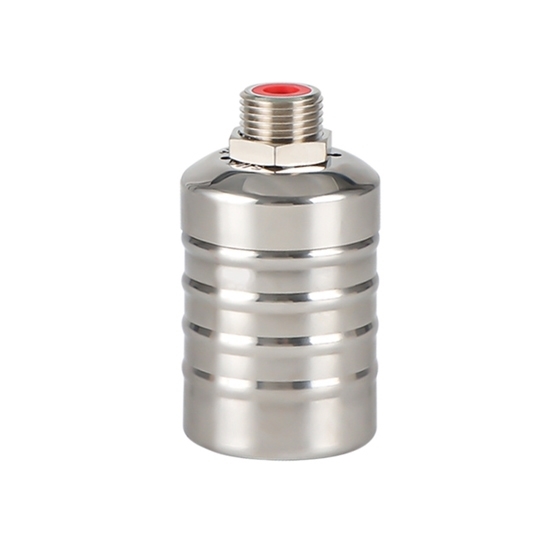

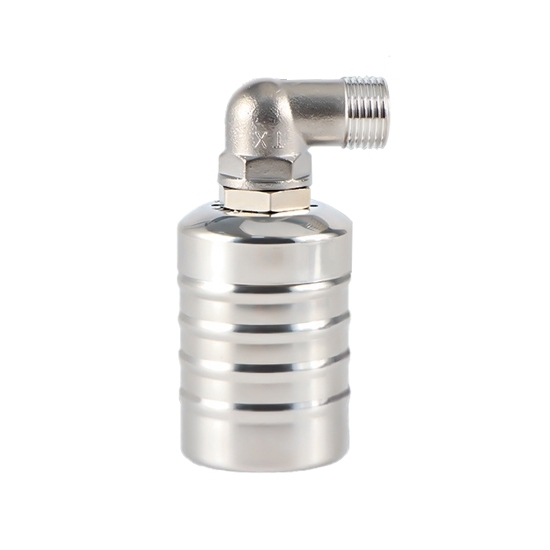

• Water Entrance Direction: Above or Side
• Fixed Bracket: Narrow Side or Wide Edge Mounting Bracket

• Applicable Temperature: 0~100°C
• Pressure Range: 0.2~8kg
• Screw Material: 304 Stainless Steel

Fixed Bracket Selection

Details

Applications

Tips: Is the float valve a water level control valve?

Yes, a float valve is a type of water level control valve. It is designed to regulate the level of water in a tank or reservoir by using a float mechanism. The float is typically buoyant and rises or falls with the water level. As the float moves, it is connected to a valve mechanism, which controls the flow of water into or out of the container.

In a typical application, when the water level drops below a certain point, the float descends, causing the valve to open and allow water to flow into the tank until the desired level is reached. Conversely, when the water level rises and the float reaches a predetermined height, the valve closes, stopping the inflow of water.

Float valves are commonly used in various contexts, including domestic water tanks, industrial processes, irrigation systems, and plumbing applications. They provide an automatic and reliable means of maintaining a consistent water level, preventing overflows or shortages. The float valve's mechanism is a simple yet effective solution for water level control in a wide range of settings.
