Crane Scale 2 ton/3 ton/5 ton/10 ton/15 ton to 20 ton

Crane scale with 5 digits red LED display has capacity from 2 ton/3 ton/5 ton/10 ton/15 ton to 20 ton, optional weighing units kilograms (kg) or pounds (lbs), rechargeable battry with 50 hours continuous operation time.

Specification

Features

1. Crane scale with special one-piece load cell has higher security.
2. Digital crane scale doesn't occupy the space and can realize effective monitoring and control.
3. It makes the metering work in the process of lifting, loading and unloading and carry out continuously, saving manpower, time and cost.
4. The operation and calibration of crane scale is simple.
5. OCS crane scale has multi-functions, high precision, strong anti-cheating ability and low maintenance cost.
6. Customizable monitoring mode: RS232 interface for long distance monitoring, wireless large screen and wireless indicator.

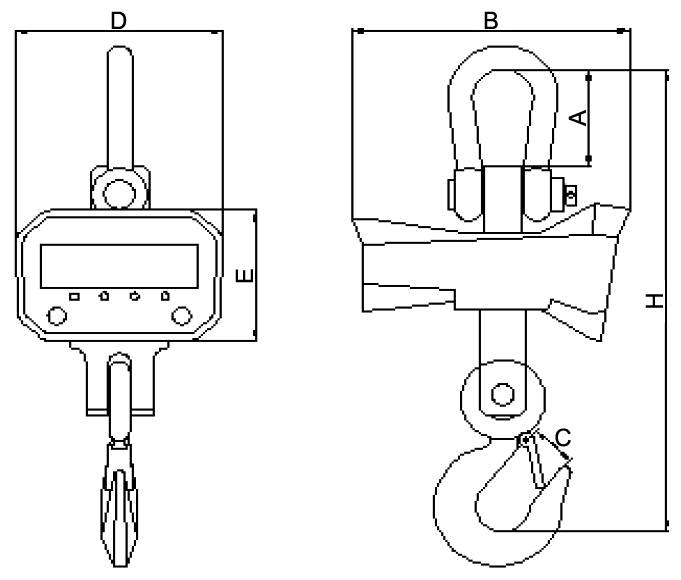

Crane Scale Dimension (unit: mm)

(Note: The width of the upper shackle is 110mm at max and 65mm at small.)

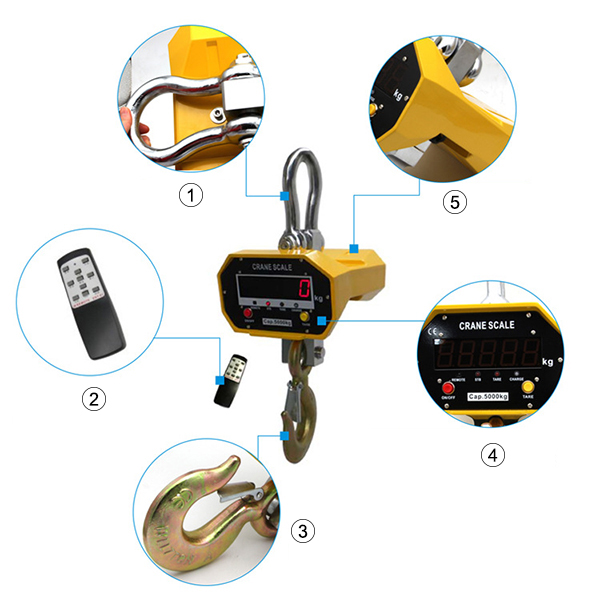

Details

1. Suspension Ring: Heavy-duty crane scales with large suspension ring, sturdy and durable.
2. Infrared Remote Control: Handheld remote control makes weighing easier and more convenient.
3. Hanging Scale Hooks: Equipped with high strength hooks, strong load capacity.
4. High-definition LED Display: Clear and bright, can be read clearly in far away places.
5. Aluminum Alloy Shell: The surface of the crane scale is sprayed with plastic, which makes it more stable and durable.

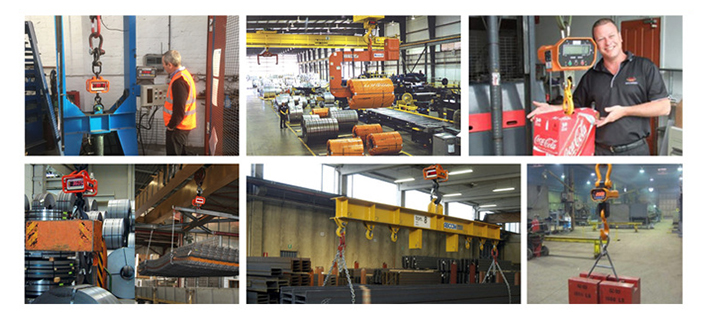

Application

Tips: Crane scale operating attentions and daily maintenance

Attentions in using crane scale:

1. Do not operate the crane scale in overload for a long time , which will easily damage the load cell of crane scale.
2. In order to keep measurement result correct, the measured object should be hung on the middle position of upper and lower hook.
3. Check whether the screws and plugs of the digital OCS crane scale are loose or dropped before power on.
4. When crane scale is working, in order to prevent faults occur, do not directly push the crane scale, but directly push the heavy objects, if the direction or position of the weight must be changed.
5. There shall be no seizure between the hooks and the axle pin, that is, the contact surface in the vertical direction should be at the center point, and should not be contacted on both sides.
6. It is strictly forbidden to use crane scale in outdoor lightning environment.
7. When the crane weight scale is working, keep no one is standing around it.
8. When the digital OCS crane scale is not in use, all the heavy objects should be unloaded.

Daily maintenance of the crane scale:

1. Regularly check whether the assembly of the crane scale is loose and biased.
2. Regularly check whether the shackles of the digital crane scale and the contact surface of the hook are seriously worn.
3. When the crane scale is not in use, put it in a dry and ventilated place.
