Current Transformer, 300/5A, 600/5A, 1000/5A to 1500/5A

Current transformere ratio can select 300/5A, 500/5A, 800/5A and 1500/5A, rated frequency 50Hz and 60Hz are avaliable, accuracy classes can choose 0.5S and 0.2S. Low price and manufacturer direct sale.

SKU: CCHN-CT-60II

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

AC current transformer accuracy classes can choose 0.5S, 0.2S, current ratio 300:5A, 600:5A, 800:5A and 1500:5A are optional, low cost and free shipping.

Note: The installation method of current transformer can be fixed by busbar and fixed by the bottom plate, suitable for installation in any direction. The primary conductor can be busbar or cable.

Specifications:

Model	CCHN-CT-60II
Weight	1kg
Current Ratio (A)	VA Secondary load/ Burden (VA)			Cross-core Turn Number
Current Ratio (A)	0.2	0.5S	0.2S	Cross-core Turn Number
1000/5	/	5	5	1
1200-1250/5	/	10	10	1
1500/5	/	10	10	1
2000/5	/	10	10	1
2500/5A	/	20	20	1
Rated Frequency	50/60Hz
Rated Test Voltage	3kV AC (1min)
Rated Short-Time Thermal Current (ith)	60 in
Rated Dynamic Current (idyn)	2.5 lth
Rated Voltage (Um)	0.66 kV AC
Continuous Overload (ld)	1.2 in
Operating Temperature	-10℃~50℃
Housing Self-Extinguishing Class	VO
Safety Factor	FS 5
Secondary Current	5A/ 1A
Bus Specification (mm)/Number	/

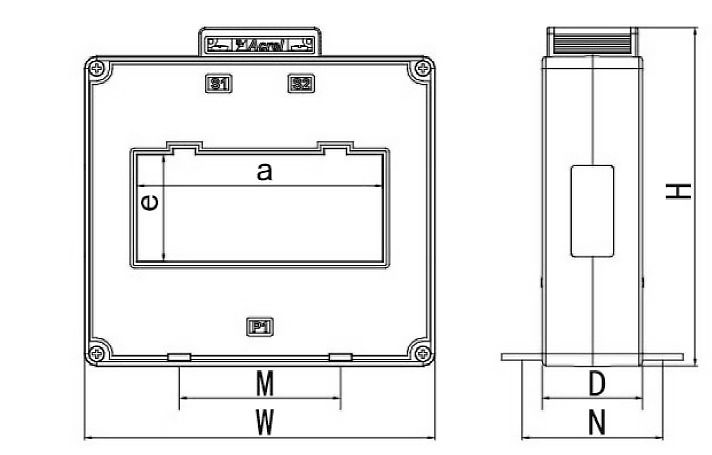

Dimension (unit: mm)

Model	Dimensions			Perforation size			Installation size
Model	W	H	D	a	e	φ	M	N
CCHN-CT-30I	62	78	45	32	11	22	40	57.5
CCHN-CT-3030I	85	102	50	32	11	28		57.5
CCHN-CT-40I	75	95	45	42	11	31	40	57.5
CCHN-CT-60I	102	130	45	61.5	21	45	42	57.5
CCHN-CT-60II	102	125	45	31	33	/	42	57.5
CCHN-CT-80I	118	140	45	82	11	52	60	57.5
CCHN-CT-100II	145	125	45	103	35	/	80	57.5

Tips: Current Transformer Working Principle

Working principle of the current transformer is based on the electromagnetic induction principle, circuit current often flows through its primary winding. When the current transformer works, its secondary circuit keeps closed, therefore, the impedance of series coil of measuring instrument and protection circuit are very small, the working state is close to the short circuit.

Current transformer consists of closed iron core and winding. It has few primary winding that are connected in series in the current circuit under measurement; however, it has many secondary winding, which are connected in series in the measuring instrument and protection circuits. The current transformer plays the role of converter and electrical isolation, it’s a sensor for measuring instrument, relay protection and other secondary equipment to obtain current information of primary circuit in power system. It converts the high current to a low current by ratio, its primary end is connected with the primary system, while the secondary end is connected with the measuring instrument and relay protection.
