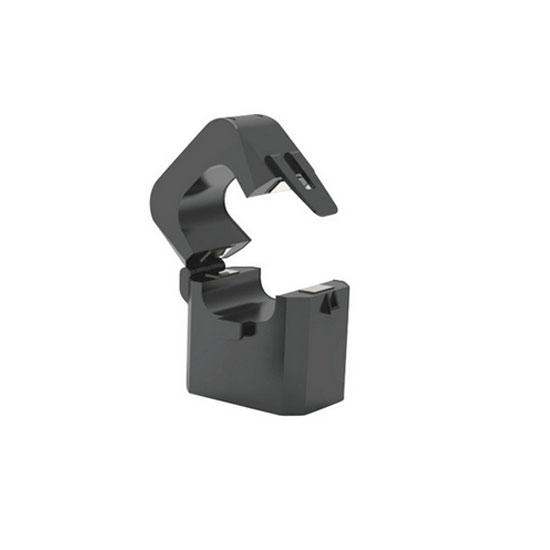

Split Core Current Transformer, 300/5A

300A/5A Split core current transformer on sale at low price, 0.5 grade accuracy class, easy to install, simply snap these current transformers around the wire being read.

Specification

• Model: CCHN-SCT-CTKD36-300
• Current Ratio: 300/5A
• Accuracy Class: 0.5
• Working Frequency: 50/60Hz
• Measuring Range: 10%ln- 130%ln
• Rated Output: 0.333V(AC) or 0-500mA
• Ratio Difference: ≤±1.0%
• Phase Difference: ≤ soil 10 points
• Dielectric Strength: 2.5kV/1mA/1min
• Insulation Resistance: DC500V/1000mΩ/min
• Shell: ABS, Flame retardant grade 94-V0
• Skeleton: PBT
• Iron Core: Silicon steel
• Internal Structure: Buckle
• Construction Plan: Cable ties fixed
• Operating Temperature: -25°C~75°C
• Ambient Humidity: ≤85%
• Wiring: 1.5m Red and black wire

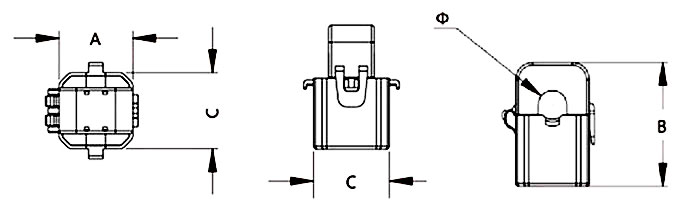

300A Split Core Current Transformer Dimension

Tips: The role of current transformer

The role of current transformer (Current transformer, CT) is to convert the larger value of the primary side of the current through a certain ratio to a smaller value of the second side of the current, used for protection, measurement and other purposes. For example, a current transformer with a ratio of 100/5 can convert the actual 100A current into 5A current.
