Split Core Current Transformer, 1500/5A

Split core current transformer 1500A primary input, 5A secondary output, precision 0.5 level, suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power system.

Specification

• Model: CCHN-SCT-DP510-1500

• Equipment Maximum: 0.66/0.72kVrms
• Accuracy Class: 0.5
• Working Frequency: 50/60Hz
• Primary Current: 1500A
• Secondary Output: 5A
• Ratio Difference: ≤±1.0%
• Phase Difference: ≤ soil 10 points
• Dielectric Strength: 2.5kV/1mA/1min
• Insulation Resistance: DC500V/1000mΩ/min
• Shell: ABS, Flame retardant grade 94-V0
• Skeleton: PBT
• Iron Core: Nickel steel or nanocrystal
• Internal Structure: Environmentally friendly epoxy resin casting
• Construction Plan: Screw fixing
• Operating Temperature: -25°C~75°C
• Ambient Humidity: ≤85%
• Wiring: Wiring terminals

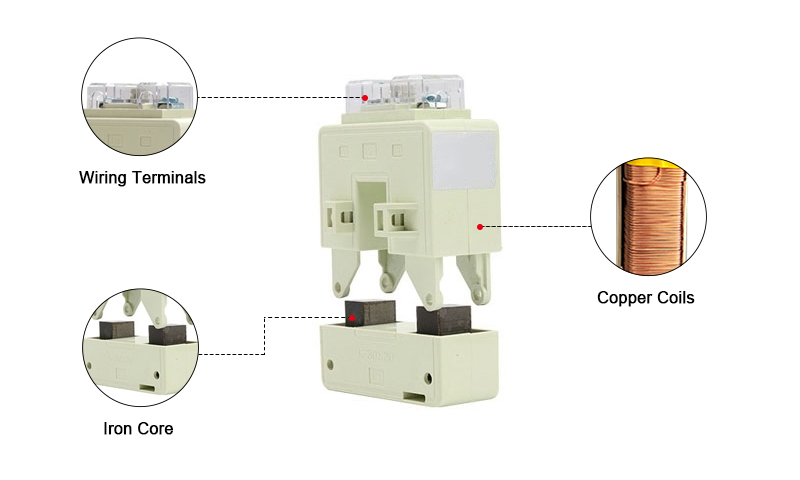

1500A Split Core Current Transformer Dimension

Details

Tips: 1500A Split core current transformer features

• Split core current transformer has a double threaded mounting for tightness and security, and is also portable.
• Two built-in mounting options for base plates and wires.
• Larger internal diameter to accommodate large diameter cables and bus bars.
• Various sizes to accommodate all current wire installations.
