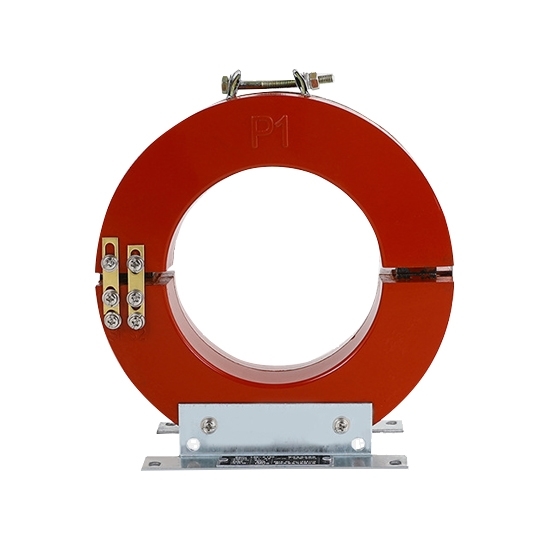

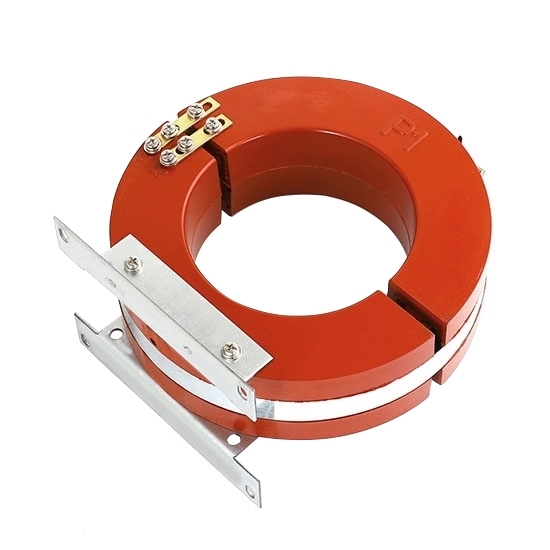

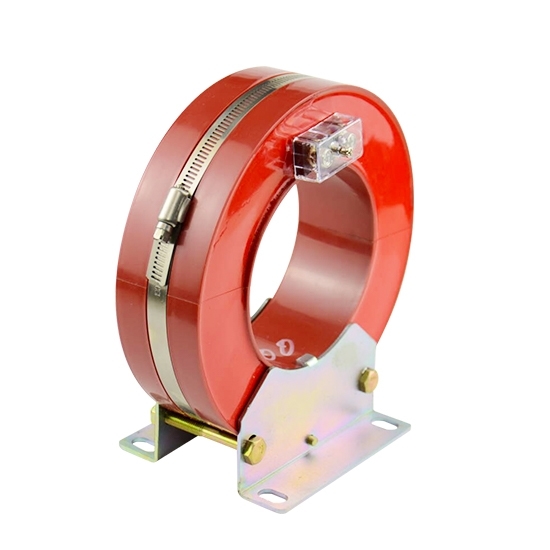

Core Balance Current Transformer, 300/1A, 400/1A, 600/1A

Core Balance Current Transformer, 300/1A, 400/1A, 600/1A

High quality core balance current transformers for sale! The CBCT transformation ratios, including 300/1A, 400/1A to 600/1A, to adapt to different current ranges. The ironless design ensures high performance and 5P10 accuracy, ensuring current transformers are accurate. This is an affordable option for a variety of power system applications, increasing system reliability and safety.

SKU: CCHN-CBCT-346

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN core balance current transformer has 300/1A-600/1A, 5P10 accuracy, can provide reliable current measurement, and is suitable for power system monitoring and protection. No matter the size of your project, we offer CBCT transformers in a variety of sizes to meet different needs while ensuring economy and performance.

Specification

Model	CCHN-LXK
Transformation Ratio	300/1A	400/1A	500/1A	600/1A
Accuracy Class	5P10
Rated Output	7.5VA	10VA	12.5VA	15VA
Rated Frequency	50Hz
Rated Secondary Current	1A
Pore Diameter Optional	80/120/140/160/200(mm)
Net Weight	4.5kg

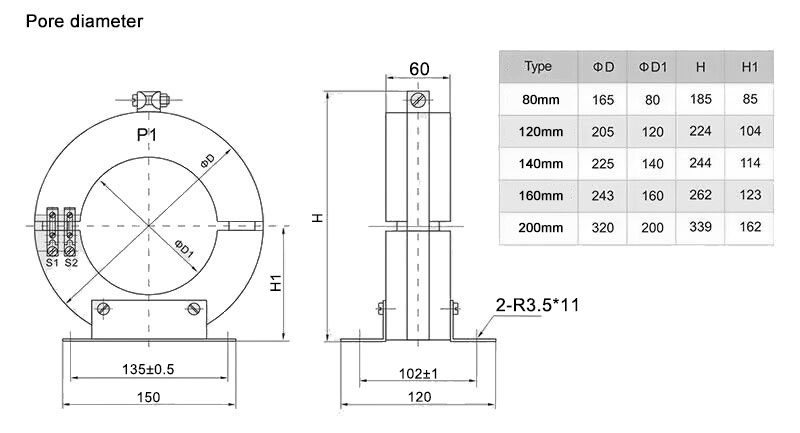

Overall Dimensions Drawing (unit: mm)

Features

Core balance current transformer features

Tips: Core Balance Current Transformer Working Principle

Electric Current Sensor: Main structure of electric current flow, one of the common electric current interactive sensor. However, the CBCT does not have an electric current mutual sensor core, so it is both an equilibrium support structure structure, and ct meter wire field is located on both sides of the main structure.
Magnetic Field Equilibrium: Under normal current conditions, the main and supporting structures are in production phase, but the magnetic field is reciprocal, and the working field is maintained in equilibrium. This is the core equilibrium feature of cb current transformer, which ensures mutual resistance between the magnetic fields.
Unbalanced Electric Current Control: As a result, if there is an unbalanced electric current in the system, if there is a ground fault or a leakage electric current, the magnetic field balance between the main structure and the supporting structure will be destroyed. CBCT sensory input arrives unbalanced, the output signal is one electric current mutual sensor output signal, there is a different normal electric current in the asserted system.
Failure: The CBCT output signal is normally used to protect the system, and the power system is disconnected from the system due to a failure. This helps ensure high power system safety and flexibility.
