12V/24V DC Cooling Fan, 50mm x 50mm x 15mm

12V DC 50mm cooling fan for sale, size of 50mm x 50mm x 15mm, DC brushless cooling fan runs quietly, bearing type oily or ball, rated current 0.06A/0.07A/0.1A/0.12A, DC cooling fans are rugged and resistant to high temperatures. DC brushless cooling fans operate quietly and efficiently, providing the perfect solution for noise-sensitive environments.

SKU: CCHN-CF-DC5015

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

12V/24V DC brushless cooling fan 50mm x 50mm x 15mm, IP67, fan speed of 4000rpm/4500rpm/5000rpm, fireproof and waterproof. CCHN brushless DC fans are a versatile and reliable cooling solution for a wide range of applications, from domestic appliances to industrial equipment.

12V/24V DC Cooling Fan Specifications:

Model

CCHN-DC5015SLL

CCHN-DC5015BLL

CCHN-DC5015SLM

CCHN-DC5015BLM

CCHN-DC5015SLH

CCHN-DC5015BLH

Rated Voltage

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

Bearing Type

Oily

Ball

Oily

Ball

Oily

Ball

Rated Current

0.06A

0.07A

0.06

0.07A

0.06A

0.1A

0.12A

0.1A

0.12A

Input Power

0.72W

1.44W

0.72W

1.44W

0.84W

1.44W

0.84W

1.44W

1.2W

2.88W

1.2W

2.88W

Fan Speed

4000±10%RPM

4500±10%RPM

5000±10%RPM

Air Flow

9.7CFM

10.9CFM

12.4CFM

Static Pressure

2.8mm-H2O

3.2mm-H2O

3.8mm-H3O

Noise

25.5dB-A

29dB-A

31dB-A

Lead Length

30cm (Default)

Dimension

50mm x 50mm x 15mm

Material

Plastic

Certificate

CE, UL

Fire Rating

UL94V-0

Operating Temperature

-10 ℃ ~ 70 ℃

Operating Humidity

35% ~ 85RH

Storage Temperature

-40 ℃ ~ 70 ℃

Storage Humidity

35% ~ 85RH

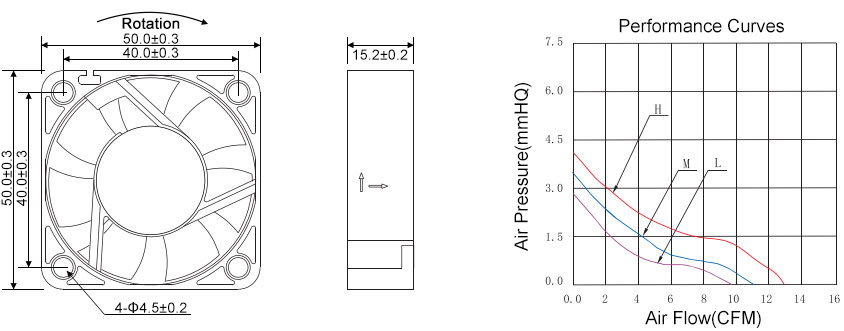

Dimensions and Curves (unit: mm)

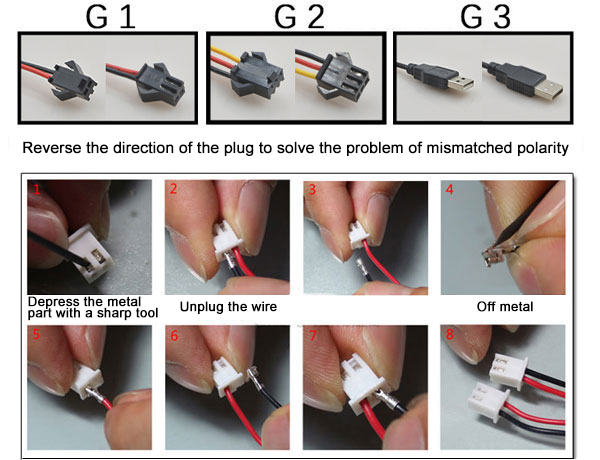

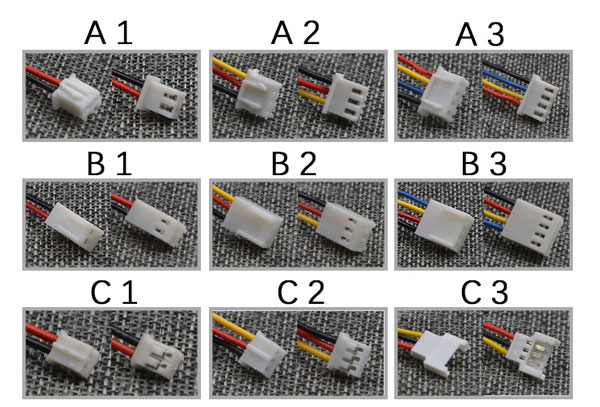

DC Cooling Fan Interface

Tips: DC cooling fan noise processing method
1. Select appropriate fan specifications and parameters according to the actual situation.
2. Regularly clean the dust and refuel the fans to reduce the conflict between the fans.
3. Put a sponge, rubber or cotton between the fan and the fixed end to reduce the noise caused by the feeling caused by the high speed rotation of the fan.
