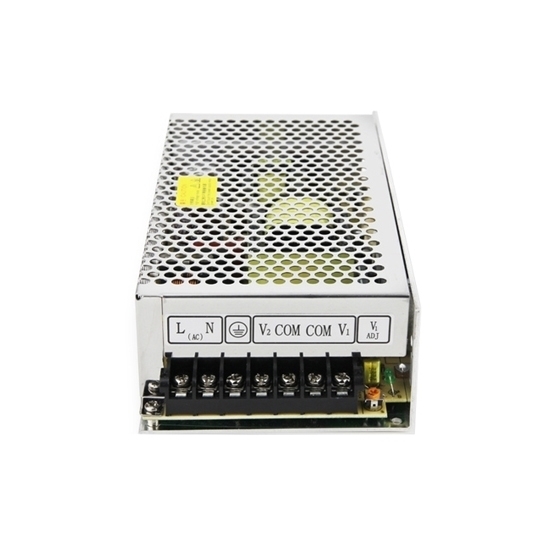

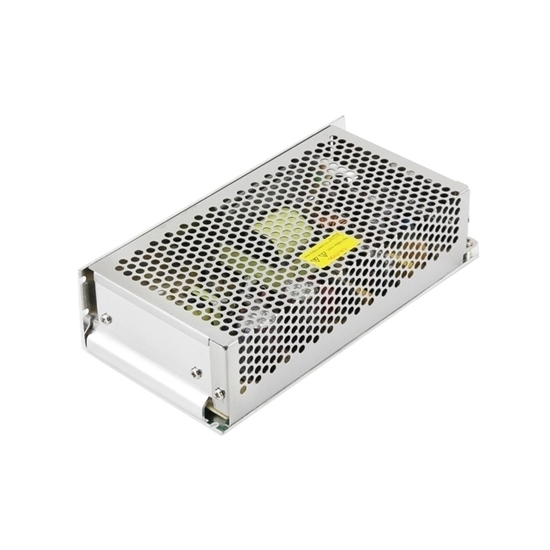

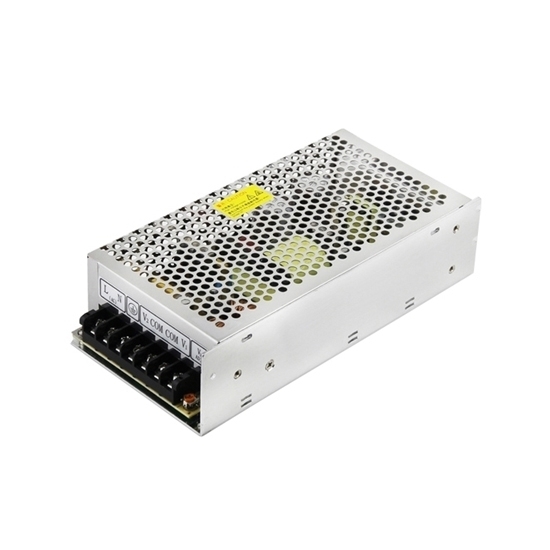

15V DC 5A 150W Switching Power Supply

Favorable price 150W SMPS power supply converts AC input to 15V DC at a rated current of 5A with short circuit, overload and overvoltage protections. ATO switching power supply is high reliability and high efficiency, which can be used for DC power supply for wide applications.

SKU: CCHN-SMPS-150-515

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN switching power supply incorporates a switching regulator in order to be highly efficient in the conversion of electrical power.

Features

Universal AC input / Full range AC input
Short circuit, overload and overvoltage protections
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
High reliability, low price and wide range of applications

Specification

Model		CCHN-HF150W-DL
Output	DC Voltage	±15V DC
	Rated Current	5A
	Current Range	0.5 ~ 5A
	Rated Power	150W
	Ripple & Noise (Max.)(Note 2)	150mVp-p
	Voltage Adjust Range	Rated output voltage ±5%
	Voltage Tolerance (Note 3)	±1.0%
	Line Regulation	±0.5%
	Load Regulation	±0.5%
	Setup, Rise, Holdup Time	200ms, 100ms, 30ms
Input	Voltage Range	170 ~ 264VAC (210 ~ 370VDC)
	Frequency Range	47~63Hz
	Efficiency (Typ.)	85%
	AC Current (Typ.)	1.3A/115V AC 0.65A/230V AC
	Inrush Current (Typ.)	Cold start: 40A/230V AC
	Leakage Current	<0.7mA/230V AC
Protection	Overload	105~130% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed.
Environment	Working Temperature	-20 ~ +50℃
	Working Humidity	20~90% RH non-condensing
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH non-condensing
	Temperature Coefficient	±0.03%/℃ (0~50℃)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Safety & EMC (Note 4)	Safety Standards	UL1012 Approved
	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
	EMC Emission	Compliance to FCC Part15 Jconduction Class B
Others	MTBF	≥408.3K hrs MIN. MIL-HDBK-217F (25℃)
	Dimension	1999840mm (LWH)
	Weight	0.68kg
Note	1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

Installation Dimension (Unit: mm)

Installation dimensiions of 150W switching power supply

Details

SMPS Power Supply Applications

Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge / Freezr, Coffemarker, etc.
Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: The method of improving the standby efficiency of switching power supply

Cut off the starting resistor
For the flyback power supply, the control chip is powered by the auxiliary winding after startup, and the voltage drop on the startup resistor is about 300V. Assuming that the starting resistance is 47kΩ, the power consumption is nearly 2W. To improve standby efficiency, the resistive channel must be cut off after startup. If the controller does not have a special start-up circuit, a capacitor can also be connected in series with the start-up resistor, and the loss after start-up can be gradually reduced to zero. The disadvantage is that the power supply cannot be restarted by itself, and the circuit can be restarted only after the input voltage is disconnected to discharge the capacitor.
lower clock frequency
The clock frequency can drop smoothly or suddenly. The smooth decline is that when the feedback amount exceeds a certain threshold, the linear decline of the clock frequency is realized through a specific module.
