10A 60V 600W Variable Linear DC Power Supply

10A 60V 600W Variable Linear DC Power Supply

High efficiency 0 to 10 amp, 0 to 60 volt variable linear DC power supply is switching mode with 600W DC output. Output voltage and current are continuously adjustable at nominal value, with constant voltage (CV) / constant current (CC) output precision. This adjustable and regulated linear DC power provides a stable power source for diverse applications.

SKU: CCHN-DCPS6010

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

An adjustable linear DC power supply is a regulated unit designed for electronics, providing variable voltage and current outputs. This power source is instrumental in testing and powering various electronic devices. Engineered with precision, it offers adjustable voltage and current settings, enabling users to fine-tune power parameters to suit specific requirements. The regulated nature ensures a stable output regardless of input fluctuations or load variations.

Specification

Model	CCHN-JK6010D
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	DC 0-60V
Output Current Range	0-10A
Output Power	600W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	100mV
Current Display Resolution	10mA
Efficiency	>65%
Voltage Regulation
Load Regulation (CV)	1×10^-5+8mV
Line Regulation (CV)	1×10^-5+3mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-5+3mA
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months

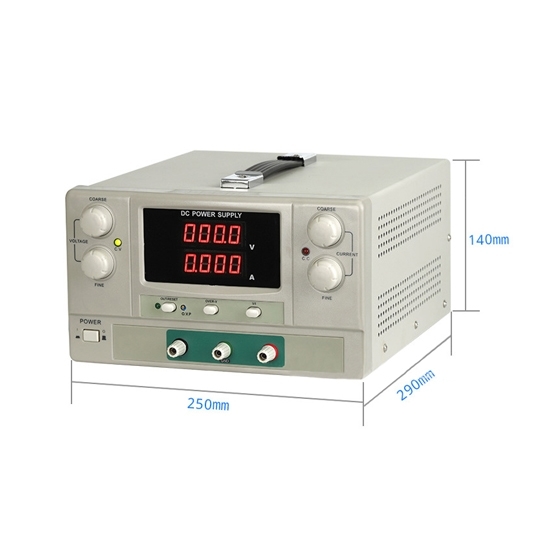

Size	303 (L) x 255 (W) x 155 (H) mm
Weight	12kg

Detail

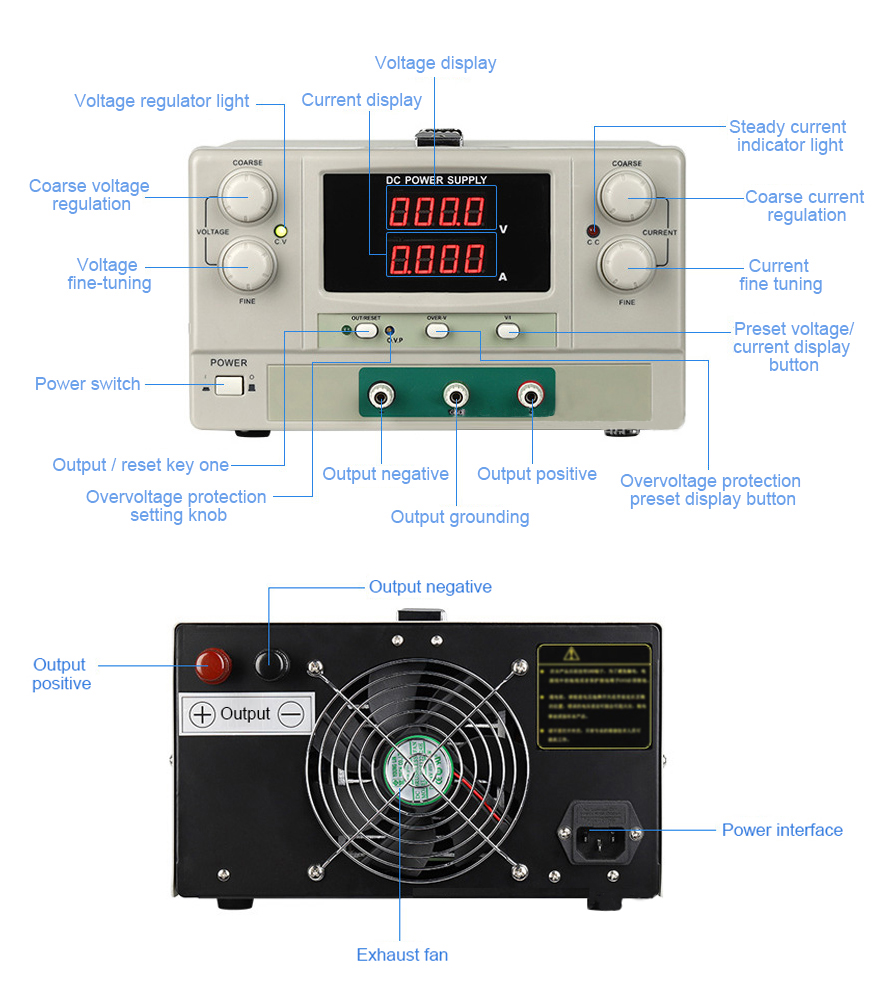

10A 20A 60V variable linear DC power supply detail

Tips: What is the typical lifespan of a variable linear DC power supply?

The lifespan of a variable linear DC power supply can vary based on factors such as quality, usage, and maintenance. Generally, well-manufactured power supplies can last for several years, often ranging from 10 to 20 years or more under normal operating conditions. However, factors like continuous heavy usage, exposure to extreme temperatures, and inadequate ventilation can contribute to a shorter lifespan. Regular maintenance, such as cleaning, proper calibration, and ensuring optimal operating conditions, can extend the life of the power supply. It's essential to follow manufacturer recommendations and adhere to usage guidelines to maximize the longevity of the equipment. In critical applications, redundancy and periodic replacement strategies may be employed to mitigate the risk of failure.
