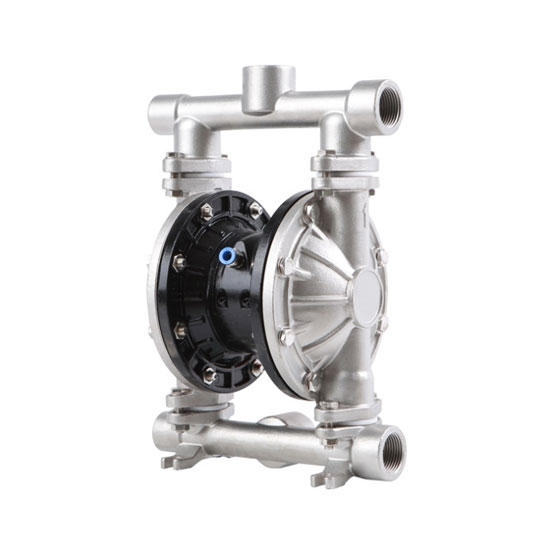

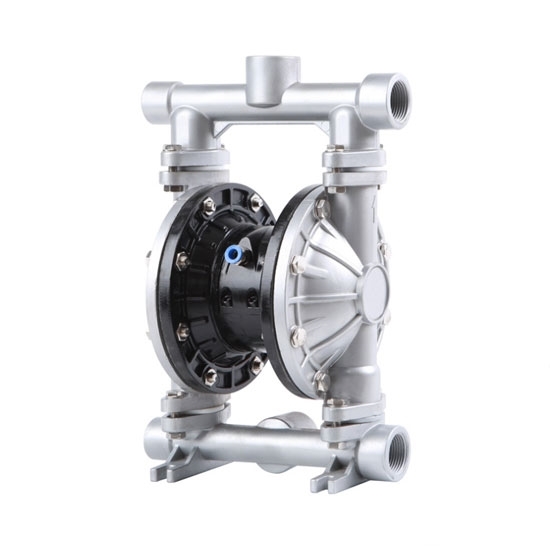

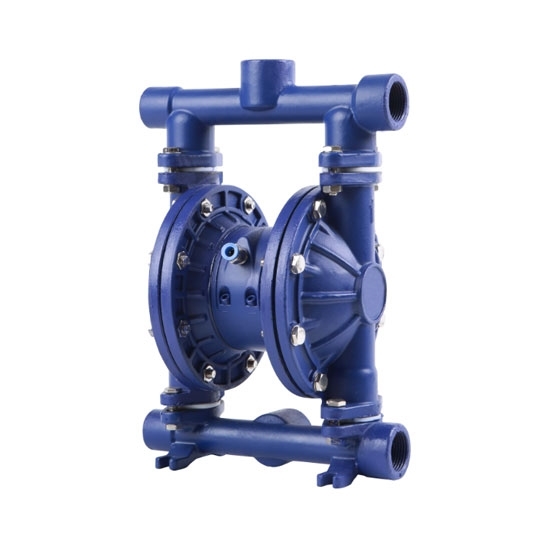

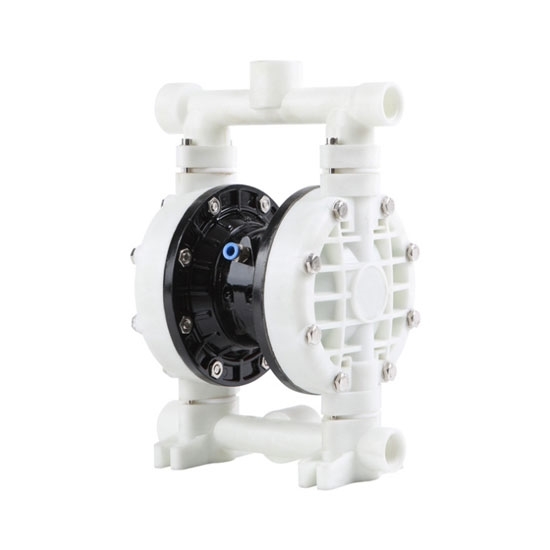

3/4" Air Operated Double Diaphragm Pump, 15 GPM

Air operated double diaphragm pump can be used for pumping high viscosity fluids and corrosive liquids, with 3/4 inch fluid outlet and inlet, 1/4 inch air inlet, 15 GPM max. flow, working pressure up to 100 PSI, body material of non-metallic, aluminum alloy, cast steel, stainless steel available.

SKU: CCHN-AODD-20

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Air powered double diaphragm pump is a high efficient pneumatic device that can be used for water purifier with BioFloc technology. This AODD pump also can help you clean not only sewage and residual oil from cruises or barges, but also sediment contaminants in shaft, tunnel and sewers.

Features

Pneumatic dual diaphragm pump can transport high temperature media up to 130 ℃.
Adopt pilot operated type air valve to eliminate the AODD pump downtime and extend its life span.
It is designed with multiport to help you install it easily.
Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
It can be externally connected to an electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model	CCHN-QBYK3-20
Max. Flow	15 GPM (57 LPM)
Max. Working Pressure	100 PSI (0.7 Mpa)
Fluid Inlet Size	3/4 inch (DN20) NPT
Fluid Outlet Size	3/4 inch (DN20) NPT
Air Inlet Size	1/4 inch NPT
Max. Suction Lift	Dry Suction 15 ft. (4.5m)
Max. Suction Lift	Wet Suction 25 ft. (7.6m)
Max. Permitted Grain	3/32 in. (2.5mm)
Max. Air Consumption	12 SCFM
Every Stroke Flow	0.04 gal. (0.15L)
Max. Reciprocating Speed	400 cpm
Body Structure Material	Aluminum Alloy/ Cast Iron/ Non-Metallic (Plastic)/ Stainless Steel
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	6kg/ 10kg/ 5kg/ 10kg

Dimensions (Unit: mm)

Dimension Drawing of 3/4 inch Air Operated Diaphragm Pump

Air Consumption Diagram

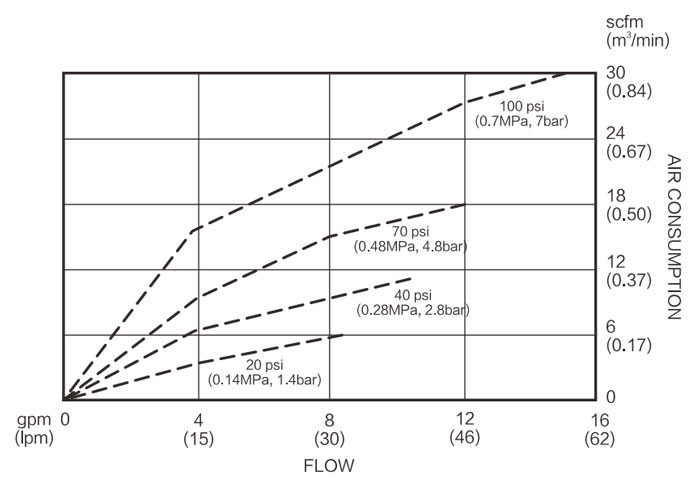

Air Consumption Diagram of 3/4 inch Air Operated Diaphragm Pump

Fluid Flow Diagram

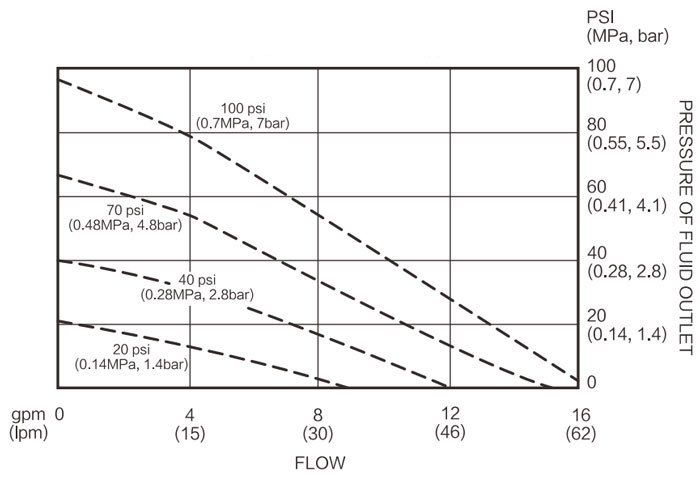

Fluid Flow Diagram of 3/4 inch Air Operated Diaphragm Pump

Details

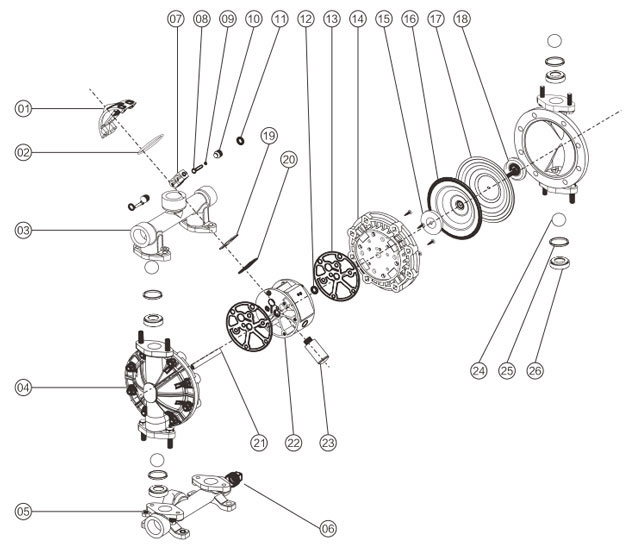

Details of 3/4 inch Air Operated Diaphragm Pump

1	Air valve cover	8	Auxiliary shaft	15	Inner clamp	22	Air valve chamber
2	Air valve cover O-ring	9	Auxiliary shaft O-ring	16	Poly rubber diaphragm	23	Muffler
3	Discharge outlet	10	Piston	17	PTFE diaphragm	24	Ball valve
4	Colum	11	Piston V-Ring	18	Outer clamp	25	Ball seat O-ring
5	Feed inlet	12	Pitman shaft O-ring	19	Sliding plate	25	Ball seat O-ring
6	Plug	13	Air valve chamber gasket	20	Sliding plate gasket	26	Ball seat
7	Small slider	14	Baffle	21	Pitman shaft	26	Ball seat

Applications

Applications of Air Operated Double Diaphragm Pump

Tips: What is an air operated double diaphragm pump?

Air operated double diaphragm pump is given mane as pneumatic membrane pump that is a kind of positive displacement pump. AODD pump is also a kind of new conveyor, driven by compressed air, which can pump up a variety of corrosive liquids, liquids with particles, high viscosity, volatile, flammable and highly toxic liquids. They are made of four kinds of body materials, no-metallic (polypropylene), cast steel, aluminum alloy and stainless steel. According to different liquid media, the AOD pumps use different diaphragm materials to meet different users' needs. It can be placed in various special occasions used to pump a variety of conventional pumps that can’t pump suction medium.
