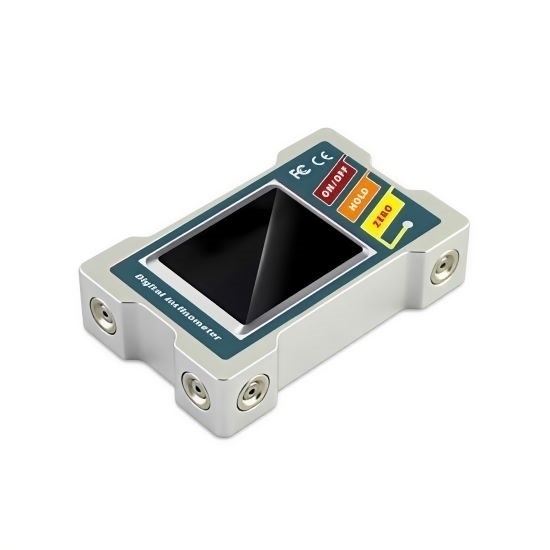

Industrial Digital Inclinometer, Single Axis ±180°, Dual Axis ±90°

Industrial Digital Inclinometer, Single Axis ±180°, Dual Axis ±90°

The industrial digital inclinometer offers high-precision angle and level measurement capabilities with two measurement modes. Featuring dual-axis compensation, advanced temperature drift compensation algorithms, it ensures long-term stability and repeatability. Ideal for various industrial applications. This inclinometer tilt angle meter built with an IP54 rating for reliable performance in challenging environments.

SKU: CCHN-DMI-410

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The industrial digital angle inclinometer is designed for precise angle measurement and control in diverse industrial settings. Utilizing micromachined sensing technology and dual-core measurement units, it provides exceptional accuracy and stability. With features like automatic cross-axis and temperature compensation, user calibration, and strong magnetic mounting, this clinometer is both versatile and reliable for demanding applications.

Specification

Model	CCHN-DMI-410
Measurement Axis	Single Axis	Dual Axis
Angle Measurement Range	±180°	±90°
Angle Accuracy	0.05°
Angle Resolution	0.01
mm/m Range	±999.9
mm/m Accuracy	0.9
mm/m Resolution	0.1
LCD Size	L40*W32mm
Operating Temperature	-10°C to +70°C
Operating Humidity	85%RH
Power Supply	3.7V rechargeable battery
Charging Time	3h
Battery Life	8 (±0.5)h
Vibration Resistance	10g @ 11ms, triple axis
Shock Resistance	10grms, 10–100Hz
Weight	≤140g
Waterproof Rating	IP54
Material	Metal aluminum
Dimensions	L83W19.2H53mm

Feature

Dual Measurement Modes: This digital inclinometer supports both angle (°) and mm/m measurements, providing flexibility for various application needs.
High Precision: Angle accuracy up to 0.05° and resolution of 0.01°.
Dual-Axis Compensation: Y-axis compensates X-axis for enhanced accuracy.
Magnetic Mounting: Featuring side or bottom strong magnetic adsorption, the horizontal/vertical angle inclinometer allows for quick, secure, and easy installation on metal surfaces.
Wide Operating Range: This robust inclinometer operates reliably in temperatures from -10°C to +70°C.
Data Storage & Display: The tilt gauge inclinometer includes a convenient data hold function and a clear night-vision four-color LCD screen for viewing data in various lighting conditions.
Robust Construction: Housed in metal aluminum with an IP54 waterproof rating, this industrial-grade inclinometer is built to withstand demanding conditions.
Rechargeable Battery: Powered by a 3.7V lithium battery with up to 8 hours of continuous operation.

Dimension (unit: mm)

industrial digital inclinometer dimension

Measuring Mode

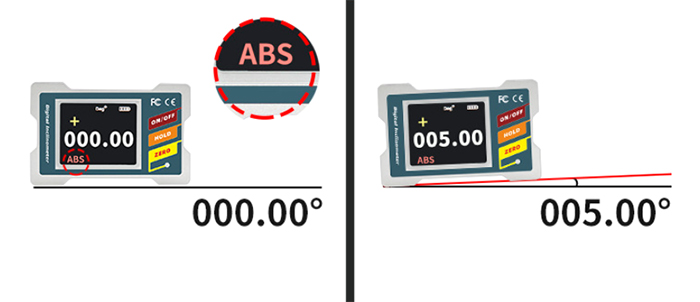

Default absolute measurement mode

industrial digital inclinometer absolute mode

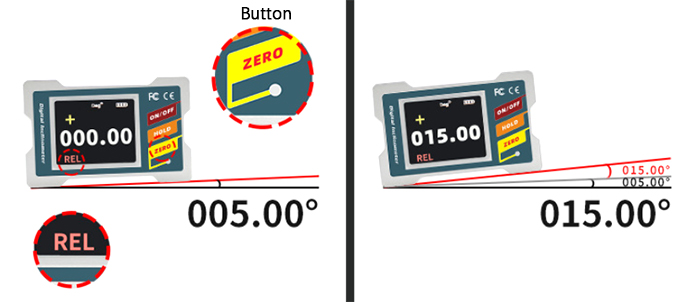

Click the "ZERO" button to switch to "REL" relative mode

industrial digital inclinometer relative mode

Application

industrial digital inclinometer application

Tips: What is the Industrial Digital Inclinometer's work principle?

The inclinometer tilt angle meter operates based on micromachined sensing technology with dual-core measurement units. During measurement, the Y-axis compensates for the X-axis, and through Refine's patented cross-compensation and temperature drift compensation algorithms, tilt meter leverages the absolute computational advantages of micro-electromechanical systems to ensure long-term stability and repeatability in measurements.
