Display Controller for Torque Sensor, RS485 Interface

Display Controller for Torque Sensor, RS485 Interface

ATO display controller with RS485 interface for sale, this transmitter is specially designed for torque sensor, optional transmit output of 4-20mA, 0-10V, -5V~+5V, and RS232 interface, analog input signal range from -15mV to 15 mV, working at 12~30V DC supply voltage.

SKU: CCHN-DPM-D056

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Favorable price display controller is a digital panel meter used for torque sensors. It is equipped with an RS485 interface for real-time measurement and monitoring and is available in transmit output of 4-20mA, 0-10V, -5V~+5V, and RS232 interface.

Specification

Model	CCHN-DPM-D056
Supply Voltage	12~30V DC,<5W
Supply Bridge Voltage	5V/100mA, Proportional Acquisition
Default Configuration	RS485 Interface (Modbus RTU Protocol)
Additional Transmission Output (Optional)	0~10 or -5~5V, 4-20mA, RS232 Interface
Comprehensive Accuracy	0.1%
Non-linearity	0.02%
Fastest Sampling Speed	3200 times/s
Analog Input Signal Range	-15~15mV
Display Graduation	999999 or 99.999
Temperature Drift	<20ppm
Relative Temperature	-20~70℃
Relative Humidity	<90%(No condensation)

Dimension (Unit: mm)

display controller for torque sensor dimension

Detail

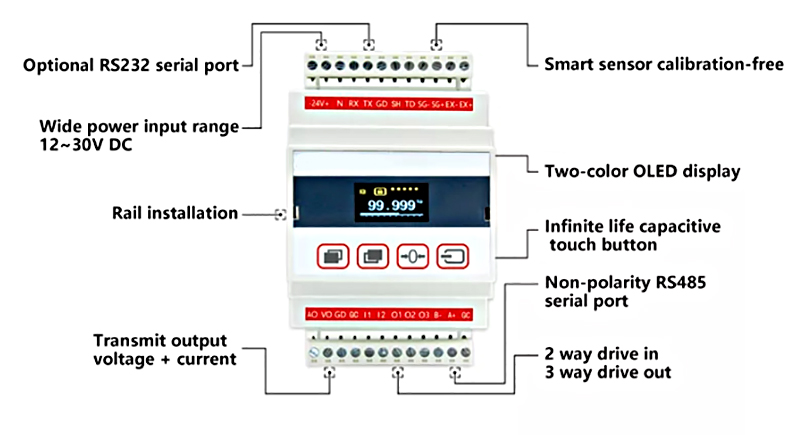

Display controller for torque sensor detail

Wiring Diagram

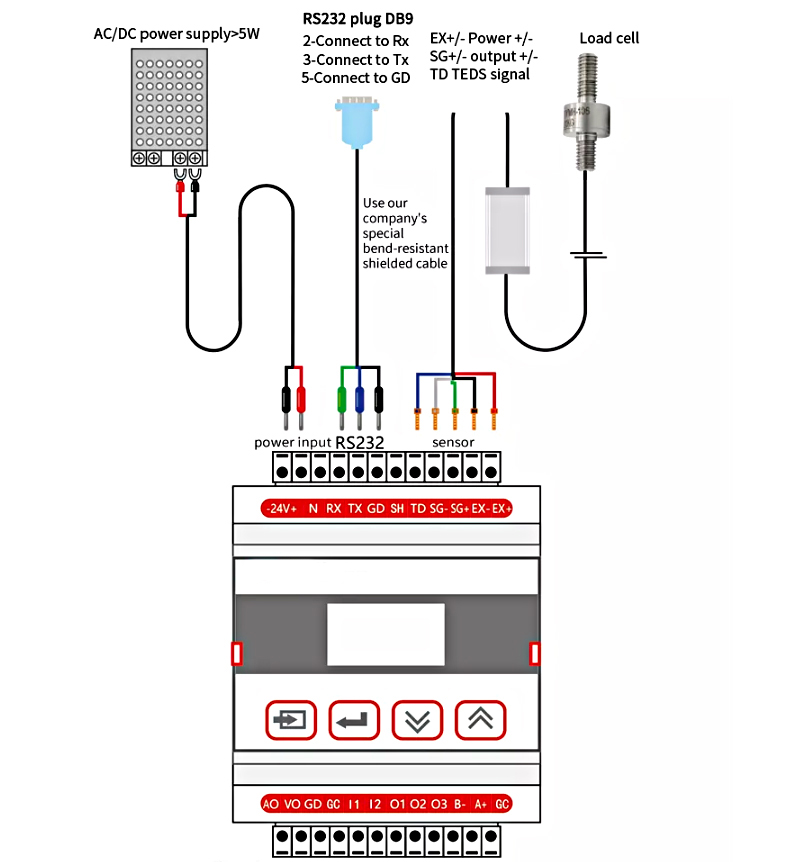

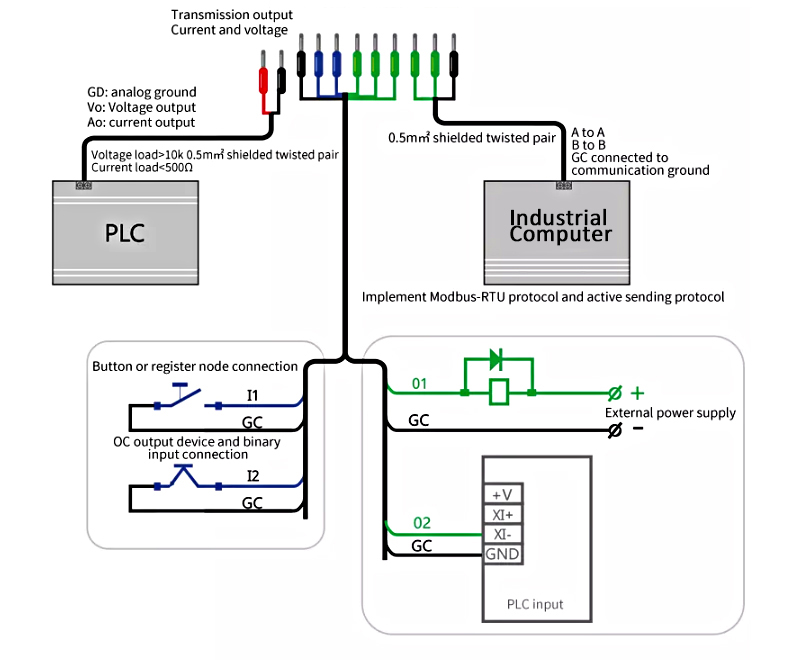

Display controller for torque sensor wiring

Application

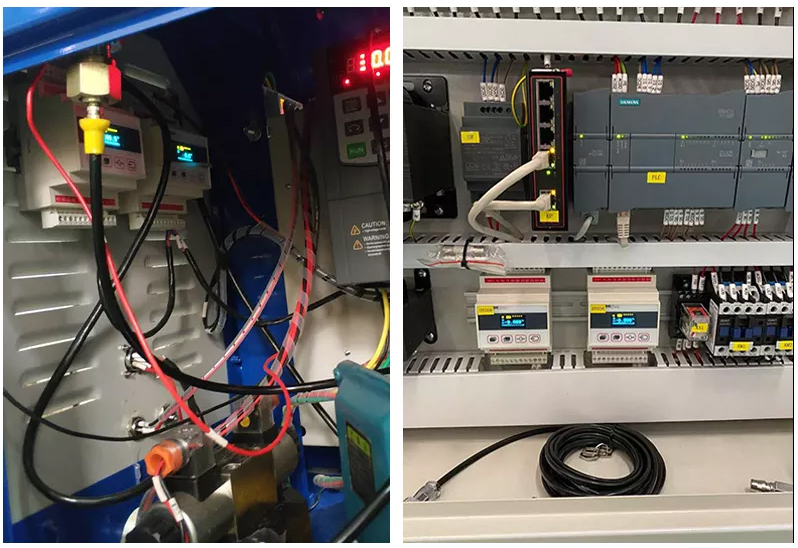

Display controller for torque sensor application

Tips: How to choose a display controller for torque sensor & load cell?

Choosing the right display controller for a torque sensor or load cell is crucial for accurate measurements and efficient system integration. Here are key factors to consider:

Sensor Compatibility: Ensure the controller supports your sensor’s signal output type (mV/V, 4-20mA, ±10V, or digital output like RS485/Modbus).
Accuracy & Resolution: Choose a high-resolution controller (e.g., 24-bit ADC) for precise readings.
Display & Interface: Look for a clear LCD/LED display and user-friendly interface for easy setup.
Output & Connectivity: Ensure it supports necessary outputs like analog signals, RS485/Modbus, or relay outputs for automation.
Sampling Rate: A high-speed sampling rate is needed for dynamic force measurement.
Environmental Protection: Consider IP-rated enclosures for harsh environments.
Mounting & Power Supply: Ensure it fits your installation needs and power availability.
