1 Axis Digital Readout, DRO for Mills, Lathes

Single DRO axis digital readout, resolution 0.05um, 0.1um, 0.2um, 0.5um, 1um, 2um, 5um, 10um, 20um or 50um. Input voltage DC 9V, 50Hz-60Hz, for milling machine and metal lathes, low cost and free shipping.

SKU: CCHN-DR-WE100

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

1 axis digtal readout is suitable for the single shaft displacement measurement system, grating measurement system to analyze the displacement measurement data and processing, to compensate the linear scale.
After purchasing a CCHN DRO digital readout, you can buy a linear scale for milling machine, lathes or table saw fence.

Specifications

Model				CCHN-DR-WE100
Axis number				1 Axis
Resolution				0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm, 20μm, 50μm
Input Signal				TTL, Frequency < 2MHZ, Current > 1mA
Input Voltage Range				DC 9V
Power				Less than 10W
Max Measuring Length				900mm
Frequency				50 Hz - 60 Hz
Anti Interference Capability				Over 2200V
Dimension				104mm x 77mm x 31.5mm

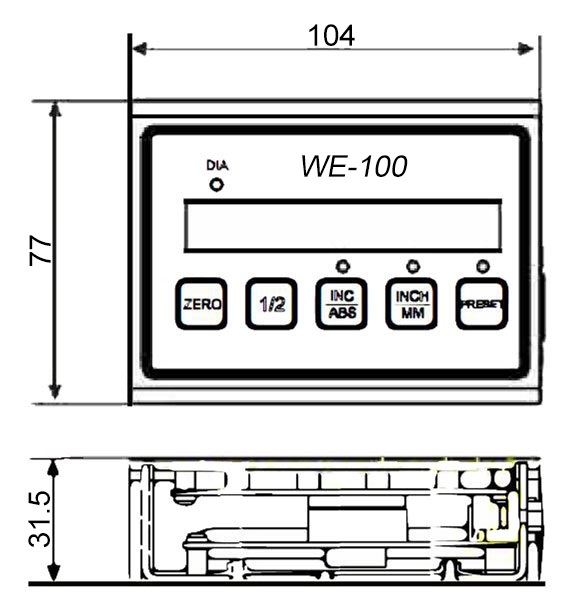

Dimension (unit: mm)
