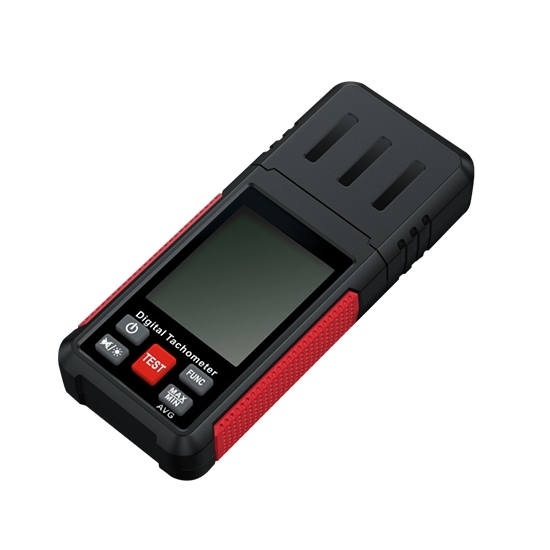

Industrial Laser Tachometer, Non Contact Type

Industrial Laser Tachometer, Non Contact Type

The industrial laser tachometer utilizes photoelectric speed sensing technology to achieve high-precision non-contact measurement. Its exceptionally sleek and portable design offers versatile functionality, a wide measurement range of 10-99999 rpm, effective operation in darkness, and a large-format LCD screen for outstanding readability.

SKU: CCHN-TM-IL

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy industrial laser tachometer for precise, non-contact RPM measurement with range of 10-99999 rpm. Key features include versatile reading modes, operation in darkness, and a highly readable display.

Specification

Model	CCHN-HT670
Display	5-Digit 40mm LCD Display
Accuracy	±(0.05%+1)
Range Selection	Auto Range
Effective Distance	1000 mm
Measurement Range	Optical Speed Measurement Method: 10–99999 rpm (revolutions per minute)
Measurement Range	Count Measurement Method: 1–99999 r (revolutions)
Resolution	Laser speed measurement: 0.1 rpm (10–99999 rpm) 1 rpm (10000 rpm and above)
Resolution	Counting Measurement: (1–99999 r)
Auto Shutdown	Automatically shuts off after approximately 15 minutes of inactivity.
Power Supply	3 x 1.5V AAA Batteries (Batteries are not included in the product package.)
Power Consumption	Approximately 50 mA
Size	142 x 58 x 27.5 mm
Weight	Approximately 118.5 g

Feature

High-Precision Non-Contact Measurement: The industrial laser tachometer employs advanced photoelectric speed sensing technology for measurements without physical contact, eliminating risk of equipment interference or damage. A brighter, smaller laser spot delivers exceptional measurement accuracy.
Intelligent Multi-Function Readings: The industrial laser RPM meter supports flexible selection of maximum, minimum, or average readings to adapt to varying scenario needs and meet diverse speed analysis requirements.
All-Weather Clear Display: Features an extra-large LCD screen for clear, intuitive readability and reliable operation in low-light or nighttime conditions.
Easy Operation & Smart Power: The portable laser tachometer is designed with a button-free interface for effortless use. Incorporates an auto-shutdown function after 15 minutes of inactivity to conserve power, with an on-screen battery icon signaling when replacement is needed.
Durable and Portable Design: Constructed with high-strength ABS housing for shock resistance and long-term durability. The sleek, ergonomic form ensures a comfortable grip and easy portability.

Detail

industrial laser tachometer detail

Size (unit: mm)

Industrial laser tachometer size

Tips: How to use the industrial laser tachometer？

Apply a reflective marker to the target surface
Begin by securely placing a reflective marker onto the object intend to measure.
Power on and initiate measurement mode
Switch on the industrial RPM meter, then press and hold the measurement button to activate the laser sensing function.
Align and capture rotational speed
Aim the portable laser tachometer at the reflective marker attached to the wind vane, ensuring the laser dot is precisely aligned with the marker. Once aligned, the tachometer will automatically detect and display the rotational speed value.
