Draw-wire Displacement Sensor, 1-1000mm

Draw-wire displacement sensor adopts a sturdy aluminum alloy housing. The displacement range of the sensor can be selected from 1mm to 1000mm, the operating temperature range is -20℃ to 80℃, and it also supports multiple output types and can be integrated with a variety of control systems.

SKU: CCHN-WDS-MPSXS

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The shell material of the draw-wire displacement sensor is aluminum alloy, the surface is anti-static interference and non-conductive, with high accuracy and good stability.

Features

Draw-wire displacement sensor has small error, stable output data, high precision, and can provide accurate and reliable displacement measurement.
The draw-wire displacement sensor has a long service life and can operate stably even in harsh environments to ensure long-term reliability.
It has strong anti-interference performance, among which aluminum foil can effectively resist high-frequency interference, copper core wire braided net can effectively prevent low-frequency interference, and double-layer shielding design further enhances the anti-interference ability and ensures signal stability.

Specification

Model	CCHN-WPS-XS-R	CCHN-WPS-XS-V1/V2	CCHN-WPS-XS-A2/A3	CCHN-WPS-XS-Pulse
Voltage (DC)	24V	18-24V	12-24V	8-30V
Output Signal	0-5/0-10kΩ	0-5/0-10V	4-20mA	A/B/Z
Working Stroke	1-1000mm
Linearity	0.1%~0.25%			±0.05%~0.06%
Repeatability	0.01%			0.0025
Ambient Temperature	-20~80℃
Traction Force	250±25g
Rope Diameter	0.7mm
Max Weight	≈300
Protection Rating	IP65
Remark	＞3600P

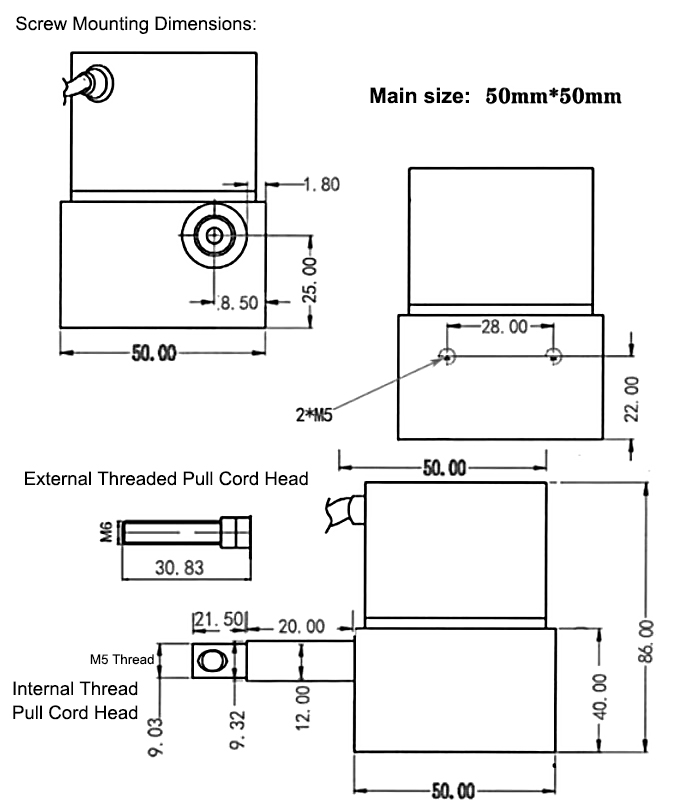

Dimension (mm)

Waterproof draw-wire displacement sensor dimension

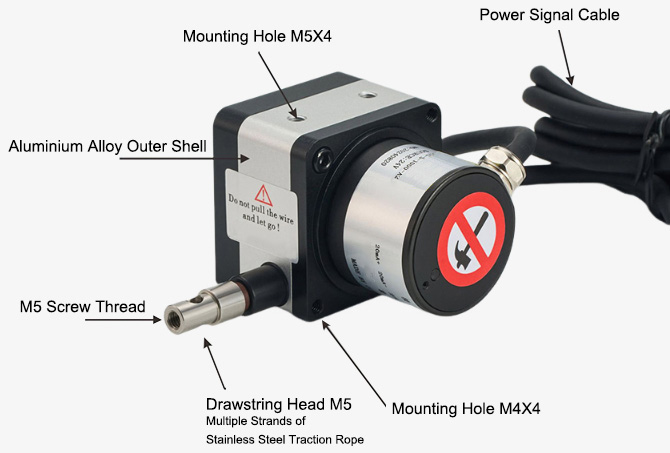

Details

Waterproof draw-wire displacement sensor detail

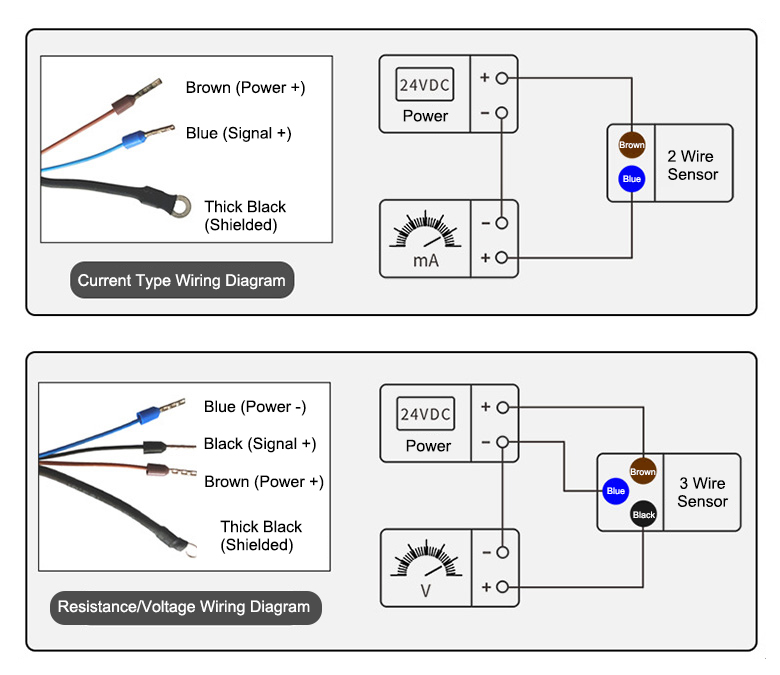

Wiring diagram

Waterproof draw-wire displacement sensor wiring

Applications

Waterproof draw-wire displacement sensor application

Tips: Precautions for using the draw-wire displacement sensor

Make the draw-wire vertical during installation and do not let the wire rub against the outlet.
Before the sensor is installed, do not pull out the traction rope and let it rebound automatically instantly. This may damage the sensor body and even endanger personal safety.
Please follow the wiring instructions for electrical connection. Make sure the wiring is correct before powering on.
The draw-wire displacement sensor is a precision instrument. Please do not knock it to ensure that the equipment and wire rope are clean and extend its service life.
Protect the wire rope from external damage.
Outdoor or in a harsh environment, please consult us for waterproof and dustproof outlets or protective housings.
