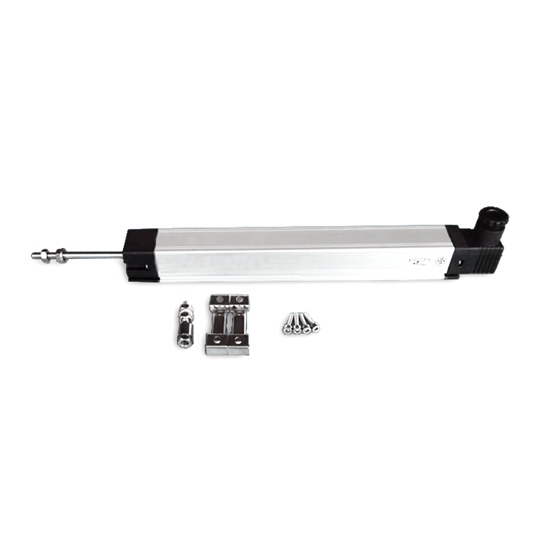

Linear Displacement Sensor 50-1250mm

Linear displacement sensor housing surface anodized, built-in conductive plastic measurement unit, anti-corrosion, no temperature drift, long service life, automatic electrical grounding, suitable for most common applications.

SKU: CCHN-DISS-R1250

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Linear displacement sensor has 3mm buffer stroke at both ends, with a standard plug and socket, tie rod match with ball has a 0.5mm automatic centering function.

Applications: General type linear displacement sensor is suitable for the position detection of various types of equipment. Such as: Injection molding machine, die-casting machine, rubber machine, shoe machine, EVA injection machine, bottle blowing machine, woodworking machine, coal washing machinery, hydraulic machinery, etc.
Specification:

Basics	Model	CCHN-KTC
	Size	33*33mm
	Weight	160-1100g
	Measuring range *	50-550mm	600-1000mm	1100-1250mm
Technical parameters	Effective stroke	50-550mm	600-1000mm	1100-1250mm
	Resistance	5.0kΩ	10.0kΩ	20.0kΩ
	Linearity	±0.05%FS
	Repeated accuracy	0.01mm
	Maximum operating speed	10m/s
	Operating current	≤2mA
	Operating voltage	DC 5V	DC 10V	DC 24V
	Output signal *	DC 0-5V	DC 0-10V	DC 0-5V, 0-10V, 4-20mA (optional)
	Operating temperature	-40℃～+135℃
	Protection class	IP67
	Service life	50,000,000 times

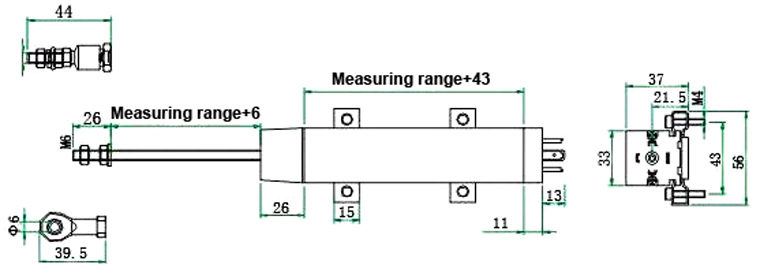

Dimensional drawing (unit: mm):
