Linear Position Sensor 10-300mm

Linear displacement sensor has two miniature hinges at both ends, built-in conductive plastic measurement unit, housing surface anodized, anti-corrosion, no temperature drift, especially suitable for the occasions with small installation space, swing motion, and sensor body can't be fixed.

SKU: CCHN-DISS-H300

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The linear displacement sensor has 2mm buffer stroke at both ends and direct cable connection, no need centering. The maximum allowable velocity is 5m/s when mounted vertically and 2m/s when mounted horizontally.

Applications: Linear position sensor has two miniature hinges at both ends for fixing. It's very suitable for the position detection of small mechanical stroke and swinging. And the occasions have no requirement on centering. Such as robot, pick-up machine, brick machine, shoes-making machine, ceramic machinery, sluice, etc.
Specification:

Basics

Model

CCHN-LDSH

Weight

100-500g

Measuring range *

10mm

25mm

50mm

75mm

100mm

125mm

150mm

175mm

200mm

225mm

250mm

275mm

300mm

Technical parameters

Mechanical stroke

Measuring range + 3mm

Resistance

1kΩ

2 kΩ

5 kΩ

Linearity

0.1%FS

0.08%FS

0.05%FS

Repeated accuracy

0.01mm

Maximum operating speed

5m/s

Operating current

≤10mA

Operating voltage

DC 5V

DC 10V

DC 24V

Output signal *

DC 0-5V

DC 0-10V

DC 0-5V, 0-10V, 4-20mA (optional)

Operating temperature

-40℃～+135℃

Protection class

IP67

A length

Measuring range + 120mm

B length

Measuring range + 33mm

Diameter

Φ18mm or Φ22mm

Wiring

Brown: V_cc, blue: -V_cc, black: Output

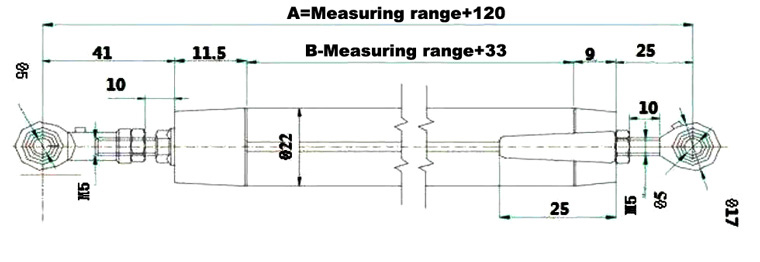

Dimensional drawing (unit: mm):
