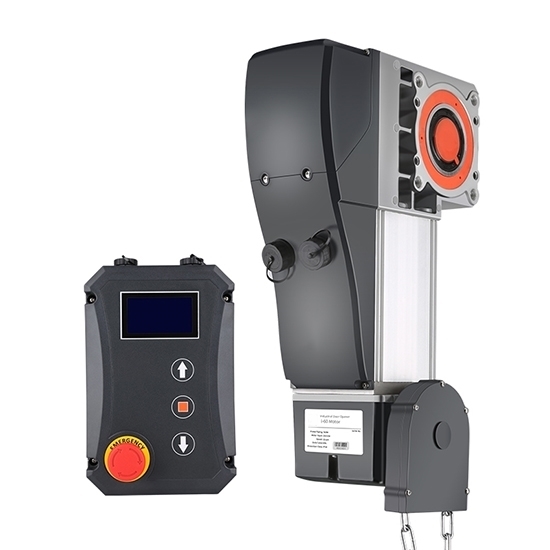

800W Industrial Door Opener, 45m² Area, 110Nm, 25.4mm

800W Industrial Door Opener, 45m² Area, 110Nm, 25.4mm

ATO industrial door motor with 800W adopts chain manual mode, drive torque is 110Nm, applicable door area can reach 45m². The number of limit turns can reach 18, the shaft diameter is 25.4mm, and the lifting height can reach 7m. 800W industrial door opener is also equipped with a variety of convenient accessories. If you need or have any questions please ask our staff we will quickly reply.

SKU: CCHN-OPENER-800W

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Features:

CCHN industrial door motor with 0.8kW, 3.64A,18 turns can adjust the speed of the door body in place through the control system to easily protect the door body from damage.
This type of door motor has the effect of anti pressure, anti shock and rebound in case of resistance. When the door encounters obstacles during operation, the door will move towards the closing direction, so there is no need to worry about the staff's goods being crushed by the door.
CCHN 800W industrial door motor also equipped with an emergency button. In case of emergency, pressing the pause key can effectively protect the door body and finance.
CCHN provides you with extremely safe and convenient door motor to effectively protect your body and property safety.

Applications:

CCHN high quality and high performance industrial door motor can be used in fire fighting floding door, 4S shop, storage door and warehousing door.

Specification:

Model	CCHN i-110
Rated Torque	110N.m
Maximum Door Area	45m²
Maximum Lift Height	7m
Power Rating	0.8kW
Rated Current	3.64A
Nominal Input Voltage	220V AC ± 10%, 50/60Hz
Start-up Current	2.3A
Manual Operation	Chain Release
Duty Cycle	20% (Maximum Runtime Not Exceed 10min)
Rated Speed	22rpm
Maximum Turns	18
Output Shaft Hole Diameter	25.4mm / Customize
Maximum Travel	19 rounds rotation of output shaft
Operating Temperature	-20°C to +45°C
Noise Level	＜50dB
Degree of Protection	IP54
Slow Start/ Stop Function	Yes
Safety Obstruction Sensing	Yes

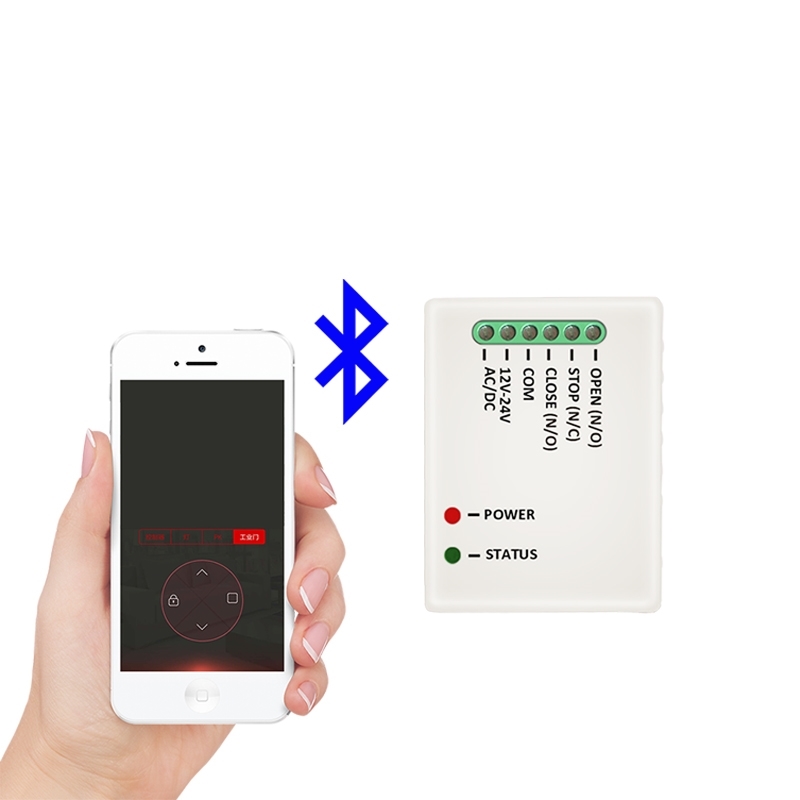

Connect to APPLink Smartphone Controller	Available
Insulation Level	F
Maximum Surface Temperature	80°
Weight	18.7kg

Dimension

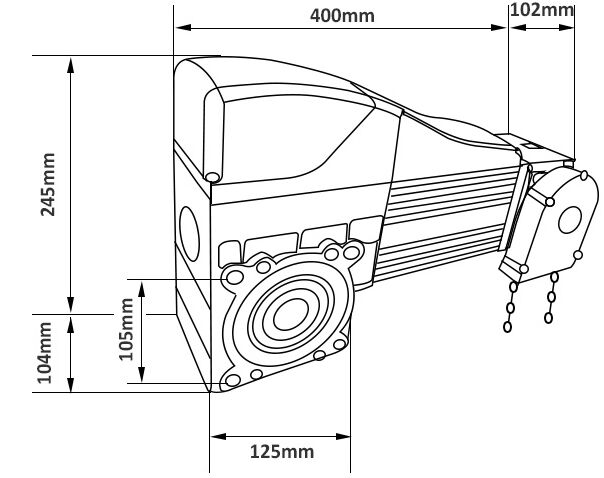

800W industrial door opner dimension

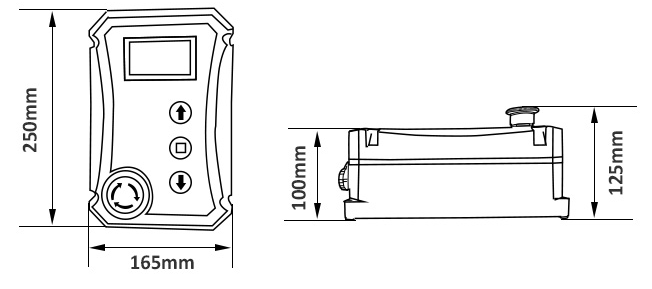

800W industrial door opner dimension2

Tips: What are the advantages of 800W industrial door opener?

CCHN industrial door motor Equipped with the function of manually opening and closing the door, there is no need to be afraid of the trouble caused by power failure. Just pull the clutch chain to open and close the door, light and effortless.
LCD display has two languages: Chinese and English. The running state of motor and error information can be seen at a glance. In case of emergency, it can be solved by yourselves.
800W industrial door opener adopts frequency conversion design, which can adjust the speed of opening and closing the door respectively.
The operation times of the motor can be set to remind the maintenance of the motor. When the actual operation times of the door body reach the set number, the motor will stop operation, but the manual operation will not be affected.

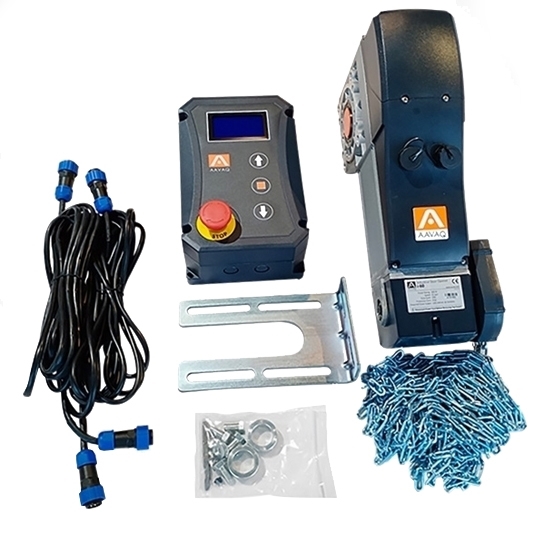

CCHN industrial door motor equipped with alarm lights, antenna, carlink ll intelligent door opening system, three box buttons, airbags, infrared industrial door special electric eye and other equipment, the function is more abundant.

CCHN provides you with all kinds of high quality door motors.
