60W Garage Door Opener, 8m², 160mm/s, 600Nm

60W Garage Door Opener, 8m², 160mm/s, 600Nm

60W garage door opener is suitable for the door area of 8m² with 1.2mm rail and 10m² with 2.0mm rail, The lifting height can reach 2.4 m to 3.4m. The motor power supply system is 110VA. The motor voltage is 24V DC. IP grade 24. ATO provides you with professional and efficient garage door motor.

SKU: CCHN-GDM-60W

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN garage door motor with 60W, torque 600Nm. It is not suitable for solid wood door and industrial door body, but for standard garage door body. Its speed can reach 160mm/s. Professional and cost-effective. 60W garage door opener is also equipped with a variety of convenient accessories. If you need or have any questions please ask our staff we will quickly reply.

CCHN Garage Door Openers Display:

CCHN 60W Garage Door Opener Features:

60W garage door opener adopts the single chain operation mode, which will not produce noise to give you a comfortable and quiet living environment.
Different from other motors, CCHN garage door motor has independent moving parts, in which it can run directly with the door body. So the push-pull force and stability are relatively strong.
Equipped with fast clutch device, whether in normal use or in case of power failure, as long as you pull the clutch handle, you can manually open and close the door at any position. Safety and convenience.
Because the moving parts run synchronously with the door body, the slower speed can effectively reduce the impact force of the door body and extend the life of the motor to protect the door body.

CCHN 60W Garage Door Opener Specification:

Model	CCHN S12/600
Torque	600Nm
Max. Door Area (Insulated Steel Panel)	8m² (1.2mm Rail) / 10m² (2.0mm Rail)
Lift Height (Optional Door Area)	2.4m (8m²)/ 2.4m (10m²)/ 2.7m (10m²)/ 3.4m (10m²)
Max.Door Area (Wooden or Industrial Panel)	not suitable
Maximum Speed	160mm/s
Duty Cycle	30%
Nominal lnput Voltage	220V AC+10%,50/60Hz
Motor	24v DC/60W
Weight	5.5kg
Transformer	110VA
Degree of Protection	IP40
Soft Start/Stop Function	Yes
Safety Obstruction Sensing	Yes

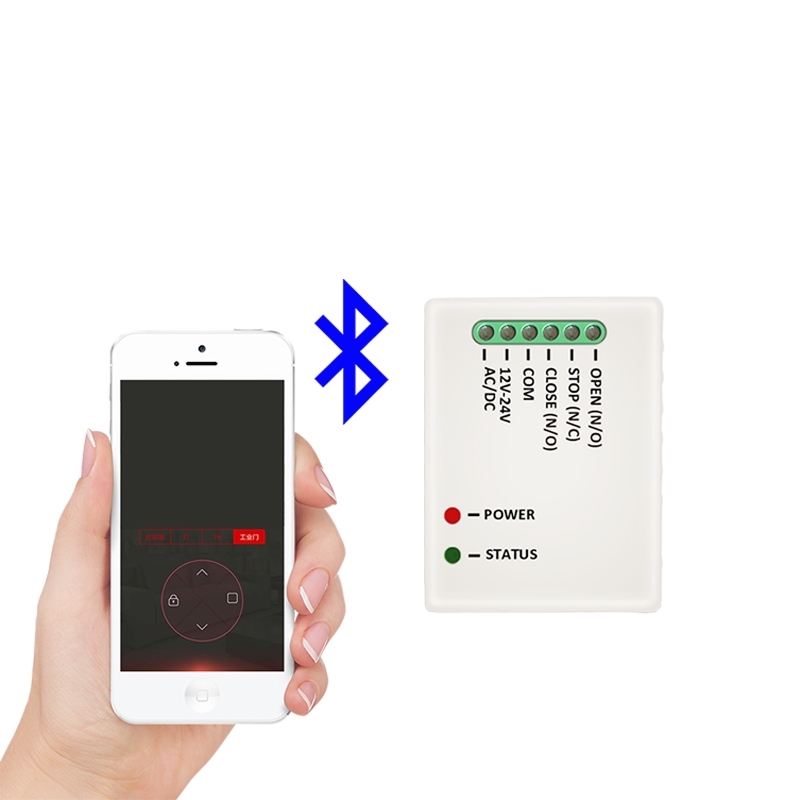

Connect to APP Link Smartphone Controller	Available
Speed Regulation	Yes
Auto Close Function	Yes
Operating Temperature	-20°C to +50°C
Maximum Distance	80m
TX Capacity	Standard 2, Max. 12 Transmitter
Rail	1.2mm/2.0mm Galvanized Steel+ Fixed Chain
Height Extendable	1.2mm Rail Not Extendable.2.omm Rail Extendable with 350mm/1000mm

CCHN 60W Garage Door Opener Application:

CCHN garage door opener practical and powerful for domestic sectional and tilt-up garage doors, heavy duty and light industrial doors translucent overhead doors steel panel sectional doors wooden doors, copper doors. It is also widely used in sectional garage door, flip garage door, swing garage door and side mounted garage door.

60W Garage Door Opener Application

CCHN 60W Garage Door Opener Dimension (Unit: mm)

Tips: How to choose the suitable motor model for your garage door?

60W garage door opener is suitable for doors with an area of 10 m² or less, and the lifting height is about 2.4 meters to 3.4 meters.
80W garage door opener is suitable for doors with an area of 15 m² or less, and the lifting height is about 2.4 meters to 3.9 meters.
CCHN 120W garage door opener is suitable for doors with an area of 21m² or less, and the lifting height is about 2.4 meters to 4.9 meters.
If the width of your door is 4 meters and the height is 2.2 meters, then the area of your door is 4 meters times 2.2 meters, which is 8.8 meters. Choose S12.
If the width of your door is 4.5 meters and the height is 3 meters, then the area of your door is 4.5 meters times 3 meters, which is 13.5 meters. Choose SX12.
CCHN will patiently answer all your product questions in the whole process. Come and order.
