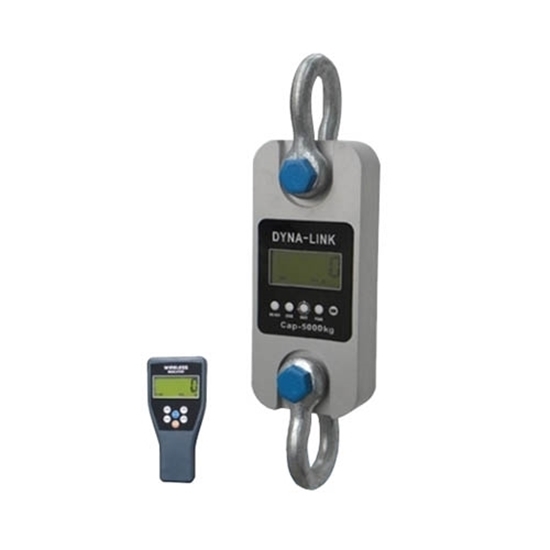

Wireless Digital Dynamometer with Shackle, 1 ton to 200 ton

Wireless Digital Dynamometer with Shackle, 1 ton to 200 ton

Wireless dynamometer with shackle with infrared remote control, capacity from 1 ton, 2 ton, 3 ton to 200 ton. Optional common SI units: kilogram (kg), ton (t), pound (lb), newton (N), kilo newton (KN) and 1 inch high LCD digital display. High measurement accuracy to 0.1% of maximum capacity and low power design with 3 standard "AA" alkaline batteries for long hours of operation. Rugged construction with novel one-piece sensor design.

SKU: CCHN-GWD200

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

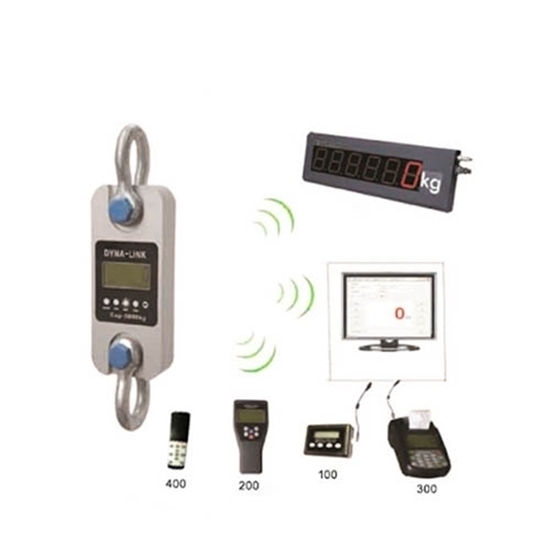

Wireless digital dynamometer with shackle capacity from 1 ton, 2 ton, 3 ton to 200 ton, infrared remote control enables parameter setting and instrument calibration. Common SI units can be selected: kilogram (kg), ton (t), pound (lb), newton (N), kilonewton (KN). High measurement accuracy down to 0.1% of maximum capacity.

Specification

Model	CCHN-GWD200-1	CCHN-GWD200-2	CCHN-GWD200-3	CCHN-GWD200-5	CCHN-GWD200-10	CCHN-GWD200-20	CCHN-GWD200-30	CCHN-GWD200-50	CCHN-GWD200-100	CCHN-GWD200-200
Capacity	1 ton	2 ton	3 ton	5 ton	10 ton	20 ton	30 ton	50 ton	100 ton	200 ton
Division value	0.5kg	1kg	1 kg	2kg	5kg	10kg	10kg	20kg	50kg	100kg
Material	Aluminum/ alloy steel
Weight	25 (kg)
Measurement accuracy	0.1% F.S.
Display	1 inch high LCD digital display
Power supply	3 standard "AA" alkaline batteries
Units	Optional kilogram (kg), ton (t), pound (lb), newton (N), kilo newton (KN)
Remote control	Infrared remote control
Indicator display area	4 buttons: "On/Off", "Zero Setting", "Peak Hold", "Unit Switching"

Details

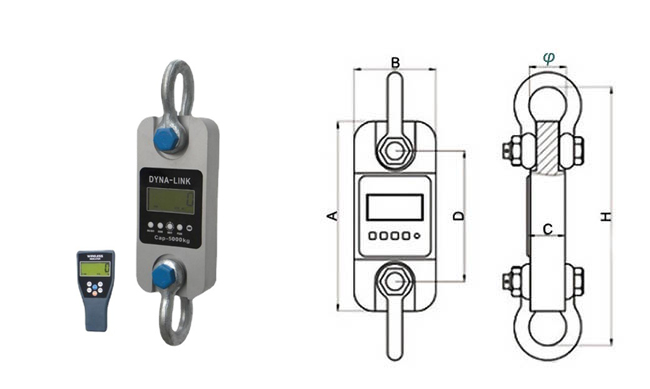

shackle wireless dynamometer dimension

Wireless dynamometer with shackle size

Capacity (kg)	Division value	A (mm)	B (mm)	C (mm)	D (mm)	φ (mm)	H (mm)
1 ton	0.5kg	245	112	37	190	43	335
2 ton	1kg	260	123	37	195	51	365
3 ton	1kg	260	123	37	195	51	365
5 ton	2kg	285	123	57	210	58	405
10 ton	5kg	320	120	57	230	92	535
20 ton	10kg	375	128	74	260	127	660
30 ton	10kg	420	138	82	280	146	740
50 ton	20kg	465	150	104	305	184	930
100 ton	50kg	570	190	132	366	229	1230
200 ton	100kg	720	265	183	440	280	1362

Feature

Digital dynamometer with rugged construction with novel one-piece sensor design. The dyno machine measurement accuracy reaches 0.1% of the maximum capacity.
All functions and units are clearly displayed on the LCD with white backlight. Dyno machine provides 1 inch high LCD digital display for easy viewing from a distance.
Two programmable set points allow the user to set safe warning limits.
Electric dynamometer with low power consumption design guarantees 3 standard "AA" alkaline batteries to work for more than 40 hours.
Common SI units are provided for easy application: kilogram (kg), ton (t), pound (Ib), newton (N), kilo newton (KN). Infrared remote control makes parameter setting and instrument calibration convenient and easy to manage.
The dyno machine infrared remote control provides a variety of operation functions: "zero", "tare", "peak hold", "accumulation", "accumulation query", "accumulation clear", "unit switching", "voltage query", and "shutdown ".
The hand-held dynamometer itself provides 4 buttons: "On/Off", "Zero", "Peak Hold", and "Unit Switch".

Tips: What is dynamometer working principle?

The main part of the dynamometer is the spring, which is made according to the principle of Hooke's law: F=KX, that is, the elastic force generated by the spring is proportional to its deformation (elongation or shortening). Because of the proportional relationship, the scale of the dynamometer is uniform.
Suspend the object to be measured from the dynamometer so that it is at rest. At this time, the gravity on the object and the pulling force of the dynamometer on the object are balanced and equal in magnitude.
The reading of the spring dynamometer represents the magnitude of the spring tension. Then the value is equal to the gravity of the measured object.
