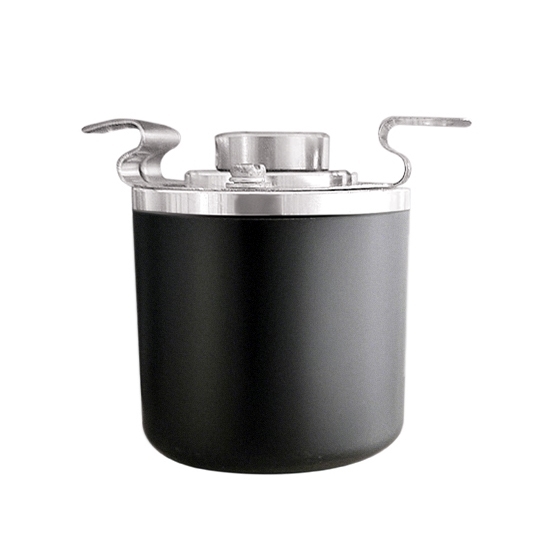

Incremental Rotary Encoder, Blind Shaft, 3600 ppr

Incremental optical rotary encoders with 3600 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Model selection

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

• The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
• The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
• Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
• Compact and lightweight, suitable for automation equipment with limited installation space.
• Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: How to use rotary encoder outdoors or in harsh environments?

When using the equipment outdoors, the environment is dirty and the encoder may be crashed.
There is a kind of rotary encoder with aluminum sealed protective shell (can be made in stainless steel due to special requirements) and double heavy duty bearing, no need to worry about getting dirty outdoors. It can be used in steel factories as well as heavy equipment.
However, if there is space for the installation of the encoder. It is recommended to add a protective shell outside the encoder to enhance its protection. After all, the encoder is a precision device. There is a price difference between a coder and a protective shell.
