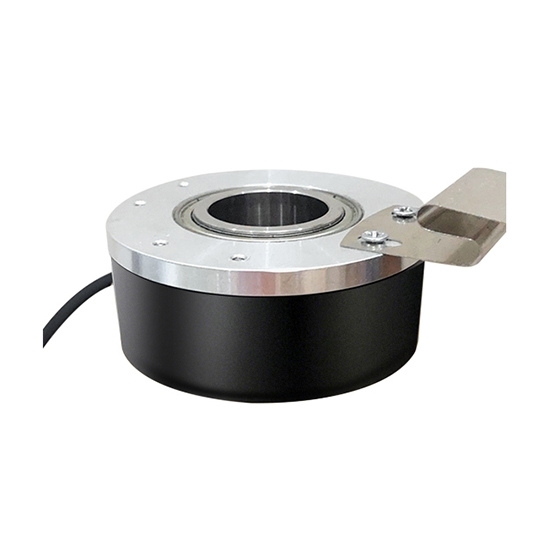

Incremental Rotary Encoder, Hollow Shaft, 200 ppr

Incremental Rotary Encoder, Hollow Shaft, 200 ppr

200 ppr incremental rotary encoder has 80mm shell diameter and 20mm hollow shaft diameter. Cheap optical rotary encoder can sleeve-jointed on motor output shaft, high resolution, high quality, several output modes to choose, manufacturer direct sale.

SKU: CCHN-IRE-200PH

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Incremental optical rotary encoders with 200 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Basics

Model

CCHN-K8020G-200BM

Weight

100g

Wiring

Color

Red

Black

Green

White

Yellow

Brown

Gray

Orange

Signal

V_cc

GND

A-

B-

Z-

Mechanical properties

Maximum shaft speed (r/min)

5000

Starting torque

<0.03Nm (25℃)

Maximum shaft load

Radial load: 20N, axial load: 10N

Shock resistance

50G/11ms

Anti-vibration

10G (10~2000Hz)

Rotational inertia

4X10^-8kgm²

Operating temperature

-30~+85℃ (-22~+185℉)

Storage temperature

-35~+95℃ (-31~+203℉)

Protection Level

IP51

Electrical characteristics

Output circuit

Open-collector output

Voltage output

Push-pull output

Line driver output

Supply voltage V_cc

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC5V±0.2

DC 5～24V

Current consumption

≤60mA

≤100mA

Output high level

≥3.5V

≥V_cc-2.5V

≥2.5V

≥V_cc-2.5V

Output low level

≤0.5V

≤1.0V

Rise time T_r

≤500ns

≤1500ns

≤200ns

≤500ns

Fall time T_f

≤100ns

≤300ns

≤200ns

Maximum frequency response

0～150kHz

Model Selection

Shaft type	Diameter of shell	Diameter of shaft	Connection type	Cable length *	Resolution	Production identifier	Z signal	Z signal wavelength	Output mode *	Voltage *
K: Hollow shaft	80: 80mm	20: 20mm	G: Cable edge output	1: 1m 2: 2m 3: 3m 4: 4m	200: 200 ppr	B	M: Output 1 if receiving Z signal	Default: 1T	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272	5: +5VDC 830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
Compact and lightweight, suitable for automation equipment with limited installation space.
Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Incremental rotary encoder hollow shaft dimension

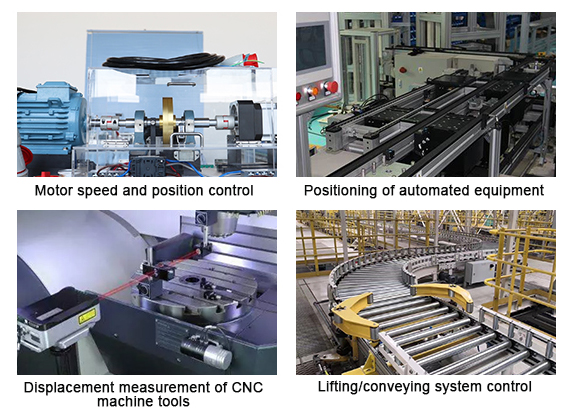

Application

Incremental rotary encoder application

Tips: How to use a multimeter to detect if the incremental encoder is broken?

Power on the incremental encoder and measure the output voltage of A / B / Z phase. If there is no reading, then the power supply is partially damaged or the main chip is damaged. If one phase can be reading, slowly turn the encoder shaft. A / B phase should be voltage high level and then voltage low level in turn. There is 1/2 chance. And for Z phase, there is one high level in every circle, the high level voltage is generally 2V lower than the input voltage, or even higher. So if a phase never appears high level, or the output level is very low, then the phase is broken.
If the phase is no problem after detecting, then look at the oscilloscope. First to see if the waveform has been distorted, second to see if there is a pulse missing, and then test it again.
