Incremental Rotary Encoder, Hollow Shaft, 4096 ppr

Incremental Rotary Encoder, Hollow Shaft, 4096 ppr

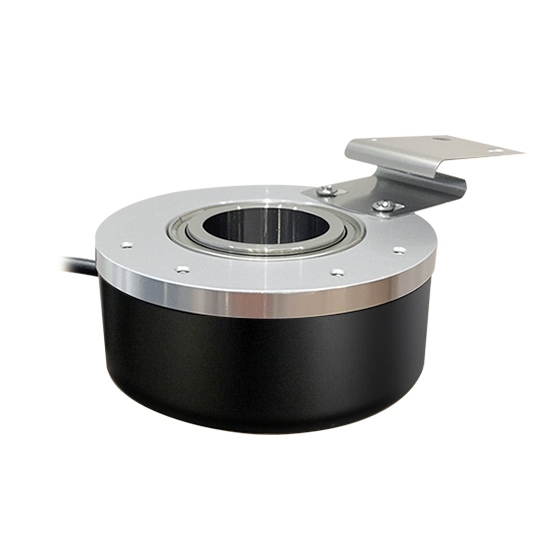

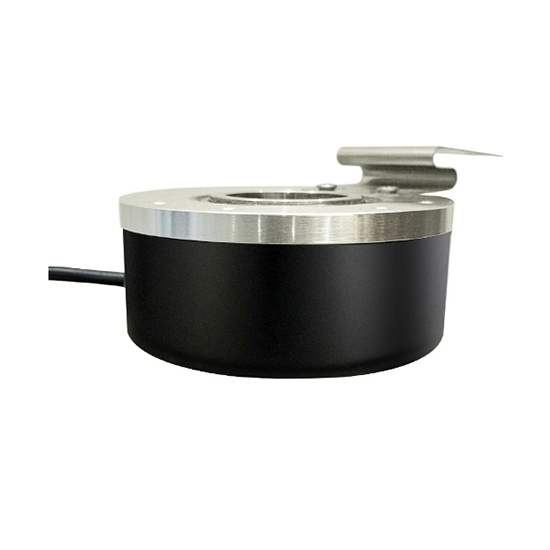

Low priced optical rotary encoder adopts hollow shaft, can sleeve-jointed on motor output shaft, high resolution 4096 ppr, high reliability, high quality, several output modes to choose. 1800 ppr incremental rotaty encoder has optional voltage 5VDC/8-30VDC, optional 6 output modes, Φ80mm shell, Φ25mm shaft and cable edge output connection mode.

SKU: CCHN-IRE-4096PH

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Incremental rotary encoders with 4096 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Basics

Model

CCHN-K8025G-4096BM

Weight

100g

Wiring

Color

Red

Black

Green

White

Yellow

Brown

Gray

Orange

Signal

V_cc

GND

A-

B-

Z-

Mechanical properties

Maximum shaft speed (r/min)

5000

Starting torque

<0.03Nm (25℃)

Maximum shaft load

Radial load: 20N, axial load: 10N

Shock resistance

50G/11ms

Anti-vibration

10G (10~2000Hz)

Rotational inertia

4X10^-8kgm²

Operating temperature

-30~+85℃ (-22~+185℉)

Storage temperature

-35~+95℃ (-31~+203℉)

Protection Level

IP51

Electrical characteristics

Output circuit

Open-collector output

Voltage output

Push-pull output

Line driver output

Supply voltage V_cc

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC5V±0.2

DC 5～24V

Current consumption

≤60mA

≤100mA

Output high level

≥3.5V

≥V_cc-2.5V

≥2.5V

≥V_cc-2.5V

Output low level

≤0.5V

≤1.0V

Rise time T_r

≤500ns

≤1500ns

≤200ns

≤500ns

Fall time T_f

≤100ns

≤300ns

≤200ns

Maximum frequency response

0～150kHz

Model Selection

Shaft type	Diameter of shell	Diameter of shaft	Connection type	Cable length *	Resolution	Production identifier	Z signal	Z signal wavelength	Output mode *	Voltage *
K: Hollow shaft	80: 80mm	25: 25mm	G: Cable edge output	1: 1m 2: 2m 3: 3m 4: 4m	4096: 4096 ppr	B	M: Output 1 if receiving Z signal	Default: 1T	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272	5: +5VDC 830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
Compact and lightweight, suitable for automation equipment with limited installation space.
Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

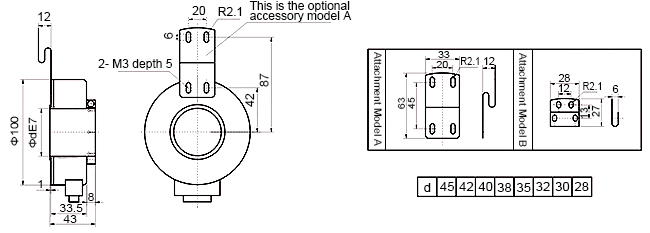

Hollow shaft incremental rotary encoder dimension

Application

Incremental rotary encoder application

Tips: Connection of rotary encoder and PLC

General rotary encoder has three kinds of power supply: DC 5V, DC 5-13V or DC 11-26V. If the encoder uses DC 11-26V, then it can use the PLC 24V power supply, but something need to be aware of:
The current consumption of the encoder is within the power range of the PLC.
If the encoder is parallel output, connect PLC I/O point, need to understand that the encoder signal level is push-pull output or open collector output, such as the open collector output, there are NPN-type and PNP-type, which should be the same as the I/O polarity of PLC. If it is the push-pull output, then the connection has no problem.
If the encoder is driver output, then the general signal level is 5V, be careful when connecting, do not let the 24V power supply level be into the 5V signal wiring and damage the encoder signal terminal.
