Wireless WiFi Endoscope for iPhone/Android

Wireless WiFi Endoscope for iPhone/Android

High-quality wireless WiFi endoscope inspection camera, compatible with iOS and Android systems, featuring powerful WiFi signal and device connectivity. The 2.0 Megapixel camera captures clear and realistic images. The probe has a diameter of 7/8mm, with optional single or dual lenses, and a length of 5m, enabling efficient and rapid inspections.

SKU: CCHN-WF200

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN has ultra-high-definition single/dual-lens industrial endoscopes with built-in WiFi modules for sale, with a choice of 7mm-5m/8mm-5m ranges, which can transmit the captured image data to iOS/Android devices at the same time for easy viewing on multiple devices. The IP67 waterproof lens + 1080P high-definition pixels meet the requirements for clear underwater shooting in daily use.

Specification

Device
Model	CCHN-WF200D7L5	CCHN-WF200D8DL5
Flashlight	1 watt cree LED
Ports	USB-C charging port
Power Source	2000mAh lithium battery
Battery Life	Up to 4 hours
Opitical Sensor	CMOS
FOV	80°
Power input	DC 5V/1A
WIFI Frequency Bands	2.4 Ghz
Resolution	Max to 1920*1080
Camera
Type	Single Lens	Dul Lens
Probe Diameter	7.0 mm	8.0mm
Probe Length	5m
Depth of Field	30-80mm
Field of View	80°
Megapixels	2.0 Megapixels
LED Lights	8 adjustable high-intensity LEDs
Probe Stiffness	Flexible and sturdy
Ingress Protection	Camera lP67 waterproof
Net Weight	≤610g	≤580g

Features

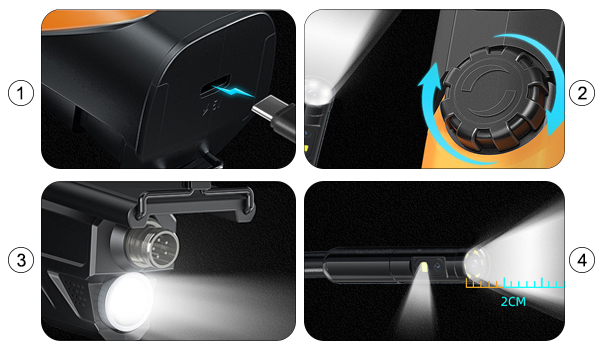

WiFi endoscope feature

Type-C Charge: Reversible plug, WIFI endoscope can be charged quickly.
LED Light Adjustment: Scroll wheel adjustment, light brightness can be controlled.
Main Unit Flashlight: Supplementary lighting, brightness can be used as a flashlight.
Lens Focal Length: Optimal focal length for front view is 2-8 cm, optimal focal length for side view is 2-5 cm.

Details

WiFi endoscope detail

Wi-Fi Connection Steps

Before using, look for the keyword "Mo-View" in the App store on iPhone or Android device and install the App.
1. Insert the USB endoscope into the USB port on the side of the host.
2. Long press the power button on the side of the host to start up.
3. Enter the WiFi setting menu of the mobile phone, find and connect the WiFi signal with the name of wif100-xxx.

Application

WiFi endoscope application

Tips: Wi-Fi inspection camera - CCHN-WF200 introduction

This flexible single/dual lens camera probe has a diameter of 7.0 mm/8 mm and a length of up to 5 meters, allowing it to easily reach the deepest areas. The camera probe features a metal cable housing and a durable rubber coating that maintains its shape and facilitates operation. The lens is equipped with 8 adjustable LED ring lights, providing the camera with perfect visibility in the darkest areas. The Wi-Fi endoscope probe can be inserted into the engine combustion chamber through the spark plug hole for inspection and has an IP67 protection rating, making it safe for use in investigating blocked drain pipes, pool filters, or septic tanks without worrying about the camera short-circuiting.
