0.2-4mm Stainless Steel Feeler Gauge

0.2-4mm measuring range stainless steel feeler gauge is a measuring tool, mainly used for the measurement of gap spacing, made of high-quality steel, which is easy and convenient to take and store.

Specification

• Model: CCHN-FG-K04D
• Measuring Range: 0.2-4mm
• Division value: 0.05mm
• Material: 304 stainless steel
• Weight: 500g

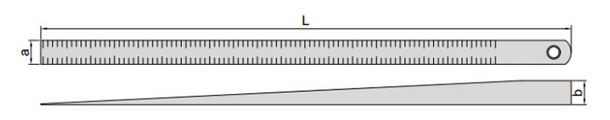

Dimension (Unit: mm)

L: 120mm a: 12.5mm b: 4.5mm

Application

Tips: What is the feeler gauge used for?

A feeler gauge is used to measure or set very small gaps, normally under 1 mm. When the blades are folded back into the handle, the thin, delicate blade is protected. The thickest possible blade that can be inserted into a gap or crack shows its width.
