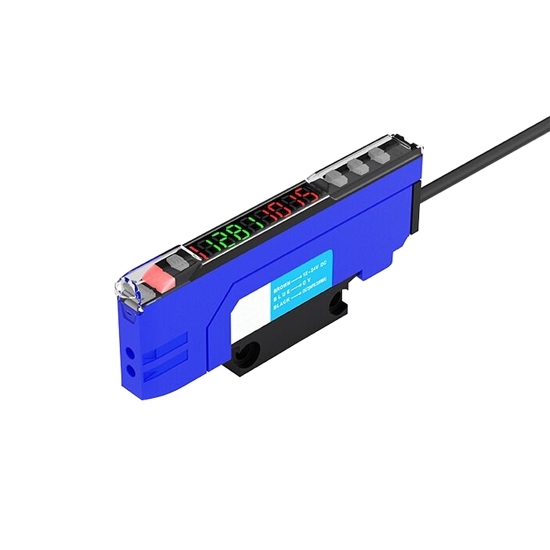

Fiber Optic Sensor Amplifier, 200mm/1200mm Distance

CCHN fiber optic amplifier has excellent performance and prominent advantages, making it a reliable choice for industrial automation testing. Fiber optic sensor amplifier has good compatibility and can be equipped with conventional optical fibers; it has strong anti-interference ability, and multiple units can be placed side by side without interference; the brightness level can be adjusted flexibly, and it is also equipped with a delay function.

Specification

Features

• Excellent performance parameters: Supports NPN/PNP dual output modes, with a power supply voltage of 12-24VDC and a current consumption of <20mA; both a diffuse reflection detection distance of 200mm and a through-beam detection distance of 1200mm are available to ensure accurate and efficient detection.
• Strong compatibility and practicality: Fiber optic sensor amplifier can match conventional optical fibers on the market, meeting the needs of various application scenarios.
• Anti-interference and flexible adjustment: Has strong anti-interference ability, allowing multiple units to be used side by side without mutual interference; the light intensity level can be flexibly fine-tuned to easily handle the detection of light-transmitting or light-blocking objects, and also supports a delay function.

Note: This amplifier needs to be used with fiber optic sensor.

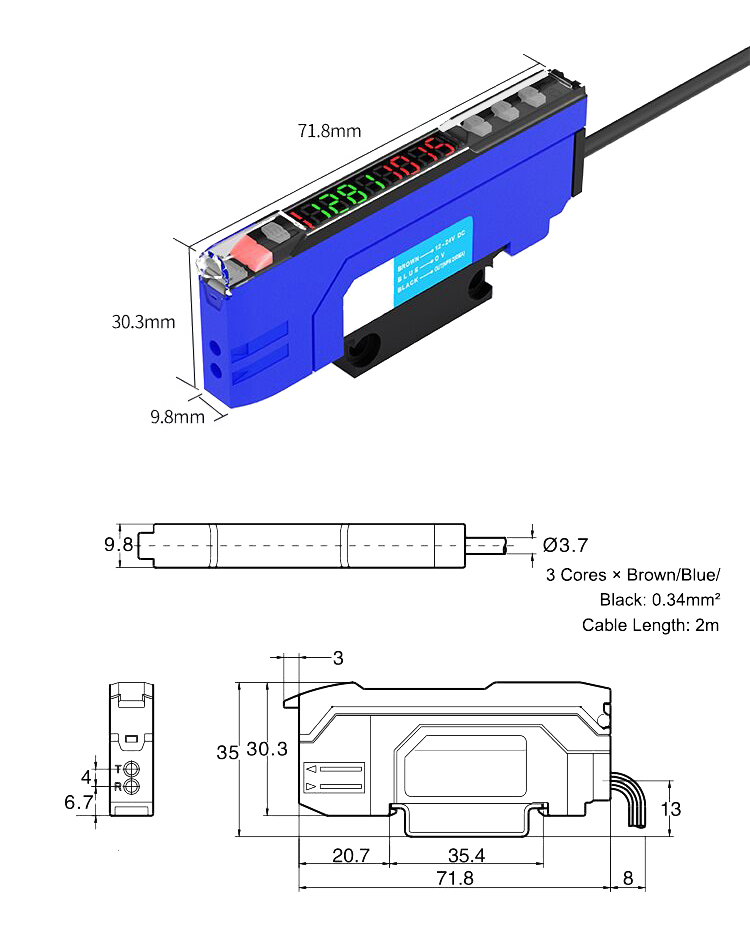

Dimensions (Unit: mm)

Detail

6 Tips for Operating Fiber Optic Sensor Amplifier More Easily

1. Lock function: Press and hold the [-] and [M] keys simultaneously for three seconds, and "LoC/ULoC" will be displayed to lock/unlock the keys.
2. Sensitivity fine-tuning: After pressing the [+] or [-] key, the value on the left side of the screen will change, allowing you to correct the threshold. If you hold down the [+] or [-] key, the value will increase or decrease rapidly. The longer you hold the key, the faster the rate of increase or decrease.
3. Frequency selection: Switch among F1, F2, F3, and F4. These four modes can prevent interference with each other.
4. Light intensity selection: Press the [+] or [-] key briefly to adjust the light intensity of fiber optical amplifier. There are 100 adjustable levels for light intensity.
5. Delay function: Press the [+] or [-] button to set a value within the range of 1 to 9999ms.
6. Select detection mode: After selecting the area mode, you can long-press the M key to return to the main menu to set the upper and lower limits. Hi is the upper limit value, and Lo is the lower limit value. Short-press the M key to switch between the upper and lower limit values, and then adjust the threshold via the [+] and [-] keys.
