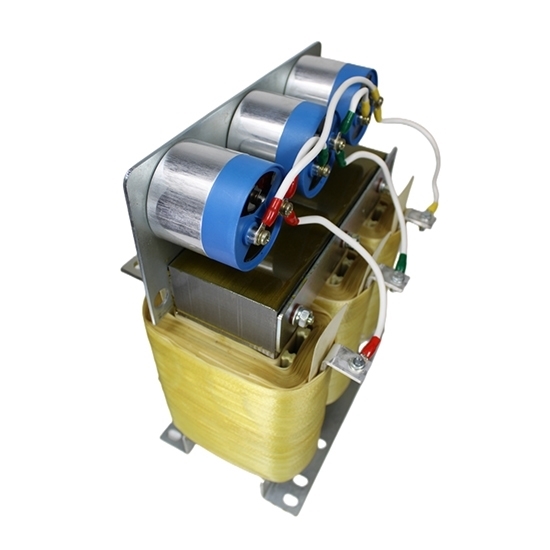

10A Sine Wave Filter, 3 Phase

Cost-effective sine wave filter for sale online with rated current 10A, adapted power of 3.7kW, and carrier frequency 4kHz. The three phase sinusoidal filter has the advantage of small size, light weight and long service life.

SKU: CCHN-SWF-10

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

10A sine wave filter with the power of 3.7kW at a low price for sale, the sine filter features withstand voltage 3000VAC 60/s. The sine filter can extend the life of the motor, protect motor insulation, increase transmission distance, and improve system reliability.

Specification

Model	CCHN-SCAR-0010
Rated current	10A
Adapted power	3.7kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	10kg

Dimension

Dimension of sine wave filter

Model	L	W	H	L1	W1	A	B
CCHN-SCAR-0010	180mm	190mm	220mm	165mm	87mm	8mm	14mm

Application

Sine wave filter application

Tips: What is the difference between a dU DT filter and sine filter?

Compared to sine-wave filters the dU/dt filters have a cut-off frequency above the switching frequency. They are smaller, weigh less and have a lower price compared to sine-wave filters. Because of the smaller inductance and capacitance the dU/dt are suitable for high dynamic applications.
