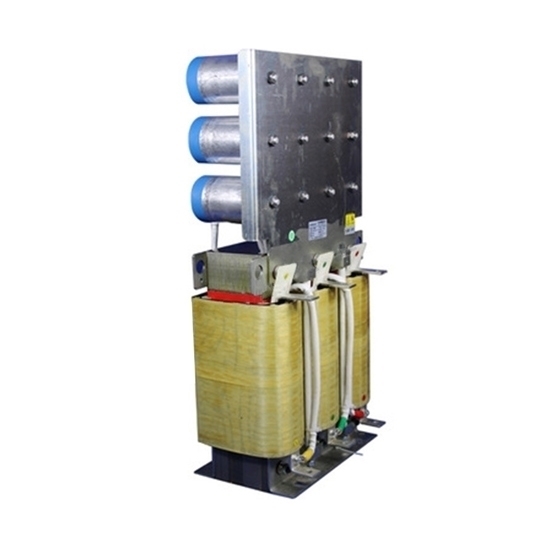

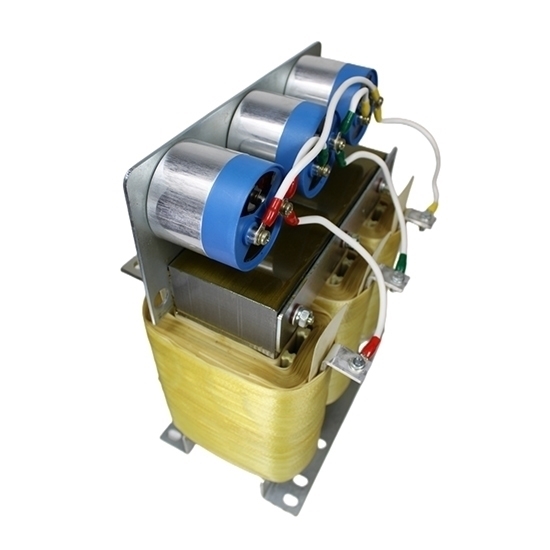

30A Sine Wave Filter, 3 Phase

High-performance sine wave filter for sale online. The sine filter with rated current 30A adapted power of 15kW, and carrier frequency 4kHz. The sinusoidal filter has an advanced choke design to minimize filter losses and voltage drop.

SKU: CCHN-SWF-30

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

30A sine wave filter with the power of 15kW at a low price for sale, the sine filter features withstand voltage 3000VAC 60/s. The sine filter can extend the motor's life, protect motor insulation, increase transmission distance, and improve system reliability.

Specification

Model	CCHN-SCAR-0030
Rated current	30A
Adapted power	15kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	24.5kg

Dimension

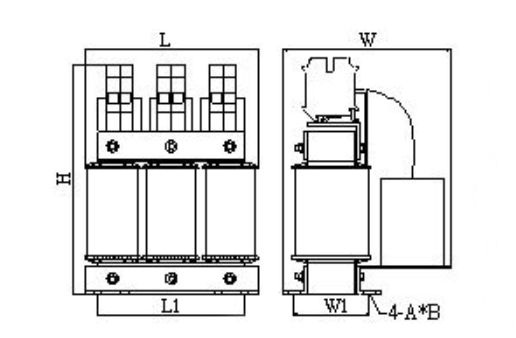

Dimension of sine wave filter

Model	L	W	H	L1	W1	A	B
CCHN-SCAR-0030	270mm	240mm	300mm	245mm	99mm	11.5mm	18mm

Application

Sine wave filter application

Tips: Precautions for Using Sine Wave Filter

After using the sine wave filter, the load capacity of the inverter will be lower than the system rated value.
The sine wave filter will cause a certain proportion of voltage drop in the filtered voltage. At a fundamental frequency of 50Hz, the voltage drop is about 10%. Its ratio is proportional to the change of the fundamental frequency.
