3 HP (2.2 kW) Fire Pump, Single Stage

A 3 hp fire pump is a type of pump specifically designed to move water with enough pressure and volume to extinguish fires. Fire fighting pump import and export along the same horizontal axis. Fire pump using mechanical seal, with no leakage characteristics.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: CCHN-XBD4.0/1G-40-200B
• Power: 3 hp (2.2 kW)
• Number of Stage: single stage
• Voltage: 380V (other voltage, please contace us)
• Caliber: 40 mm
• Flow Rate: 3.7m³/h
• Head of Pump: 38m
• Rotating Speed: 2900 r/min
• Net Weight: 52kg

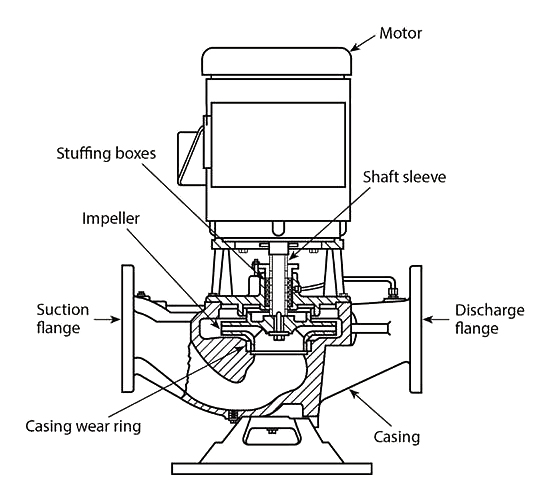

Structure:

Tips: How to Use Fire Pump?

• Make sure the pump is adequately primed with water before starting it.
• Start the fire pump by turning on the motor or engine, following the manufacturer's instructions.
• Open the discharge valve gradually, allowing the water pressure to build up slowly. This helps to prevent water hammer and damage to the piping system.
• Monitor the water pressure and flow rate using pressure gauges and flow meters to ensure that they are within the recommended range for the fire protection system.
• If necessary, adjust the throttle or speed of the engine or motor to maintain the correct water pressure and flow rate.
• Shut off the fire pump and close the discharge valve once the fire is extinguished or the emergency is over.
