10 HP (7.5 kW) Fire Pump, Single Stage

The 10 hp (7.5 kW) fire pump is equipped with a mounting base, easy to install, increase the stability of the pump operation. The pump and the motor are connected by a coupling, so there is no need for correction in use.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: CCHN-XBD5.0/5G-65-200
• Power: 10 hp (7.5 kW)
• Number of Stage: single stage
• Voltage: 380V (other voltage, please contact us)
• Caliber: 65 mm
• Flow Rate: 17.5m³/h
• Head of Pump: 52.7m
• Rotating Speed: 2900 r/min
• Net Weight: 107kg

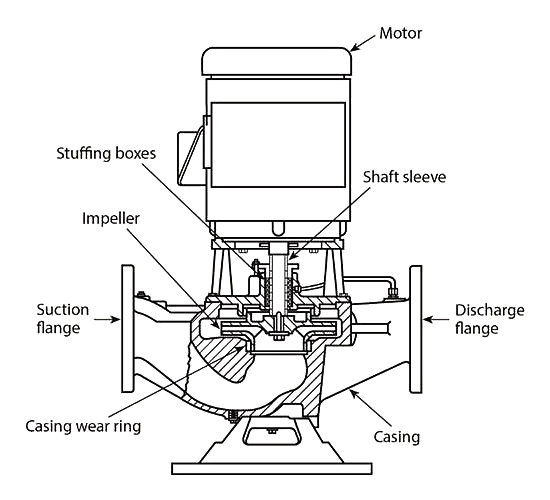

Structure:

Tips: What are the Application of Fire Pump?

• High-rise buildings. Fire pumps are often installed in high-rise buildings to provide water pressure for sprinkler systems on upper floors, as municipal water pressure may not be sufficient to reach those heights.
• Industrial facilities. Many industrial facilities, such as factories and warehouses, have fire pumps to provide water for sprinkler systems and other fire suppression equipment.
• Hospitals and healthcare facilities. Fire pumps are essential in hospitals and other healthcare facilities, where the safety of patients and staff is paramount.
• Hotels and resorts. Fire pumps are often installed in hotels and resorts to provide water pressure for sprinkler systems and other fire suppression equipment in case of a fire emergency.
