15 HP (11 kW) Fire Pump, Single Stage

Fire pump using mechanical seal, with no leakage characteristics. The firefighting pump and the motor are connected by a coupling, so there is no need for correction in use. Common applications of 15 hp fire water pump include use in commercial buildings, industrial facilities, and large residential complexes where enhanced fire protection is necessary.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: CCHN-XBD4.0/10G-80-200A
• Power: 15 hp (11 kW)
• Voltage: 380V (other voltage, please contact us)
• Caliber: 80 mm
• Flow Rate: 32.8m³/h
• Head of Pump: 47m
• Rotating Speed: 2900 r/min
• Net Weight: 165kg

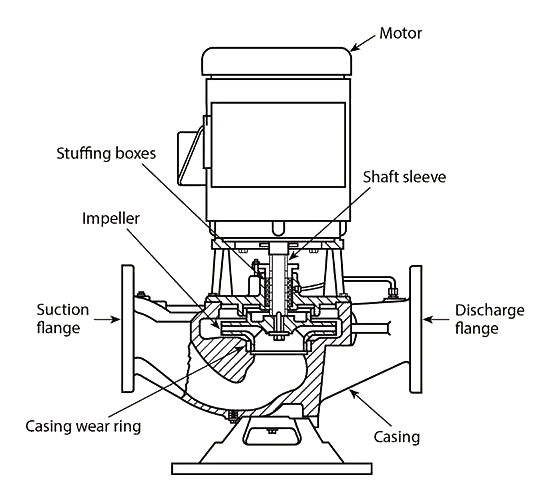

Structure:

Tips: Fire Pump Troubleshooting

• Check for power supply issues. The first step in troubleshooting a fire pump is to check if it's receiving the required power supply. Ensure that the circuit breaker or fuse is not tripped, and the power switch is turned on.
• Inspect the motor. If the power supply is okay, the next step is to inspect the motor.  Check if there are any loose connections or damaged wires.
• Check the pump impeller. The impeller is a critical component of the fire pump.  Inspect it for any damage or debris that may be obstructing its rotation. Ensure that the impeller is clean, free of dirt or debris, and securely fastened.
• Test the water supply. The fire pump requires a consistent water supply to operate efficiently.
