Dual Ball Float Level Switch, Stainless Steel

Float liquid level switch is a compact size and highly reliable, which is widely applied in water fountains, air conditioning, humidifiers, bathroom equipment, sale machines, oil tank, and chemical liquid level control.

Specification

Dimensions (Unit: mm)

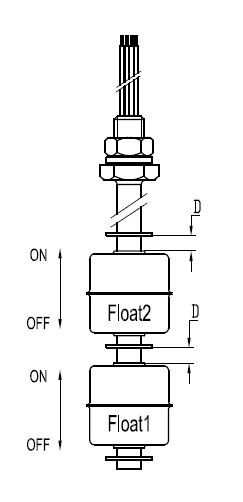

Movement Explanation

When the float down to the D position, in the position between D=3±1mm, the reed switches will be closed. Float ball reverses the opposite action.

Tips for using the float liquid level switch

• Handle gently because the inside of the float level switch is a dry reed pipe which is fragile.
• The temperature use of the plastic should be less than 80℃, and the stainless steel should be less than 150℃。
• Avoid vibration, magnetic field or over the maximum temperature for a long time in the use environment.
• Avoid to use this float sensor for the liquid that is too viscous.
• Remove the dirt on the float switch regularly, the clean period depends on the medium.
