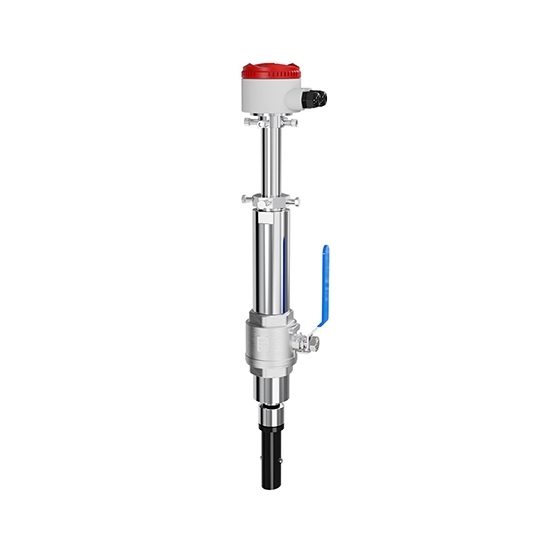

Insertion Electromagnetic Water Flow Meter, DN100-DN3000

Insertion Electromagnetic Water Flow Meter, DN100-DN3000

Reasonable price and high quality insertion type magnetic flow meter for sale online. The medium of insertion magnetic flowmeter is water. Working temperature of insertion electromagnetic flow meter between -20°C and 70°C. It often used in petrochemical, electric power, metallurgy and textile.

SKU: CCHN-FLOW-IEFM

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The insertion magnetic water flow meter is a type of flowmeter divided by structure. When a conductive medium is flowing through, an induced voltage is generated.

Specification

Model	CCHN-LDGC-SUP-L
Port Size	DN100-3000 mm (port size more than DN1000 please contact us)
Working Pressure	1.6 Mpa
Working Temperature	≤70°C
Upper Limit Range	1-10 m/s
Accuracy of Measurement	±2.5%
Conductivity	≥50%
Medium	water
Electrode Material	304, 304L, 316, 316L, Hastelloy alloy, titanium
Converter Output	4-20 mA output
Frequency Output	pluse output
Communication Output	RS485
Power Supply	24V DC, 220V AC
Maximum Distance	≤50m
Cable	RVVP double core shielded cable or STT3200 four core three shield cable
Compact Type	IP65 / IP68
Buried Depth	Not deeper than 5 meters
Repetitiveness	0.0016
Maxium Measurement Error	±0.1°C

Features

Wide Compatibility: Suitable for environmental protection sewage/municipal water supply/agricultural irrigation/water conservancy and other fields, not affected by viscosity, temperature, pressure and so on.
Convenient Installation: Flow meter installation process without disconnection, maintenance, easy installation.
304 Stainless Steel Material: The flow meter is made of corrosion-resistant stainless steel material is easy to maintain and has a long service life.
Bidirectional Flow Measurement: Adopting bi-directional measurement system, easy to set the direction of flow measurement, making the measurement more convenient.

Dimension (unit: mm)

Insertion electromagnetic flow meter dimension

DN	a	bf	D	Do	n*A	Pressure Resistance
100	250	410	215	180	8*18	1.6 MPa
125	250	440	245	210	8*18
150	300	469	280	240	8*23
200	350	522	335	295	12*23
250	450	824	405	355	12*25
300	500	624	440	400	12*23	1 MPa
350	550	1029	500	460	16*23
400	600	737	565	515	16*25
450	600	786	615	565	20*25
500	600	839	670	620	20*25
600	600	944	780	725	20*30
700	700	1052	895	840	24*30
800	800	1164	1015	950	24*33
900	900	1264	1115	1050	28*33
1000	1000	1374	1230	1160	28*36
1200	1200	1589	1405	1340	32*33	0.6 MPa

Structure

Structure insertion electromagnetic flow meter

Tips: Why should maintain insertion electromagnetic flow meter?

The insertion electromagnetic flow meter is simple to operate, but long-term use will still make the electrode stain or damage, so to ensure the accuracy of measurement, regular maintenance of the insertion electromagnetic flowmeter is very necessary. For the plug-in electromagnetic meteor meter, each maintenance must be closed system, the liquid in the pipeline is emptied, can be disassembled.
