Foot Switch, 250V, 2NO2NC

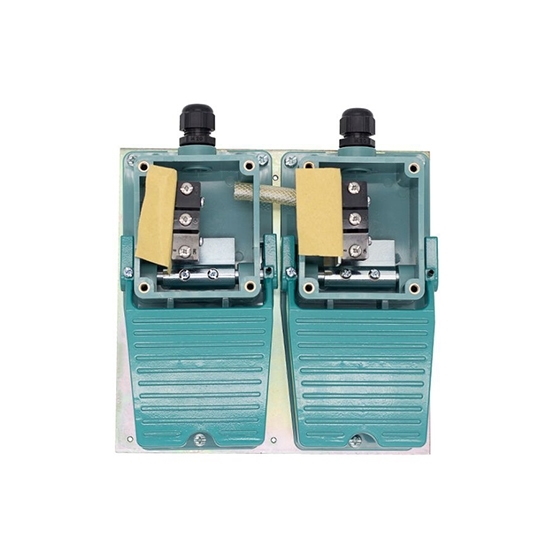

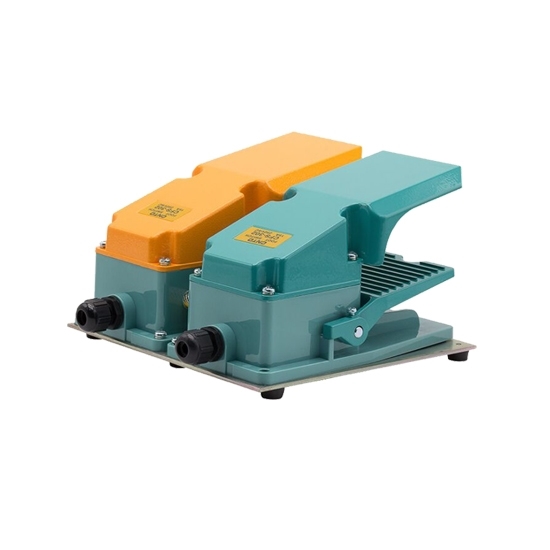

Foot switch with cheap price, which with momentary operation type, CMV-100D micro switch type. It is widely used in medical equipment, stamping equipment, welding equipment, textile equipment, and printing machinery.

Specification

NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

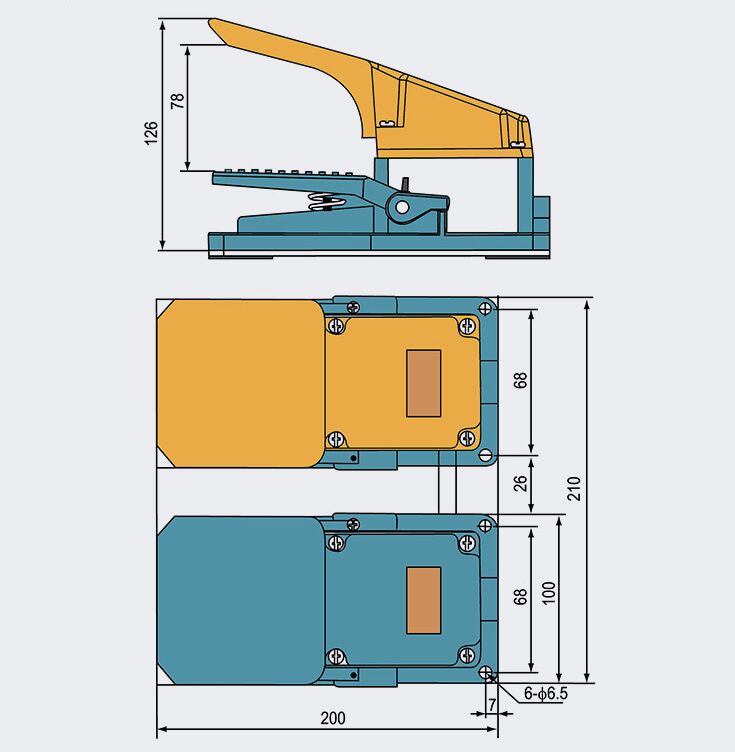

Dimension (unit=mm)

Tips:  Working Principle of Foot Switch.

A simple foot switch is actually a built-in travel switch, when the foot pedal gives a signal, the switch is executed. But in the field of welding, the function of the foot switch also plays a role in controlling the size of the output current. There is a micro switch inside the foot switch. The micro switch has 2 sets of contacts: normally open and normally closed. When the foot pedal is pressed to touch the micro switch, the normally open contact is closed and the normally closed contact is disconnected. The general application is to wire the normally open contact and use it as a foot switch.
