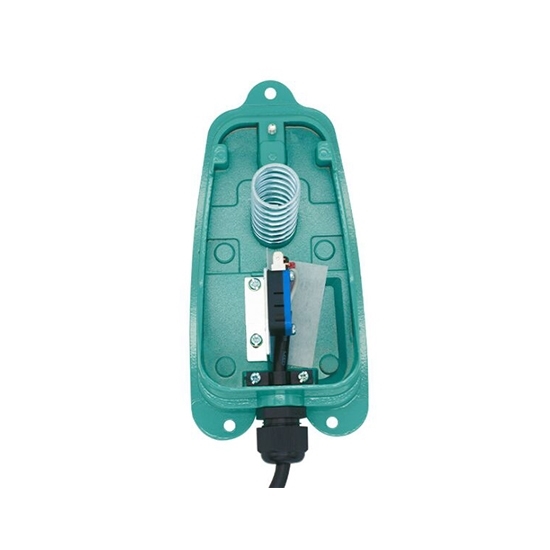

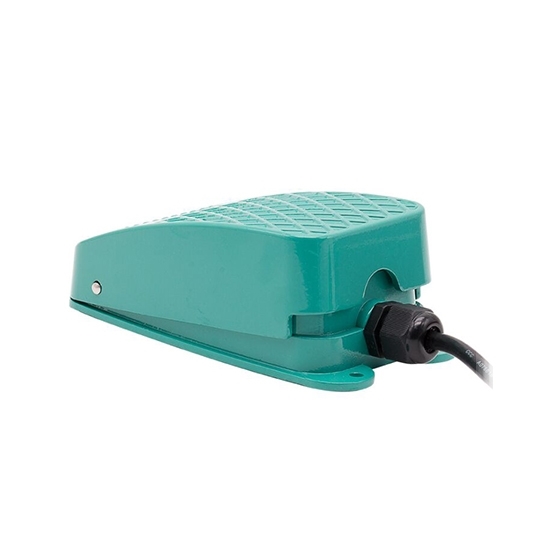

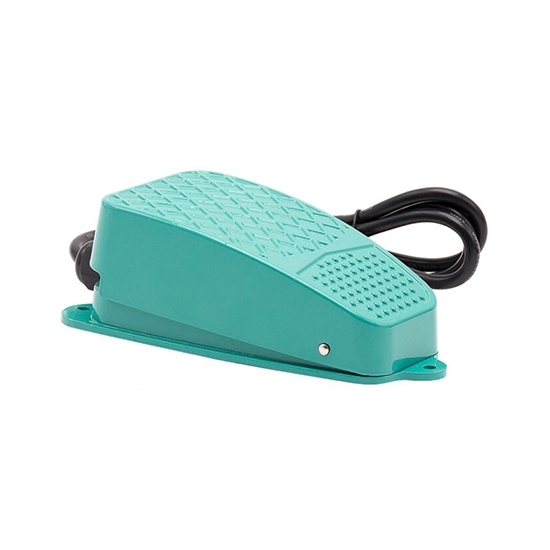

Foot Switch, 250V, 10A, 1NO1NC

Cost-effective foot pedal switch for sales, with rated voltage 250V, rated current 10 amp, contact 1NO1NC, action force 1.2kg. The foot pedal switch has advantages of light weight, simple operation and long service life.

SKU: CCHN-CFS-3

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

10A foot pedal switch with 0.75mm², 3C/ 0.5m, 1m-3m cable length, CMV-100D micro switch type, design with aluminum cast material and it has CE certificate.

Specification

Model	CCHN-CFS-3
Rated voltage	250V AC
Rated current	10A
Operation type	Momentary
Micro switch type	CMV-100D
Cable length	0.75mm², 3C/ 0.5m, 1m-3m
Contact	1NO1NC
Action force	1.2kg
Shell material	Aluminum Cast
Weight	0.51kg
Color	Green
Certificate	CE
Warranty	12 months

NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

Dimension (unit=mm)

Dimension of foot switch of CFS-3

Tips: Precautions of Foot Switch?

According to the nature of the load and the current value, please pay attention to the rated load of the product.
Please pay attention to short-circuit and open circuit of internal wiring during transportation and movement.
Please pay attention to the protection level of the product when it is used in places with a lot of water, oil, dust, etc.
Heavy pressure and impact are the direct causes of product damage, so please be careful when using it.
