32 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~80

32mm strain wave harmonic drive gearbox is designed for industrial robots, CNC equipment, medical instruments, military industry. Mini harmonic gearing has 30/50/80 gear ratios. Low price strain wave gear can provide harmonic gear reduction, but can also be used to increase rotation speed.

SKU: CCHN-HD-32

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low price 32mm harmonic drive is a strain wave gear that provides high transmission accuracy and supports a single-stage high reduction ratio with low inertia. The harmonic drive gearbox works with a 30/50/80 gear ratio, and is the simplest solution for your high-precision motion control applications.

Features

The lightweight strain wave harmonic drive gearbox has an ultra-thin hollow, compact and simple structure.
Excellent positioning accuracy and rotation accuracy.
Harmonic gearing with a high torque capacity and a high gear ratio is available.
Special for wrist joint robot.

Specifications

Model: CCHN-SHD-05
Diameter: 32 mm
Thickness: 10.5 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Input speed: 4000 rpm
Rated power: 0.1 kW
Output speed: 0~500 rpm
Available torque: 500 N.m
Number of stages: Double-stage
Gear ratio: 30, 50, 80, other gear ratios please contact us.

Parameters

Gear ratio	30	50	80
Rated torque when input 2000r/min (N.m)	0.30	0.44	0.72
Allowable peak torque at start and stop (N.m)	0.60	1.10	1.50
Maximum allowable average load torque (N.m)	0.45	0.60	1.00
Momentary allowable maximum torque (N.m)	1.10	2.00	2.80
Allowable maximum input speed (r/min)	10000
Allowable average input speed (r/min)	6500
Moment of inertia (1/4GD) (kgcm²)	2.5x10^-4
Arc seconds	≤20	≤10
Design life (hour)	10000

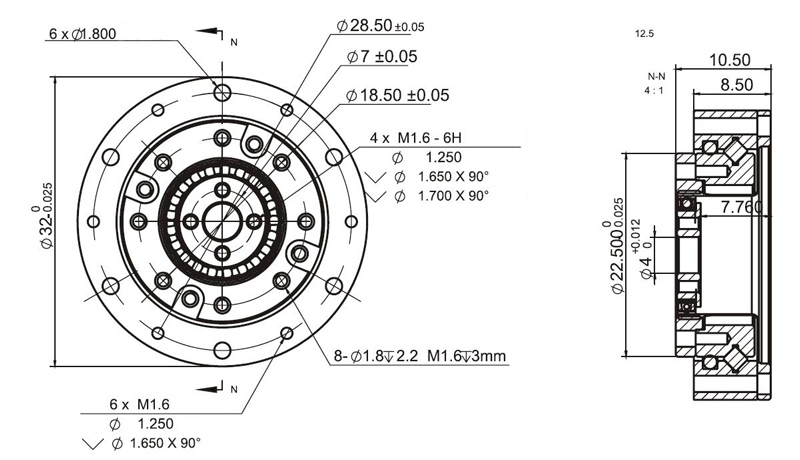

32mm strain wave harmonic drive gearbox dimensions (unit: mm)

32mm harmonic drive dimensions

Strain wave harmonic drive gearbox applications

Harmonic drive applications

Tips: The composition of gear transmission

Rigid wheel: rigid internal gear of harmonic drive usually 2 teeth more than the flexible wheel, usually fixed on the casing.
Flexible wheel: a thin cup-shaped metal elastic component with a gear on the outer ring of the opening, which deforms with the rotation of the wave generator, and is usually connected with the output shaft.
Wave generator: the wave generator of the harmonic drive consists of an elliptical cam and a flexible bearing, usually connected to the input shaft. The inner ring of the flexible bearing is fixed on the cam, and the outer ring can be elastically deformed into an ellipse through the ball.
