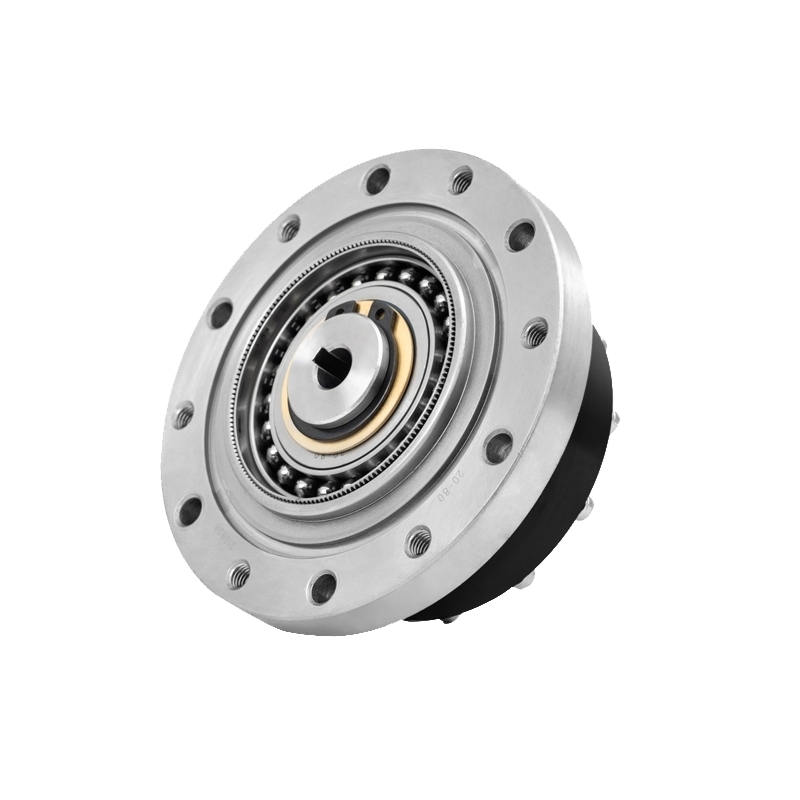

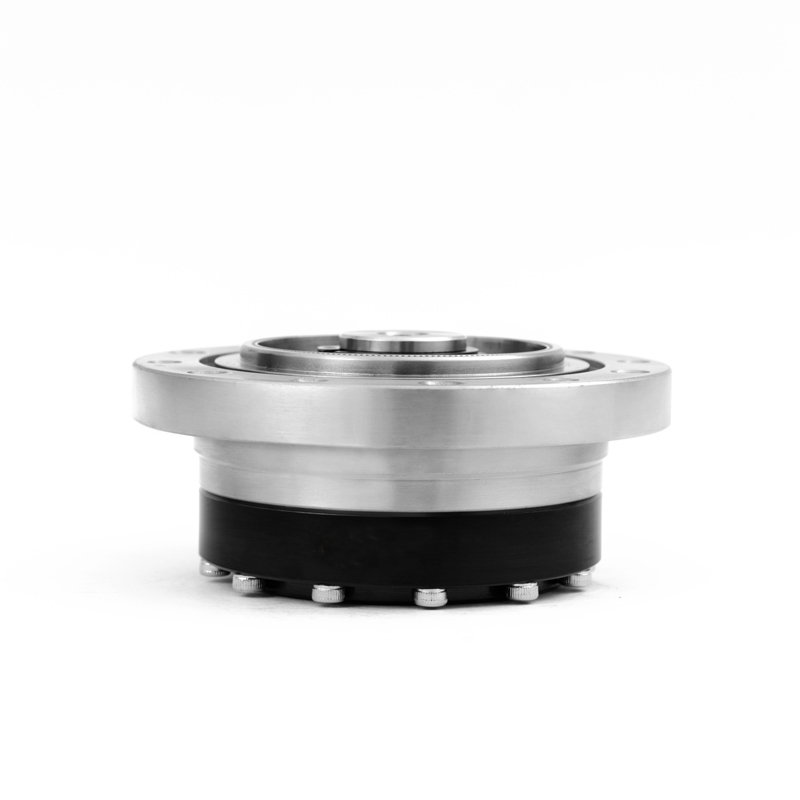

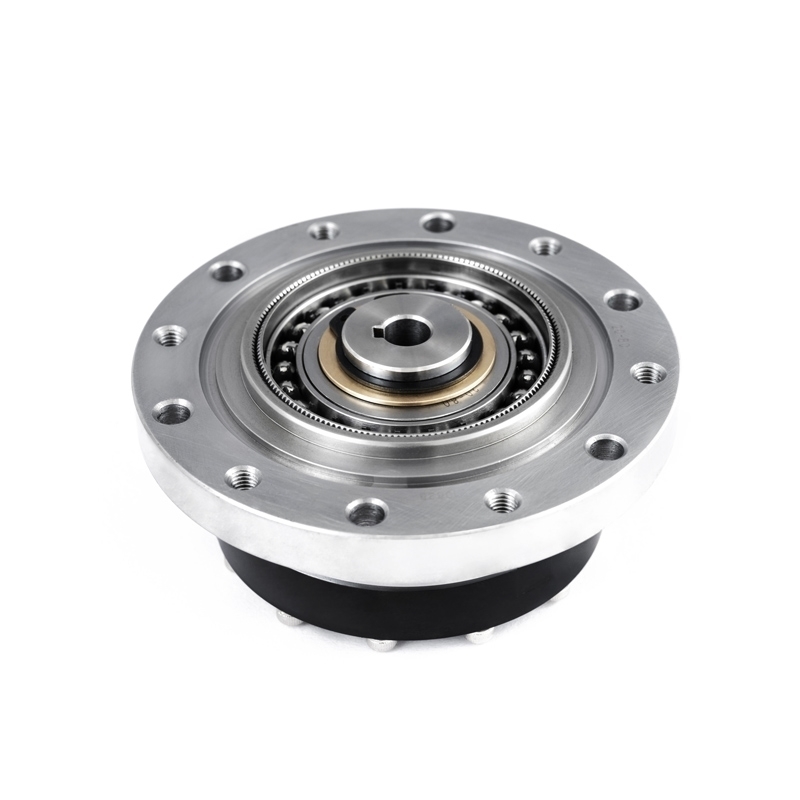

107 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

107 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

Wholesale price 107 mm strain wave harmonic drive gearbox is designed for industrial robots, CNC equipment, medical instruments, and the military industry. 30/50/80/100 gear ratios are available. Small strain wave gearbox can provide harmonic gear reduction, but can also be used to increase rotation speed.

SKU: CCHN-HD-107

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy a low price harmonic drive gearbox online. 30/50/80/100 gear ratio is provided. 107 mm harmonic reducer provides high transmission accuracy and supports a high reduction ratio with low inertia, commonly used for industrial robots, CNC equipment, medical instruments, and the military industry.

Features

It is a strain wave harmonic drive gearbox with high rigidity, no gear backlash and coaxial input and output.
The gearbox features excellent positioning accuracy and rotation accuracy.
Harmonic reducer with a high torque capacity and a high gear ratio is available.
107 mm strain wave gearbox is designed for robots.

Specifications

Model: CCHN-CSF-25-I
Type: Self-aligning
Diameter: 107 mm
Thickness: 52 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Input speed: 3500 rpm
Rated power: 0.1 kW
Output speed: 0~500 rpm
Available torque: 1~100 N.m
Gear ratio: 30, 50, 80, 100, other gear ratios please contact us.

Parameters

Gear ratio	30	50	80	100
Rated torque when input 2000r/min (N.m)	27	39	63	67
Allowable peak torque at start and stop (N.m)	50	98	137	157
Maximum allowable average load torque (N.m)	38	55	87	108
Momentary allowable maximum torque (N.m)	95	186	87	304
Allowable maximum input speed (r/min)	5500
Allowable average input speed (r/min)	3500
Arc seconds	≤20	≤20	≤10	≤10

Dimensions (unit: mm)

107mm harmonic drive gearbox dimensions.

Harmonic Drive Gearbox Applications

CCHN harmonic drive gearboxes can be used to optimize the shape of robots, increase precision, increase strength, improve flexibility, etc., and are widely used in industrial robots, numerical control equipment, medical instruments, military and other fields.

Harmonic drive applications

Tips: Types of the Harmonic Drive Gearbox

The harmonic reducer is to ensure that the equipment can reliably complete the task while reducing the speed and increasing the torque.

According to different structural forms, there are cup-type harmonic reducers, hat type harmonic reducers and other series.
According to special performance requirements, there are ultra-thin harmonic reducers, high torque harmonic reducers and other series.
