Inline Planetary Speed Reducer Gearbox

Planetary speed reducer gearboxes, inline, are available in variety of gear ratios stage 1 (1~10) & stage 2 (15~100) with frame sizes of 60mm, 90mm to 180mm. High precision, large output torque, compact structure, easy mounting and suitable for AC/DC servo motors, stepper motors, hydraulic motors.

SKU: CCHN-PSR-ZB

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Inline planetary speed reducer gearboxes vary in ratios with 1 and 2 stage planetary gear transmission, square flange design, convenient installation, high rigidity, high load capacity, long service life and manufacturer direct sales.

Specifications

Model	CCHN-ZB
Specifications	Stage	Ratio	060ZB	090ZB	115ZB	142ZB	180ZB
Rated Output Torque (Nm)	1	3	55	130	208	342	588
		4	50	140	290	542	1050
		5	60	160	330	650	1200
		6	55	150	310	600	1100
		8	50	140	300	550	1100
		9	45	120	260	500	1000
		10	40	100	230	450	900
	2	15	40	100	230	450	900
		20	55	130	208	542	588
		25	50	140	290	650	1050
		30	60	160	330	600	1200
		35	55	150	310	550	1100
		40	50	140	300	500	1100
		45	45	120	260	450	1000
		50	40	100	230	650	900
		60	60	160	330	600	1200
		70	55	150	310	550	1100
		80	50	140	300	500	1100
		90	45	120	260	342	1000
		100	40	100	230	450	900
Emergency Stop Torque (Nm)	1,2	3~100	3 times Rated Output Torque
Rated Input Speed (rpm)	1,2	3~100	5000	4000	4000	3000	3000
Maximum Input Speed (rpm)	1,2	3~100	10000	8000	8000	6000	6000
Standard Return Accuracy P2 (arcmin)	1	3~10	≤5	≤5	≤5	≤5	≤5
Standard Return Accuracy P2 (arcmin)	2	15~100	-	≤7	≤7	≤7	≤7
Torsional Rigidity (Nm/arcmin)	1,2	3~100	7	14	25	50	145
Allowable Radial Force (N)	1,2	3~100	1530	3250	6700	9400	14500
Allowable Axial Force (N)	1,2	3~100	760	1625	3350	4700	7250
Service Life (hr)	1,2	3~100	20000*
Efficiency (%)	1	3~10	≥97%
Efficiency (%)	2	15~100	≥94%
Weight (kg)	1	3~10	1.3	3.7	7.8	14.5	29
Weight (kg)	2	15~100	1.5	4.1	9	17.5	33
Operating Temperature (℃)	1,2	3~100	-10℃~+90℃
Lubrication	1,2	3~100	Synthetic Grease
Protection Level	1,2	3~100	IP65
Installation Direction	1,2	3~100	Any Direction
Noise Value at a Distance of 1m (dB(A) (n1, =3000rpm, No Load)	1,2	3~100	≤58	≤60	≤63	≤65	≤67

Note: Please contact us for customized high precision.

Moment of Inertia of the Planetary Gearbox

Specifications	Stage	Ratio	060ZB	090ZB	115ZB	142ZB	180ZB
Moment of Inertia (kg.cm²)	1	34	0.16	0.61	3.25	9.21	28.98
		5	0.14	0.48	2.74	7.54	23.67
		6	0.13	0.47	2.71	7.42	23.29
		7	0.13	0.45	2.65	7.25	22.75
		8	0.13	0.45	2.62	7.14	22.48
		9	0.13	0.44	2.58	7.07	22.59
		10	0.13	0.44	2.57	7.04	22.53
	2	15	0.13	0.44	2.57	7.03	22.51
		20	0.03	0.13	0.47	2.71	7.42
		25	0.03	0.13	0.47	2.71	7.42
		30	0.03	0.13	0.47	2.71	7.42
		35	0.03	0.13	0.47	2.71	7.42
		40	0.03	0.13	0.47	2.71	7.42
		45	0.03	0.13	0.47	2.71	7.42
		50	0.03	0.13	0.47	2.71	7.42
		60	0.03	0.13	0.44	2.57	7.03
		70	0.03	0.13	0.44	2.57	7.03
		80	0.03	0.13	0.44	2.57	7.03
		90	0.03	0.13	0.44	2.57	7.03
		100	0.03	0.13	0.44	2.57	7.03

Note: Please contact us for the corresponding drawings before placing your order!

Dimension (Unit: mm)

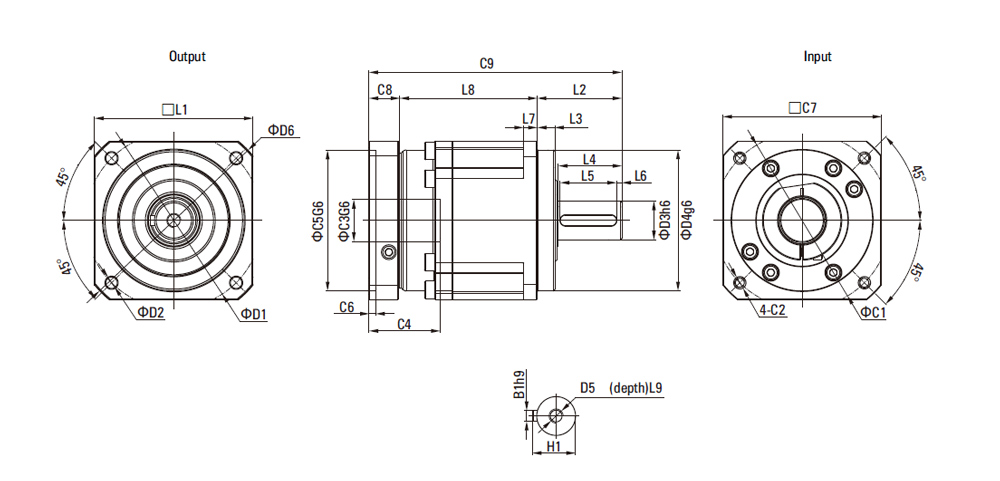

(Stage 1, Reduction Ratio i=3~10) Planetary gearbox dimension

Size	060ZB	090ZB	115ZB	142ZB	180ZB
D1	70	100	130	165	215
D2	5.5	6.6	9	11	13
D3h6	16	22	32	40	55
D4	50	80	110	130	160
D5	M5x0.8P	M8x1.25P	M12x1.75P	M16x2P	M20x2.5P
D6	80	116	152	185	240
L1	60	90	115	142	180
L2	37	48	65	97	105
L3	7	10	12	15	20
L4	28	35.5	51	79	82
L5	25	32	40	70	70
L6	2	2	5	4	6
L7	6	8	10	15	20
L8	65.5	78	101.5	119.5	154
L9	12.5	19	28	36	42
C1	70	100	130	165	215
C2	M5x0.8P	M6x1P	M8x1.25P	M10x1.5P	M12x1.75P
C3	*≤14/≤16	≤19/≤24	≤32	≤35/≤38	≤42/≤48
C4	35	40.5	51	60	85
C5	50	80	110	130	180
C6	8	4	5	6	6
C7	60	90	115	142	190
C8	19.5	17.5	20	22.5	29
C9	122	143.5	186.5	239	288
B1	5	6	10	12	16
H1	18	24.5	35	43	59

Dimension (Unit: mm)

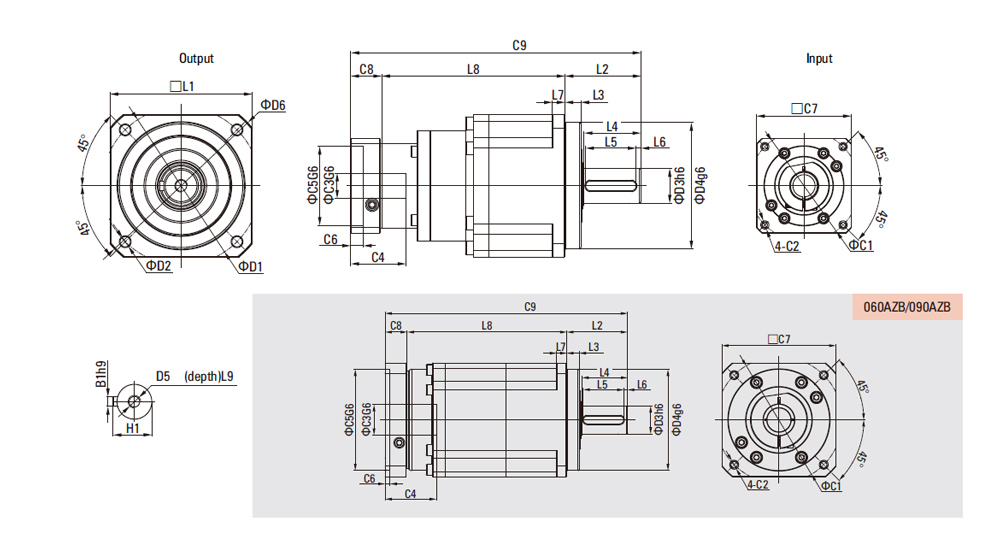

(Stage 2, Reduction Ratio i=15~100) Planetary gearbox dimension

Size	090ZB	115ZB	142ZB	180ZB
D1	100	130	165	215
D2	6.6	9	11	13
D3	22	32	40	55
D4	80	110	130	160
D5	M8x1.25P	M12x1.75P	M16x2P	M20x2.5F
D6	116	152	185	240
L1	90	115	142	180
L2	48	65	97	105
L3	10	12	15	20
L4	36	51	79	82
L5	32	40	70	70
L6	3	5	4	6
L7	8	10	15	20
L8	116	143	169.5	207.5
L9	19	28	36	42
C1	70	100	130	165
C2	M5x0.8P	M6x1P	M8x1.25P	M10x1.5F
C3	≤14/≤15.875/≤16	≤19/≤24	≤32	≤35/≤38
C4	35	40	50	60
C5	50	80	110	130
C6	8	4	5	6
C7	60	90	115	142
C8	19.5	17.5	12.5	22.5
C9	183.5	225.5	283.5	335
B1	6	10	12	16
H1	24.5	35	43	59

Tips: What is planetary speed reducer?
The planetary speed reducer is a kind of transmission mechanism. Its structure includes an internal gear ring in close contact with the gearbox case. A sun gear driven by the external power lies in the center of the ring gear. Between the sun gear and ring gear, there is a planetary gear set consisting of three gears equally built-up at the planet carrier, which is floating among them relying on the support of the output shaft, ring gear and sun gear. When the sun gear is actuated by the input force, the planetary gear can be driven to rotate and along with the orbit of the internal gear ring revolves around the center. The rotation of the planet gears drives the output shaft connected with the carrier to output the force.
