200W Horizontal Axis Wind Turbine, 12V/24V

Small horizontal axis wind turbine power 200W, rated voltage can choose 12V or 24V, it can be used in wind solar hybrid streetlight, boat and your home.

Specification:

200W Wind Turbine Power Curve

Dimensions
Features
1. The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
2. Easy to install, tube or flange connection is optional.
3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

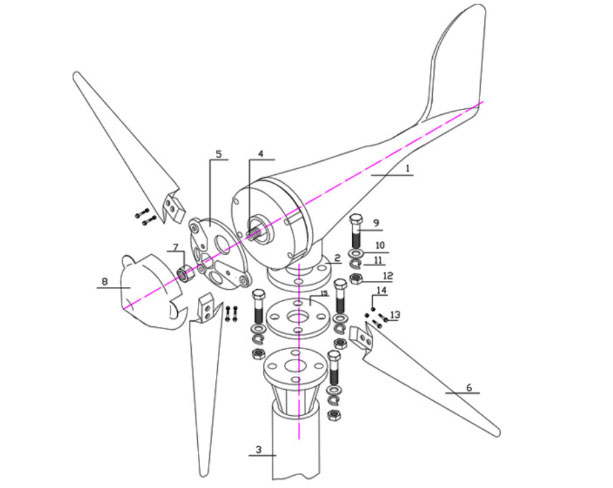

200W Wind Turbine (Flange Seat) Exploded View

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

Tips: Advantages of wind turbine

Wind energy resources are inexhaustible, the use of wind power can reduce environmental pollution, save coal, oil and other conventional energy. Wind power generation technology is mature, relatively low cost in renewable energy, has broad prospects for development. Wind power generation technology can be applied flexibly. It can be connected to the grid or operated independently from the grid. It can also be combined with other energy technologies to form complementary power generation systems. Small wind turbines can provide electricity for production and living in remote areas.
