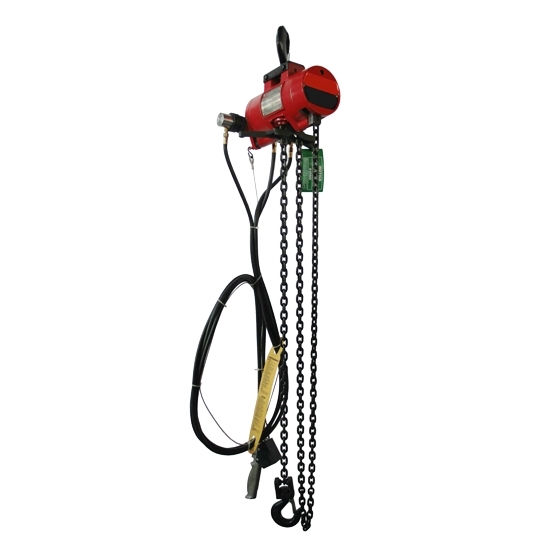

300 lb. 10 ft. Air Chain Hoist

Designed for heavy load lifting, 300 lb. cap. 10 ft. lift air chain hoist with spring-loaded vanes for ultimate load control. Air inlet 3/8 NPT, air exhaust 1/2 NPT, this pneumatic block chain hoist is used for lifting and moving heavy loads.

SKU: CCHN-ACH-30010

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Compact 300 lb. cap. 10 ft. lift air operated chain hoist is used for lifting and moving heavy loads in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.

Specification

Air Chain Hoist	Model	CCHN-29HX84
	Capacity	300 lb. (0.15 ton)
	Lift	10 ft.
	Lift Speed	0 to 84 fpm
	Min Between Hooks	15 1/4 in.
	Reeving	1
	Housing L	12 1/8 in.
	Housing W	10 3/16 in.
	Chain Length	11' - 5", 22' - 7"
	Air Pressure Recommended	90 psi
	Air Consumption	48 SCFM at 90 psi
	Suspension	Hook
	Control	Pendant Throttle
	Air Inlet Size	3/8 NPTF
	Air Supply Hose	1/2 I.D. min.
	Air Exhaust	1/2 NPTF
	Net Weight (Basic Hoist)	36 lbs (16.5 kg)
Metal Chain Containers	Model	CCHN-29HX91
	Chain Lift	Single 20 ft.
	Width	4.5 in.
	Height	12 in.

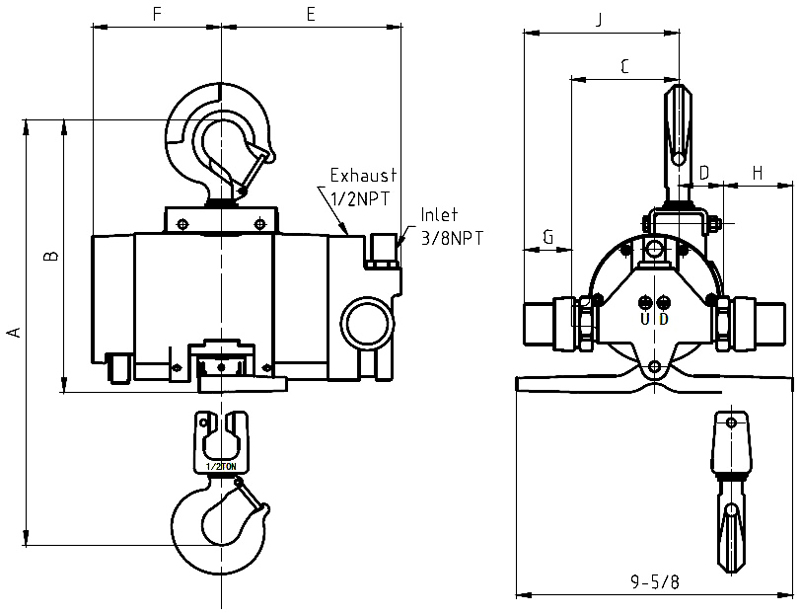

Dimensions (Unit: mm)

Dimension of 300 lb air chain hoist

Tips: Types of air chain hoist

Blade type air chain hoist
Current commonly used air chain hoist with a load of 250kg-30 tons, is divided into fixed type and running type. It adopts durable drum brake to achieve safe braking. It is lightweight and easy to carry, and has low noise and vibration. Factories, textiles, warehousing and other occasions.
Gear type air chain hoist
The load is from 3 tons to 100 tons. The disc brake is used, which is easy to maintain, automatically adjusts the braking gap, and has anti-corrosion performance. And the gear type pneumatic hoist is suitable for humid and dusty environments, and has strong durability.
Piston type air chain hoist
The load is 5 tons to 20 tons, and it can reach 80 tons. It adopts high-torque piston motor, automatic, multi-disc, oil-bath motor brake, and can be used with large single-arm crane.
