Mini Electric Wire Rope Hoist, 100kg/200kg/500kg/1000kg

Mini electric wire rope hoist is a compact, efficient lifting tool used for handling light to moderate loads in various industrial and residential applications. ATO small electric cable hoist with 12m/20m/30m wire rope, offers load capacities of 100kg/200kg/500kg/1000kg for tasks like lifting tools, materials, and equipment in workshops, warehouses, and construction sites.

SKU: CCHN-MEH-1000KG

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Mini electric wire rope hoist with 100kg to 1000kg load capacity features a robust wire rope for secure lifting, powered by an electric motor, which is used for tasks that require frequent lifting with minimal effort. This electric cable hoist is often used in workshops, garages, small construction sites, and manufacturing units.

Specification

Model	CCHN-PA200	CCHN-PA300	CCHN-PA400	CCHN-PA500	CCHN-PA600	CCHN-PA800	CCHN-PA1000	CCHN-PA1200
Power	510W	650W	850W	1050W	1200W	1450W	1800W	2400W
Voltage	220V
Wire Rope Length (Optional)	12m/20m/30m
Wire Rope Diameter	3mm	3mm	4mm	4mm	4mm	5mm	6mm	6mm
Wire Control Handle Cable	3m
Lifting Height	Single Hook: 12m
Lifting Height	Double Hook: 6m
Lifting Speed	Single Hook: 12m/min
Lifting Speed	Double Hook: 6m/min
Recommended Floor	1-4 Floors
Recommended Lifting	Daily Necessities			Home Decoration		Building Decoration

Rated Load Capacity (Optional)

Model	12m	20m	30m
CCHN-PA200	Single Hook: 100kg Double Hook: 200kg	Single Hook: 70kg Double Hook: 140kg	Single Hook: 30kg Double Hook: 60kg
CCHN-PA300	Single Hook: 150kg Double Hook: 300kg	Single Hook: 100kg Double Hook: 200kg	Single Hook: 50kg Double Hook: 100kg
CCHN-PA400	Single Hook: 200kg Double Hook: 400kg	Single Hook: 100kg Double Hook: 150kg	Single Hook: 100kg Double Hook: 200kg
CCHN-PA500	Single Hook: 250kg Double Hook: 500kg	Single Hook: 190kg Double Hook: 380kg	Single Hook: 120kg Double Hook: 240kg
CCHN-PA600	Single Hook: 300kg Double Hook: 600kg	Single Hook: 200kg Double Hook: 400kg	Single Hook: 150kg Double Hook: 300kg
CCHN-PA800	Single Hook: 400kg Double Hook: 800kg	Single Hook: 300kg Double Hook: 600kg	Single Hook: 200kg Double Hook: 400kg
CCHN-PA1000	Single Hook: 500kg Double Hook: 1000kg	Single Hook: 400kg Double Hook: 800kg	Single Hook: 300kg Double Hook: 600kg
CCHN-PA1200	Single Hook: 600kg Double Hook: 1200kg	Single Hook: 500kg Double Hook: 1000kg	Single Hook: 400kg Double Hook: 800kg

Details

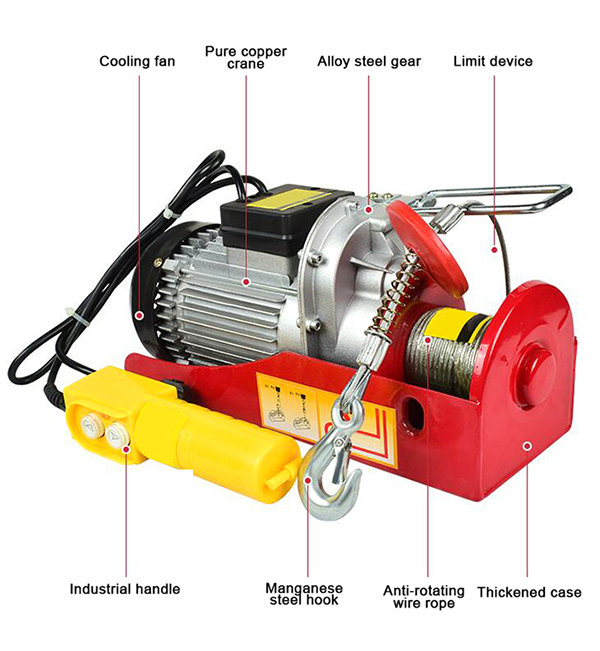

Mini wire rope electric hoist details

Applications

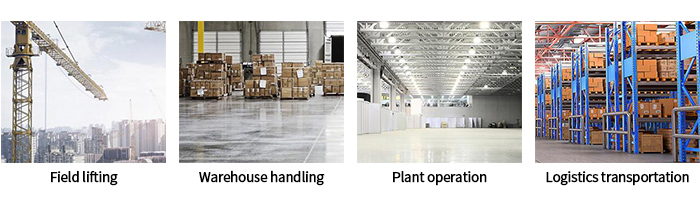

Mini electric hoist applications

Tips: Mini electric wire rope hoist applications

Mini electric wire rope hoists are versatile lifting tools widely used across various industries. They are ideal for light to medium-duty applications, such as in workshops, garages, and small-scale construction sites, where lifting and moving equipment, machinery, or materials is required. These hoists are also commonly employed in warehouses for handling inventory, loading and unloading goods, and organizing storage spaces efficiently. In manufacturing, they assist in assembly lines and production processes by lifting and positioning parts and components. Additionally, mini electric wire rope hoists are used in maintenance tasks, such as repairing heavy equipment or performing building maintenance where accessibility is a challenge. Their compact size, portability, and ease of installation make them suitable for confined spaces and temporary setups, providing a cost-effective solution for various lifting needs without requiring extensive infrastructure.
