22AWG Hook-Up Wire, UL1430, 300V, 2000 ft

22AWG Hook-Up Wire, UL1430, 300V, 2000 ft

22AWG stranded hook-up wire meets UL 1043 standard for tinned copper wire, 300V rated voltage, 2000 ft. /roll. Available in different colors of PVC outer cover for insulation. Electrical wire is commonly used in commercial wiring applications.

SKU: CCHN-UL1430-22

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		CCHN-UL1430-22
UL Style		1430
Size		22 AWG
Rated Voltage		600V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		105 ℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 17/ 0.16mm
Conductor Resistance 20℃		59.40 Ω/Km
Conductor Diameter		0.76mm
Insulation		PVC
Insulation Thickness	Nom.	0.38mm
	Min.	0.33mm
Overall Diameter	Average	1.52mm
	Tolerance	±0.10mm
Package		2000 ft/roll
Weight		3.5kg

Details

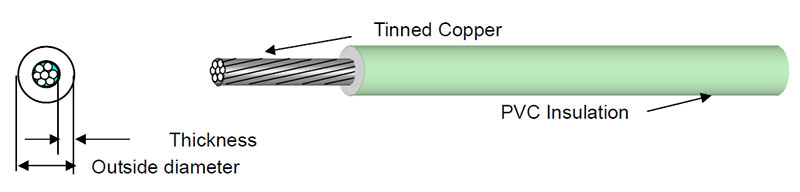

Details of UL1430 22AWG Isulated Copper Wire
