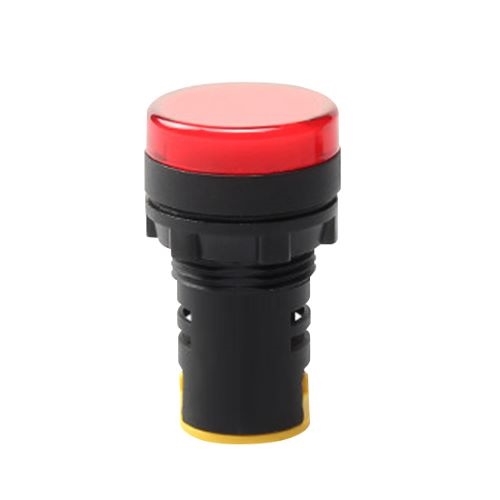

Red 5V LED Indicator Light

Low cost 5V led indicator light, rated voltage 5V AC/DC, waterproof IP40, solid color high brightness LED chip, protect eyes, color red, yellow, blue, green and white optional, voltage of indicator light can be customized.

SKU: CCHN-IL-5V

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low price sale round LED indicator light, red color, 5V AC/DC rated voltage 20mA, easy to use, LED display, a variety of colors are available, other voltages can be customized. It is compact in size and has a simpler connection between the operating parts and switch components, ensuring the product's service life and reliability while making installation more convenient.

Specification

Model	CCHN-AD56-22DS
Hole Size	M22mm
Voltage	5V AC/DC
Color	Red, green, blue, yellow, white
Protection Class	IP40
Contact Resistance	≤ 50mΩ
Insulation Resistance	≥ 2MΩ
Allow voltage fluctuations	±10%
Usage frequency	AC50-60Hz
Material	Solid color high brightness LED chip
Operating Temperature	-25℃~+55℃
Working Humidity	≤98% RH
Class of Pollution	Ⅲ
Continuous working life	≥30000 times
Weight	25g

Red Led Indicator Light Dimension (unit: mm)

Dimensions of indicater light

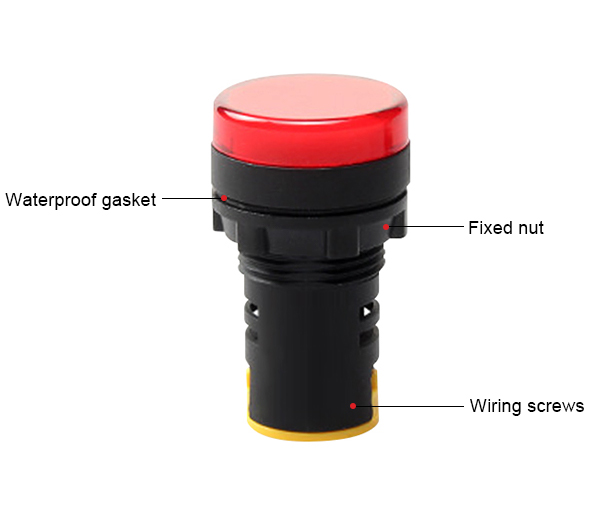

Commodity information

Tips for using indicator light

Please use within the electrical rating. If it is used beyond the rated value, it will not only shorten the durability of the switch, but may also cause dangers such as heat generation and burnout, including the instantaneous voltage during opening and closing. Please use the current within the range of rated voltage and rated current.
