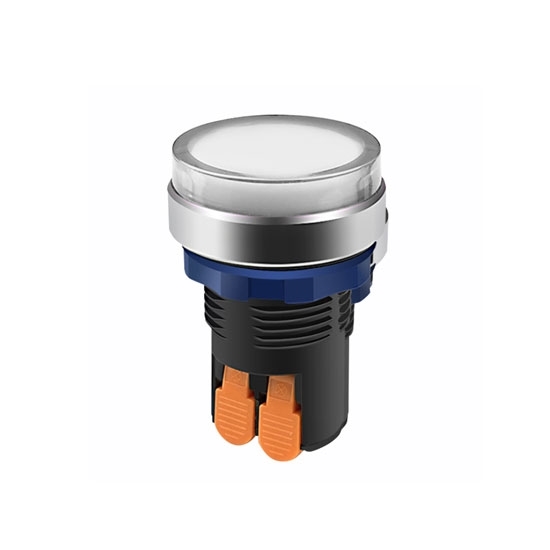

Green 12V Led Indicator Light

12 Volt green indicator lamp, available in yellow, white, red and blue, soft LED light display, not dazzling, good waterproof effect, convenient connection and reliable connection. Other voltages can be customized, long service life time, easy to use.

SKU: CCHN-IL-12V

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Led round indicator light for sale, 12V AC/DC rated voltage, 12 months warranty, available in four colors: green, yellow, red, white and blue. Widely used in textile equipment and operating room mounting panels, machines and consoles or ships.

Specification:

Model	CCHN-IL-12V
Hole Size	M22mm
Voltage	12V AC/DC

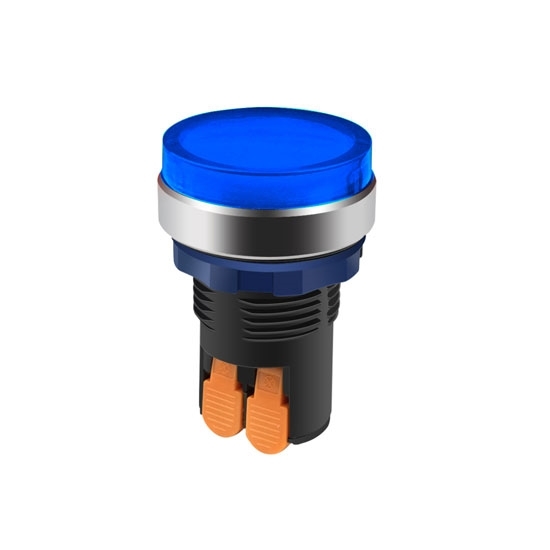

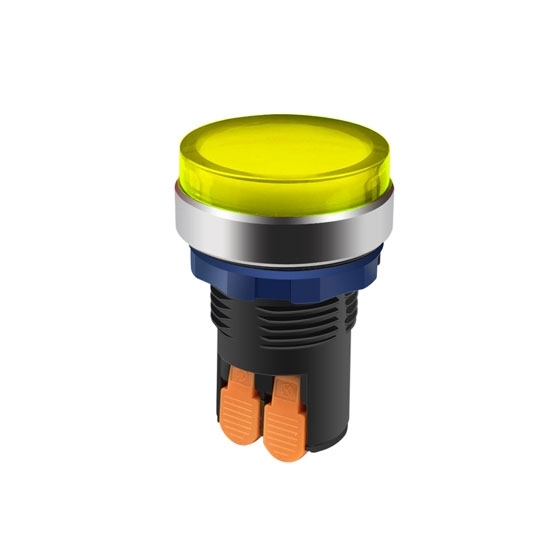

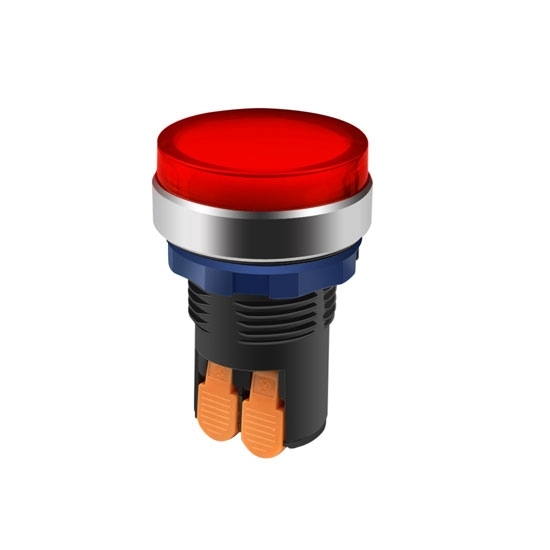

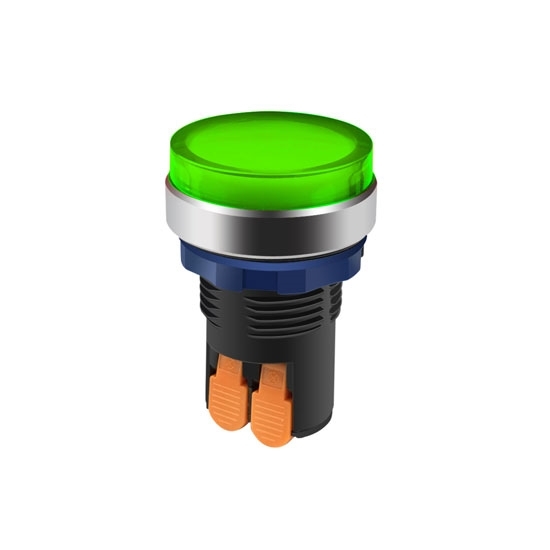

Color	Red, green, blue, yellow, white
Rated Current	≤24V, ≤20mA, ＞24V, ≤10mA
Protection Class	IP68
Heating Current	25A
Contact Resistance	≤ 50mA
Insulation Resistance	≥ 1000MΩ
Shell Material	PC Plastic
Head Material	PC Plastic
Nut Material	Flame retardant PA66
Base Material	Flame retardant PA66
Head Coil	Aluminum oxide natural color
Operating Temperature	-40℃~80℃
Working Humidity	45~90% RH
Panel Thickness	≤8mm
Electrical Life	50,000 times
Mechanical Life	1 Million times
Weight	25.5g
Warranty Period	12 Months

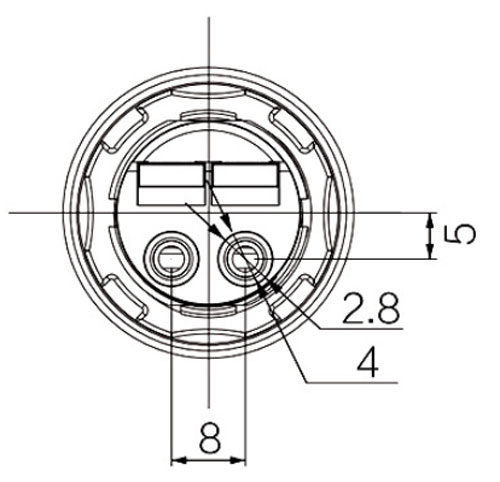

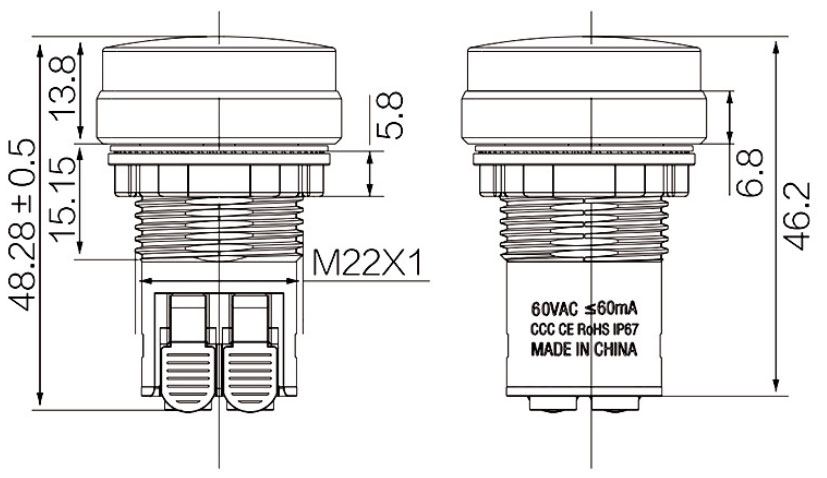

12V LED Indicator Light Dimension (unit: mm)

Tips: Indicator light characteristics

1. Ultra-short flat round lampshade.
2. Indicator lamp has built-in super bright LED lamp beads.
3. Wide power supply voltage is resistant to vibration, shock resistant, safe and reliable.
4. Concealed terminal blocks.
5. Small size, ultra-low energy consumption.
6. Convenient wiring, safe and reliable.
