48V Led Indicator Light

48V AC/DC indicator LED light for switchboard, solid color high brightness LED chip, compact size, ultra-low power consumption, easy to use, achieve one second wiring, yellow, blue, white, green and red are optional, compact size, ultra-low power consumption, other voltages can be customized.

SKU: CCHN-IL-48V

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

LED indicator lights for panels, rated voltage 48V AC/DC, rated current 20mA, high brightness LED display, small size, light weight, IP40.

Specification

Model	CCHN-AD56-22DS
Hole Size	M22mm
Voltage	48V AC/DC
Color	Red, green, blue, yellow, white
Protection Class	IP40
Contact Resistance	≤ 50mΩ
Insulation Resistance	≥ 2MΩ
Allow voltage fluctuations	±10%
Usage frequency	AC50-60Hz
Material	Solid color high brightness LED chip
Operating Temperature	-25℃~+55℃
Working Humidity	≤98% RH
Class of Pollution	Ⅲ
Continuous working life	≥30000 times
Weight	25g

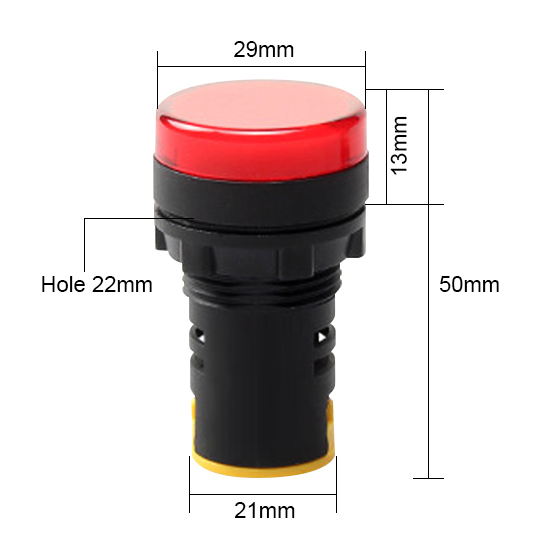

48V LED Indicator Light Dimension (unit: mm)

Indicator light dimension

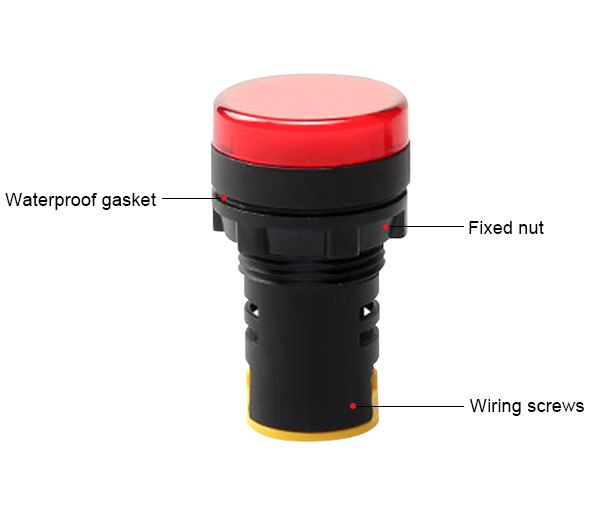

Commodity information

Tip: Application of indicator light

The sturdy led indicator light is very suitable for extremely harsh outdoor environments, and is widely used in industrial machinery, instrument control panels, maritime/oil/gas industries, security and outdoor applications, and transportation dashboards.
