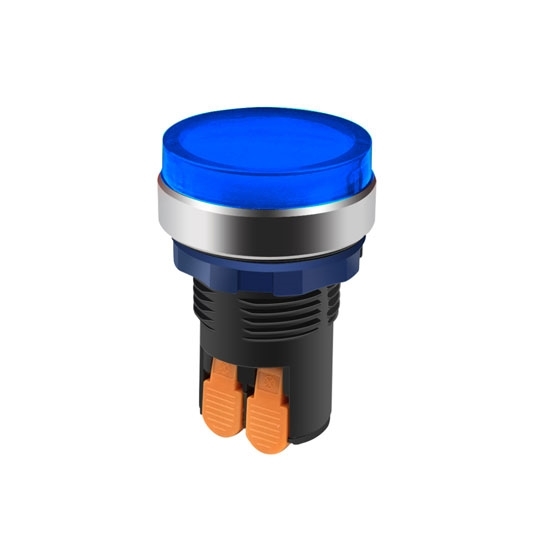

Blue 24V Led Indicator Light

LED indicator lamp rated voltage 24V AC/DC, hole size 22mm, rated current 20mA, easy to identify LED, soft lighting, no eye damage, high quality flame retardant enclosure, 12 months warranty, 110V LED indicator light can be customized.

SKU: CCHN-IL-24V

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

24V LED indicator light for low price, 20mA rated current, mechanical life time of one million times, IP68, high waterproof level, can choose blue, red, yellow, green and white indicator lamp.

Specification:

Model	CCHN-IL-24V
Hole Size	M22mm
Voltage	24V AC/DC

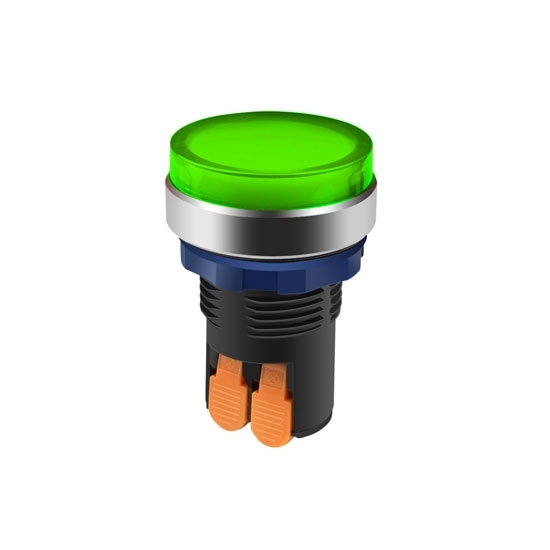

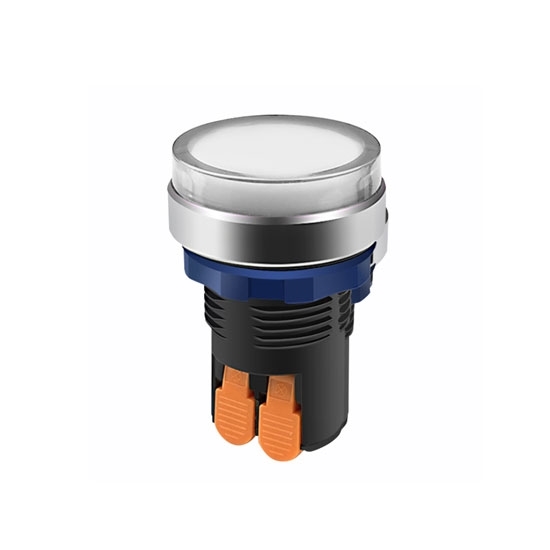

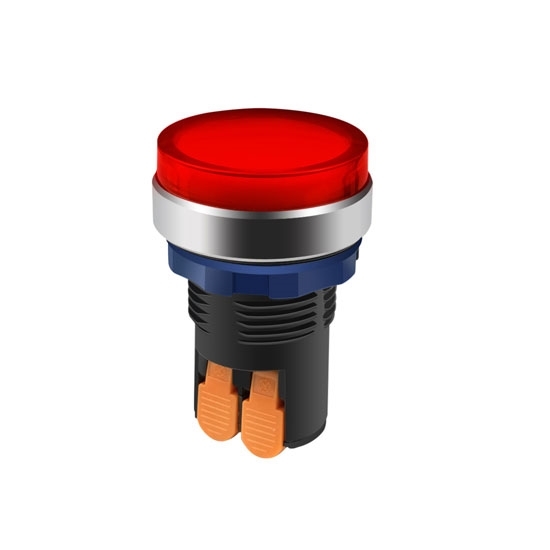

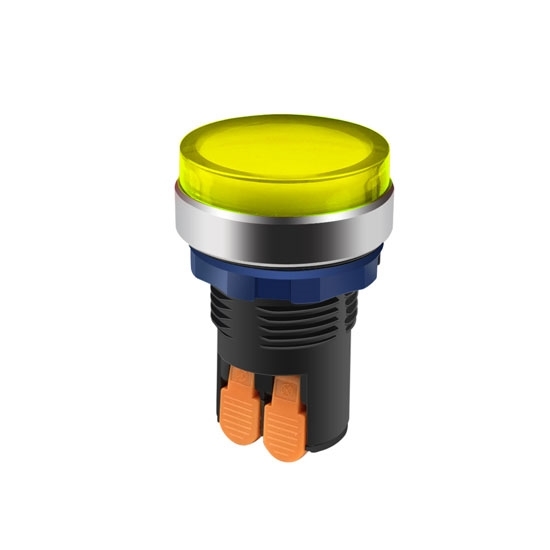

Color	Red, green, blue, yellow, white
Rated Current	≤24V, ≤20mA, ＞24V, ≤10mA
Protection Class	IP68
Heating Current	25A
Contact Resistance	≤ 50mA
Insulation Resistance	≥ 1000MΩ
Shell Material	PC Plastic
Head Material	PC Plastic
Nut Material	Flame retardant PA66
Base Material	Flame retardant PA66
Head Coil	Aluminum oxide natural color
Operating Temperature	-40℃~80℃
Working Humidity	45~90% RH
Panel Thickness	≤8mm
Electrical Life	50,000 times
Mechanical Life	1 Million times
Weight	25.5g
Warranty Period	12 Months

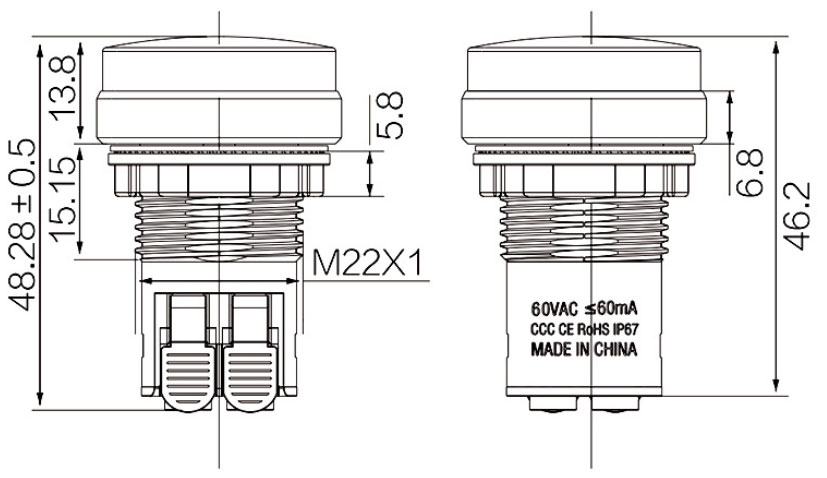

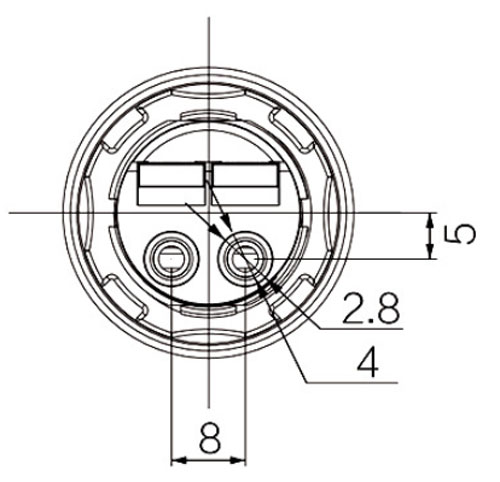

24V LED Indicator Light Dimension (unit: mm)

Tips: Use environment of indicator light

In order to prevent terminal discoloration and other deterioration of the indicator light during storage, please avoid long-term storage and use in the following conditions.
1. In high temperature and humidity.
2. Corrosive gas environment
3. Places exposed to direct sunlight.
For the opening of mounting holes, please refer to the opening sizes of different switches. When opening according to the actual switch sample, there should be a certain margin. Non-waterproof switch. Please avoid the setting and use of water contact places. Please do not allow the switch to freeze and dew.
