White 220V Led Indicator Light

White indicator lamps for panels, 220V AC/DC voltage, 22mm hole size, high brightness LED display, soft not dazzling, safe to use. Widely used in electricity, communications, machine tools, motors, household appliances, etc.

SKU: CCHN-IL-220V

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

220V Led pilot light hole size 22mm, rated current 10mA, soft and bright, uniform and not dazzling, IP68, simple to use and easy to connect, a variety of colors can be selected.

Specification:

Model	CCHN-IL-220V
Hole Size	M22mm
Voltage	220V AC/DC
Color	Red, green, blue, yellow, white
Rated Current	≤24V, ≤20mA, ＞24V, ≤10mA
Protection Class	IP68
Heating Current	25A
Contact Resistance	≤ 50mA
Insulation Resistance	≥ 1000MΩ
Shell Material	PC Plastic
Head Material	PC Plastic
Nut Material	Flame retardant PA66
Base Material	Flame retardant PA66
Head Coil	Aluminum oxide natural color
Operating Temperature	-40℃~80℃
Working Humidity	45~90% RH
Panel Thickness	≤8mm
Electrical Life	50,000 times
Mechanical Life	1 Million times
Weight	25.5g
Warranty Period	12 Months

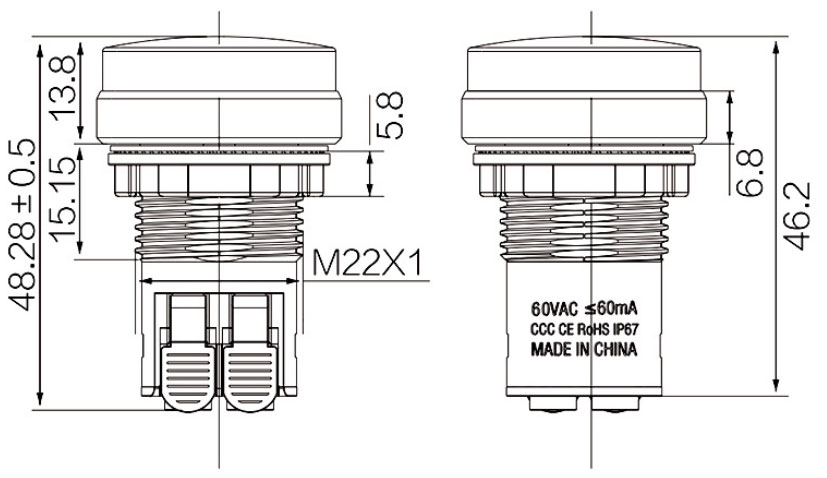

220V LED Indicator Light Dimension (unit: mm)

Tips: What is the meaning of the color of the indicator light in the application of electrical control?

Indicator light using different colors to show the tension of the circuit, abnormal, normal, mandatory, monitoring and other different working status, so different colors of the indicator light, what is the meaning? Red means emergency, indicating dangerous situation, yellow means abnormal, indicating abnormal situation, emergency critical situation, green means normal, indicating normal situation, blue means mandatory, indicating that the operator needs action. The meaning of white is undefined, can be used in red, yellow, blue, green applications, when in doubt.
