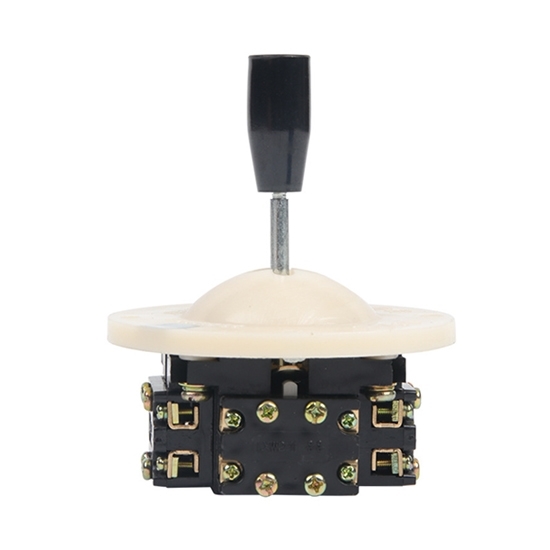

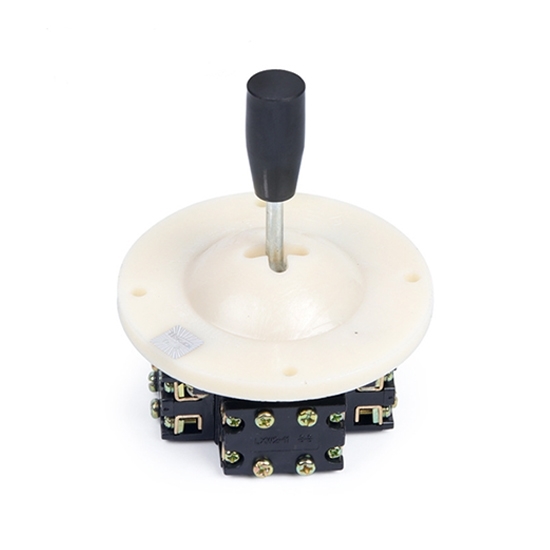

Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A

Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A

Cost-effective joystick switch for sales, featuring 4NO4NC, with 150V/ 250V/ 600V rated voltage, 15A/ 10A/ 4A rated current, 71mm hole diameter. It is widely used in factory equipment, instrumentation, marine equipment, medical equipment, CNC lathes, and oil extraction.

SKU: CCHN-JS-HKA1-1

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Factory price joystick switch features 10-15A opertaing current, 600V insulation voltage, which with self-cleaning function and modular structure.

Specification

Model	CCHN-HKA1-1
Type	4 way self-locking/ 4NO4NC
Rated voltage	150V/ 250V/ 600V
Rated current	15A/ 10A/ 4A
Hole diameter	71mm
Operating current	10-15A
Insulation voltage	600V
Insulation resistance	100MΩ
Operating pressure	5-20N
Contact resistance	200Ω
Operating temperature	0℃-85 ℃
Operation method	Emergency
Installation size	22mm
Panel thickness	2-5mm
Reset method	Manual control
Certificate	CCC
Warranty	12 months

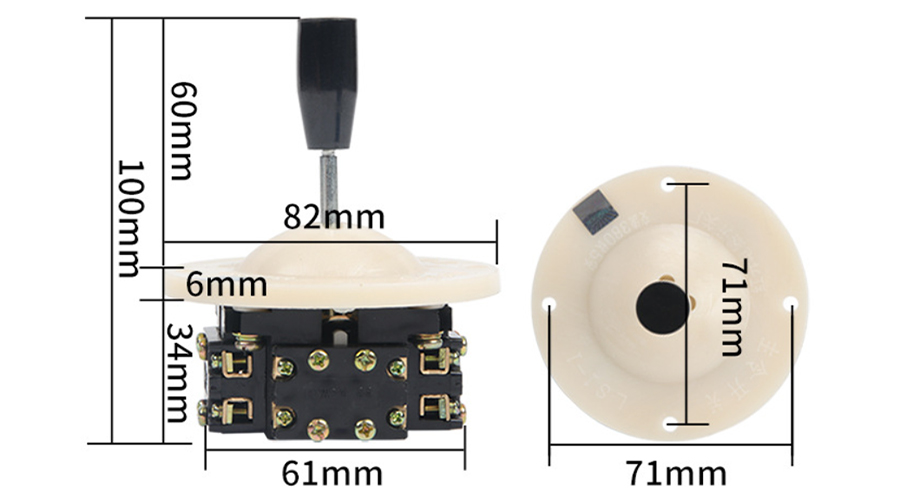

Dimension (mm)

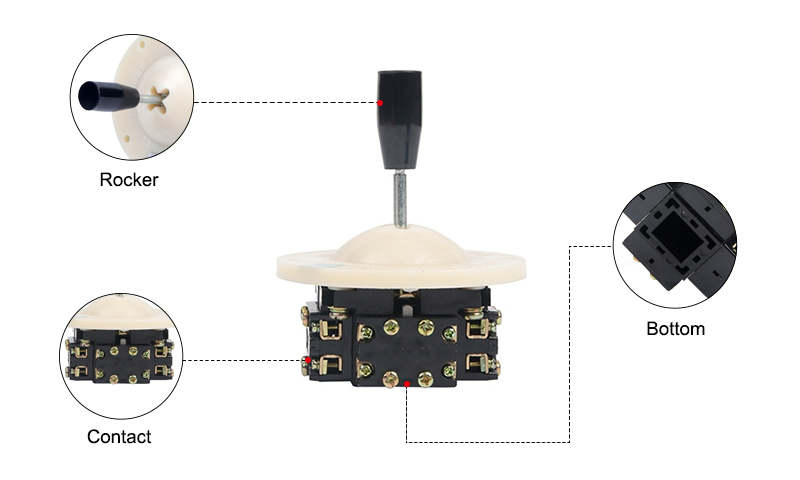

Details

Tips: Conditions of Using Joystick Switch.
1. Ambient air temperature
(1) The upper limit of ambient air temperature is +40℃, and the average value within 24h does not exceed +35℃.
(2) The lower limit of ambient air temperature is -5℃.
The ambient air temperature refers to the ambient air temperature near the main switch, and for the master switch with a shell, it refers to the ambient air temperature near the shell.
2. altitude
The altitude of the installation site does not exceed 2000m.
