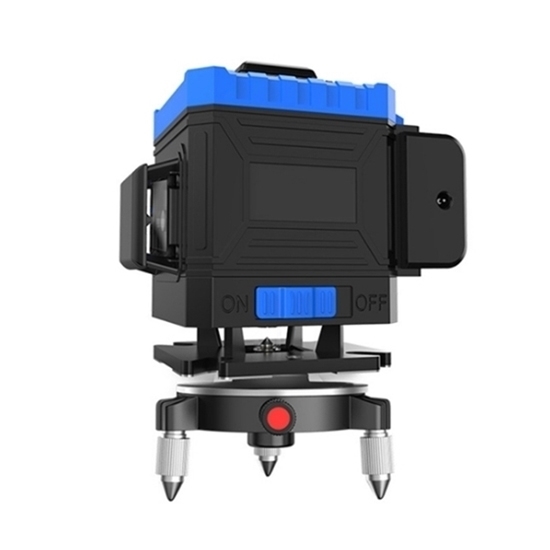

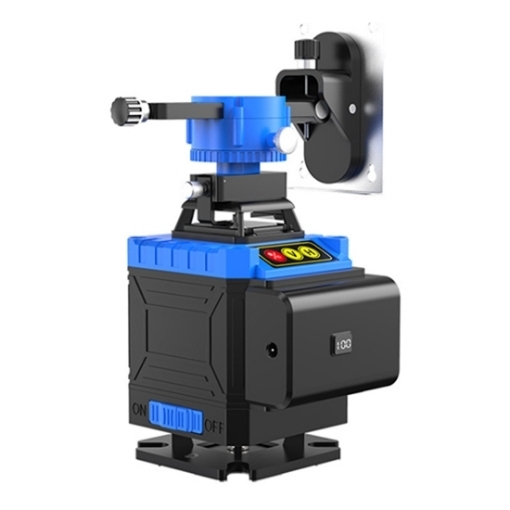

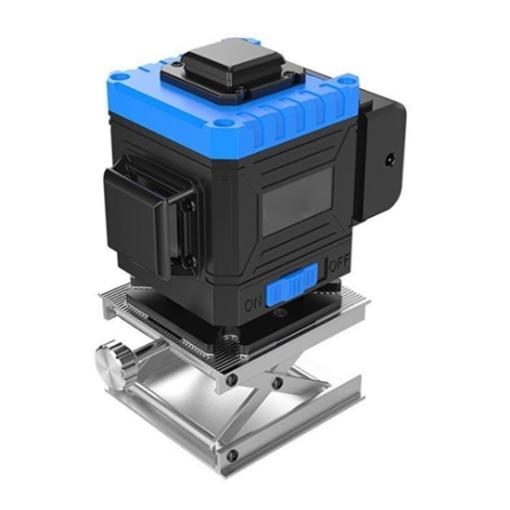

Rotary Green Laser Level, 16 Line, 360 Degree

Rotary Green Laser Level, 16 Line, 360 Degree

High accuracy green beam laser level with 8 vertical line, 8 horizontal line and 10 crossing line, IP54 waterproof rating. The green laser can rotate 360 degrees to cover the floor, walls, and ceiling of the entire room so it is perfect for home decorating, hanging murals, laying floors, painting, and more.

SKU: CCHN-LL-16

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Rotary laser level allows 360° free rotation of the rotary laser level and projection of the laser line at any position or angle. CCHN green laser level takes upgraded diode and chip tech with bright, clear, focused green lines laser, more accurate and reliable than traditional line drawing methods.

Specification

Model	CCHN-SL-16
No.of Laser Lines	16
Leveling Type	8 vertical line, 8 horizontal line, 10 crossing line
Laser Wavelength	635nm
Self-Leveling Range	±3°
Launch Angle	≥120°
Horizontal Accuracy	5m±1mm
Vertical Accuracy	5m±1mm
Plumb Dot Accuracy	±1mm at 1.5m
Line Width	2mm
Line Color	Emerald green
Power Supply	2 x 5800mA rechargeable lithium battery (72 hours standby)
IP Rating	IP 54
Operation Temperature	-10℃~50℃
Battery Type	Digital LCD rechargeable lithium battery (8 hours standby)
Function Key	Fingerprint touch buttons
Wall Distance	7mm
Ground Distance	6mm
Laser Head	Made in Germany
Working Time	12 hours
Outdoor Visible Distance	About 15m
Remote Control	Yes
Slash Mode	Yes
Weight	3kg

Packing List

1 x 8 Line Green Laser Level
2 x 5800mA Lithium Battery
1 x Power Adapter
1 x Magnetic Bracket
1 x Adjustable Lifting Platform
1 x Magnetic Pivoting Base
1 x Hand-shell Carrying Case
1 x Remote Control
1 x Conversion Screw
1 x User Manual

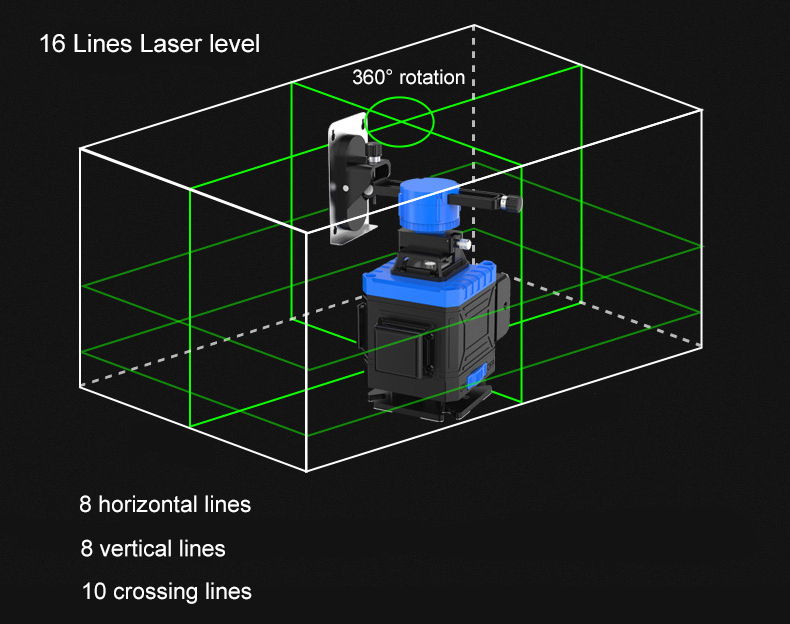

16 Line Laser Level Diagram

Details

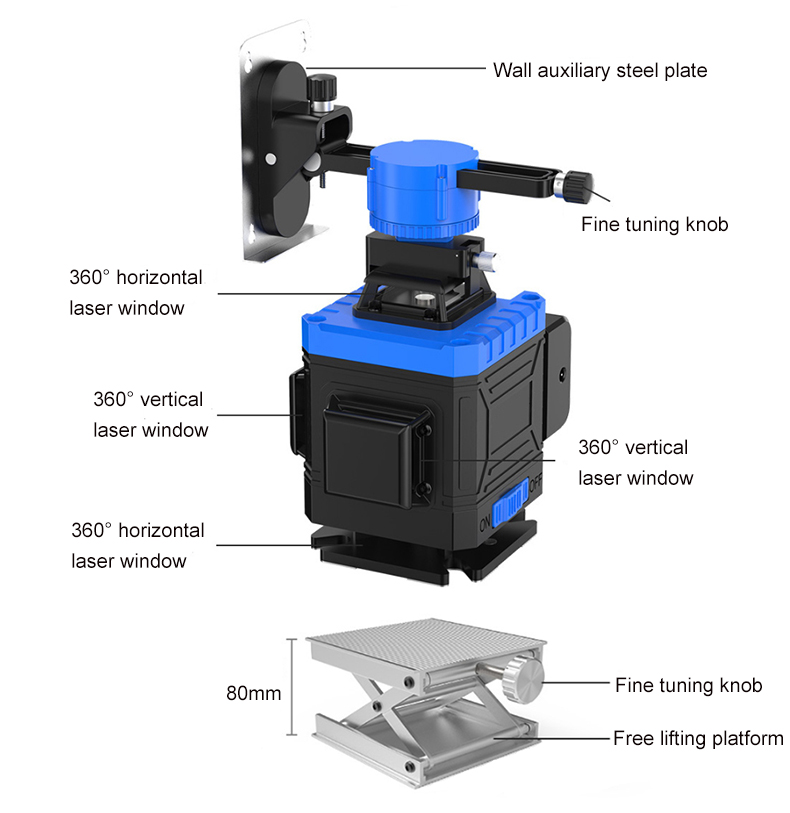

Rotary laser level detail

Application

CCHN high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

Rotary laser level application

Tips: How to select the right laser level?

Verticality: Because the verticality determines the angle difference after laser emission, the angle difference will affect the horizontal size.
Launch angle: Laser is also a kind of light source, any light source that emits light will have a light angle. Therefore, when selecting, under the same distance condition, the smaller the emitted light spot, the higher the accuracy.
The firmness of the structure: The firmness of the structure determines whether the laser level is easily damaged during storage and use, even after it is dropped to the ground. If it is not easy to damage, it depends on whether it will affect the overall frame structure. Otherwise, it will be broken after using it several times, or it will be checked frequently.
